Badger Meter

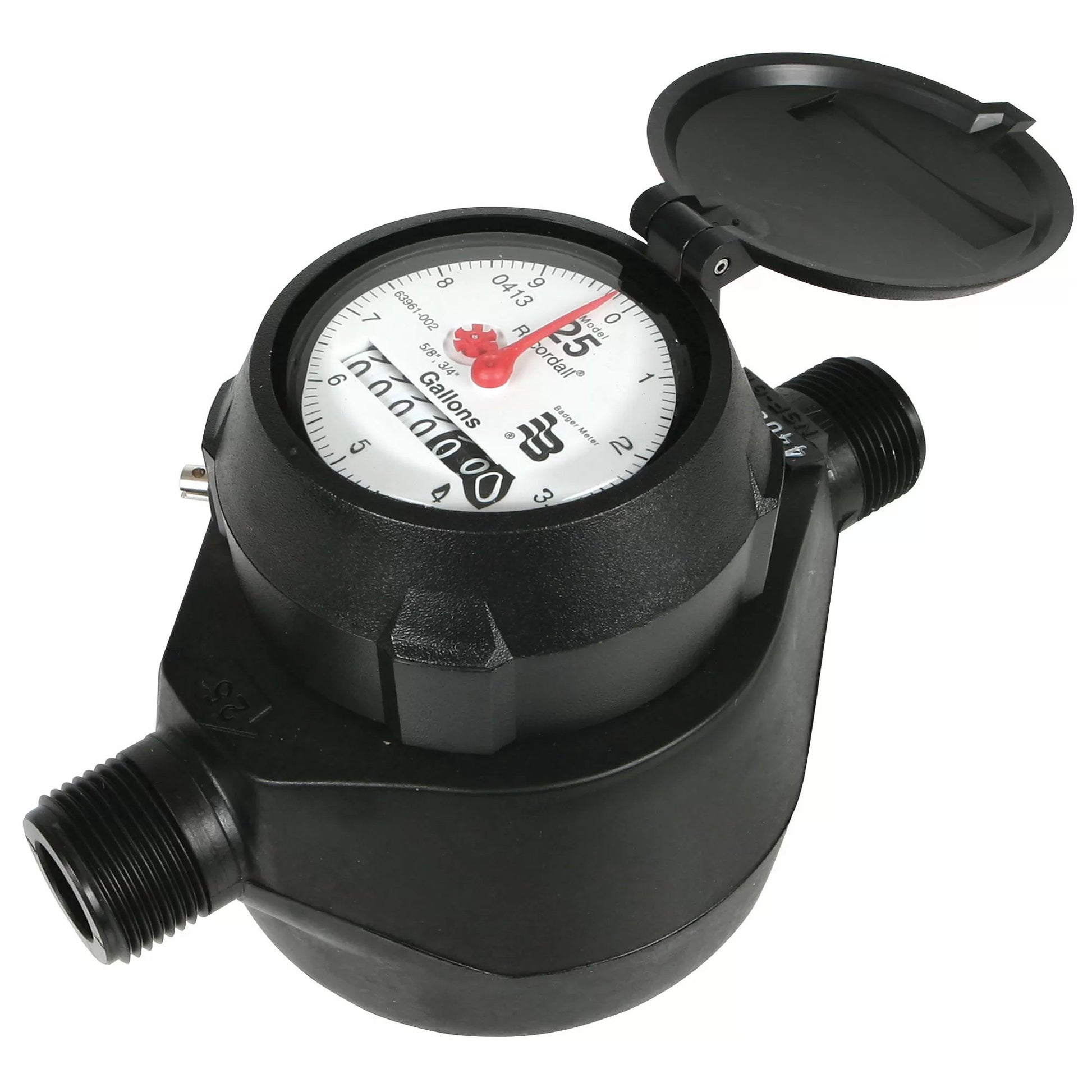

Recordall® 3/4" Mechanical Water Meter

QC Part #120491 | MFR # UM1-0001-8288
$159 99
$159 99
Sale Sold out

Type

Without Pulser With Pulser

View full details
View Related Items
Serving agriculturesince 1982

Serving agriculture
since 1982

Over 40 years supporting producers and ag operations

Talk toreal people

Talk to
real people

U.S – based customer service team

Product expertiseyou can use

Product expertise
you can use

Support from people who know the products and how they're used.

U.S owned andoperated

U.S owned and
operated

Proudly based in Schuyler, Nebraska

Straightforwardreturns

Straightforward
returns

Clear policies and support when you need it

Description
Q&A
Documents

More about Recordall® 3/4" Mechanical Water Meter

Monitor swine and poultry house drinking lines with a 3/4" Recordall RTR Mechanical Water Meter. Designed to measure potable cold water with a one direction flow. Includes a straight reading, permanently sealed magnetic drive.

Recordall Specifications

  • Transmitter/Register: Straight reading, permanently sealed magnetic drive
  • Low Flow (Min 95%): 1/4 GPM
  • Typical Operating Range: 1/2 to 25 GPM
  • Max. Continuous Operation: 15 GPM
  • Pressure Loss @ Max. Continuous Operation: 4.2 PSI @ 15 GPM
  • Max. Operating Temperature: 80° F
  • Max. Operating Pressure: 150 PSI
  • Measuring Element: Nutating disc, positive displacement
  • Register Type: Straight reading, permanently sealed magnetic drive standard. Remote reading or Automatic Meter Reading units optional
  • Register Capacity: 1,000,000 gal. 6 odometer wheels
  • Meter Connections: Available in bronze and Engineered Polymer to fit 5/8" spud thread bore diameter sizes

Also available: Recordall 3/4" Digital Water Meter with Pulser, QC Part #120490

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
o
orchard
worked great

Fit exact for the replacement job I was doing.

J
JH
Great

Works great. Just plan ahead and know the full length of the meter plus connector nipples to make sure you have space for all. QC Supply or manufacture should state over all length of fully assembled product.
