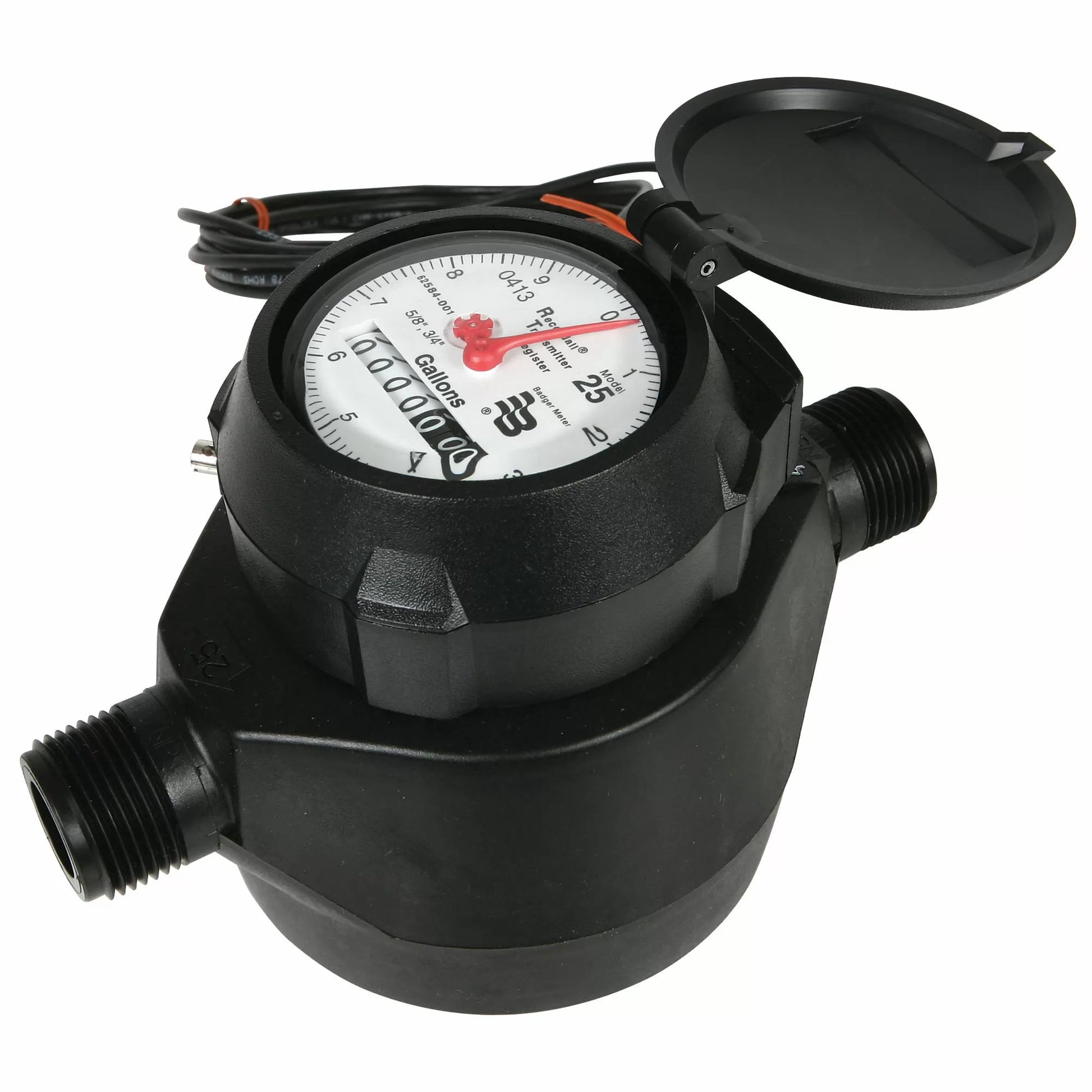

Recordall® 3/4" Digital Water Meter With Pulser

Monitor your swine and poultry house drinking lines with the Recordall 3/4" Digital Water Meter with Pulser. The Recordall Transmitter Register (RTR) provides output compatibility with ORION, GALAXY, Itron ERT and other Badger Meter-approved AMR technology solutions. This allows you to read the meter remotely.

Digital Meter Specifications:

• Unit of Measure: U.S. gallons clearly identified on register face
• Number Wheels: Six with 3/16 high numerals font type
• Test Circle: 360 circle with 10 major increments with 10 divisions each
• Power Source: External

Recordall Specifications:

• 1 pulse per 1 gallon of water
• Transmitter/Register: Straight reading, permanently sealed magnetic drive
• Low Flow (Min 95%): 1/4 GPM
• Typical Operating Range: 1/225 GPM
• Max. Continuous Operation: 15 GPM
• Pressure Loss @ Max. Continuous Operation: 4.2 PSI @ 15 GPM
• Max. Operating Temperature: 80 F
• Max. Operating Pressure: 150 PSI

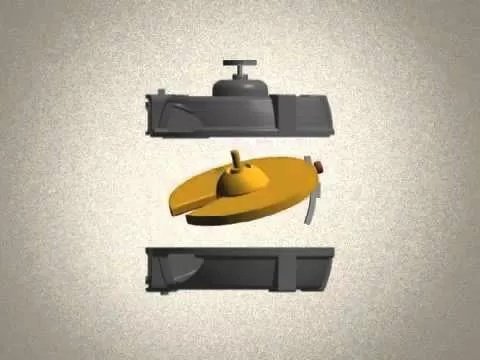

• Measuring Element: Nutating disc, positive displacement
• Register Type: Straight reading, permanently sealed magnetic drive standard. Remote reading or Automatic Meter Reading units optional.
• Register Capacity: 1,000,000 gal. 6 odometer wheels
• Meter Connections: Available in bronze and engineered polymer to fit 5/8 spud thread bore diameter sizes

Also Available:Recordall 3/4" Mechanical Water Meter, QC Part #120491, sold separately.
