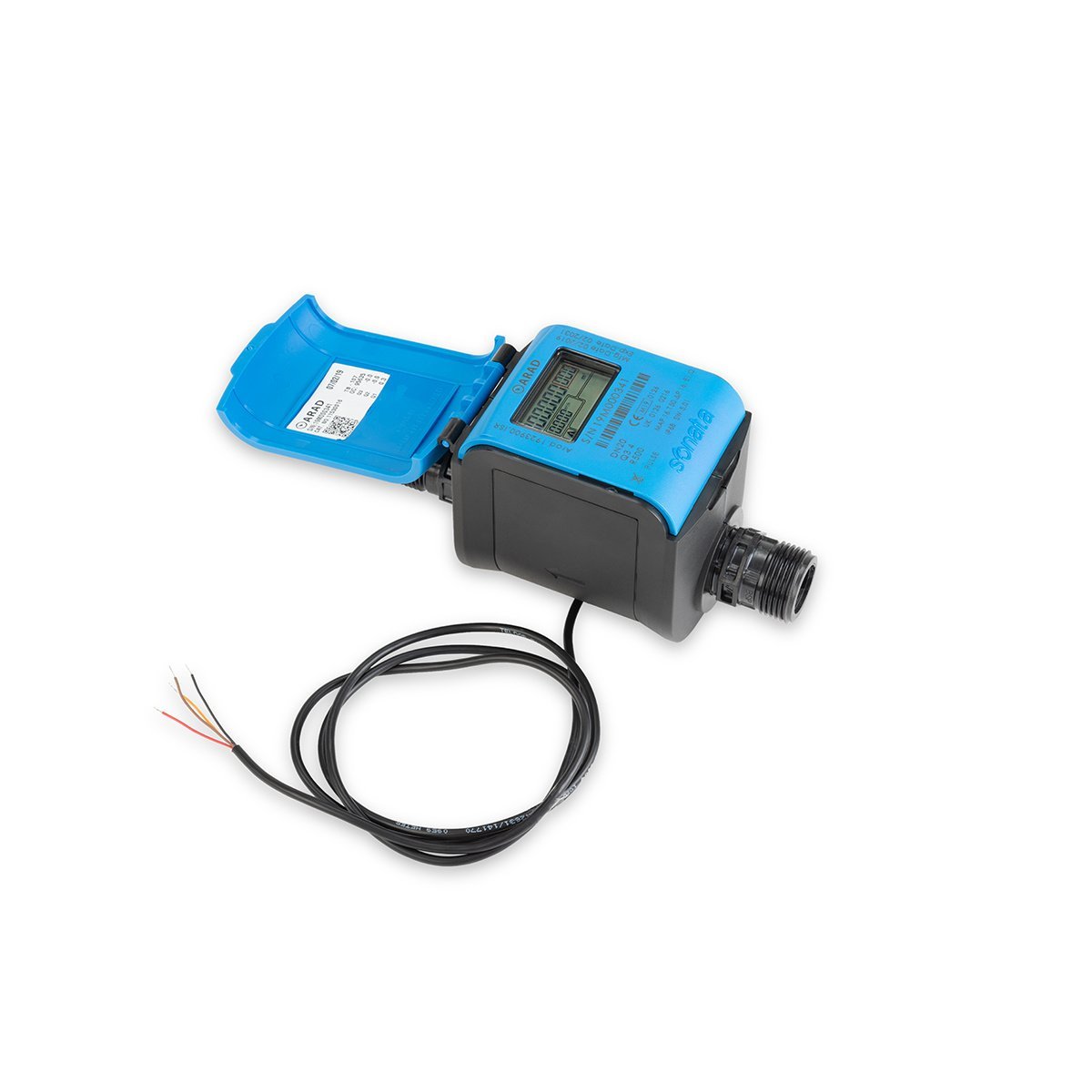

Sonata Dual Pulse Water Meters with Coupler

The Sonata Dual Pulse Water Meter is an advanced and highly accurate ultrasonic water meter for agricultural applications. With no moving parts, the Sonata’s design ensures reliable and long-lasting precision. The Sonata is an excellent solution for addressing extremely low volume and flow. The see-through flow design creates an obstacle-free water passage, minimizing pressure loss over the meter

The Sonata has no moving parts, and its body is made of durable PPS composite. This robust design makes the Sonata maintenance-free and highly precise throughout its battery lifespan of up to 10 years

Features & Benefits

• Registers low volume at 0.05 GPM
• Supplies dual 1 & 10 pulse output
• Allows independent dual output connection
• Durable plastic housing
• Design creates obstacle-free passage
• Displays current flow rate in gallons per minute

Technical Specifications

• Maximum Working Pressure 200 PSI
• Maximum Water Temperature 120°F
• Body PPS, highly reinforced composite material
• Washdown Rating IP68

Installation Requirements

• The meter can be installed in any position (horizontal, vertical or inclined)
• Prior to the installation of a new meter, the pipeline must be flushed.

Sizes Available:

• 3/4", QC Part #DIV73WMS01
• 1", QC Part # DIV73WMS02
