Marathon Electric

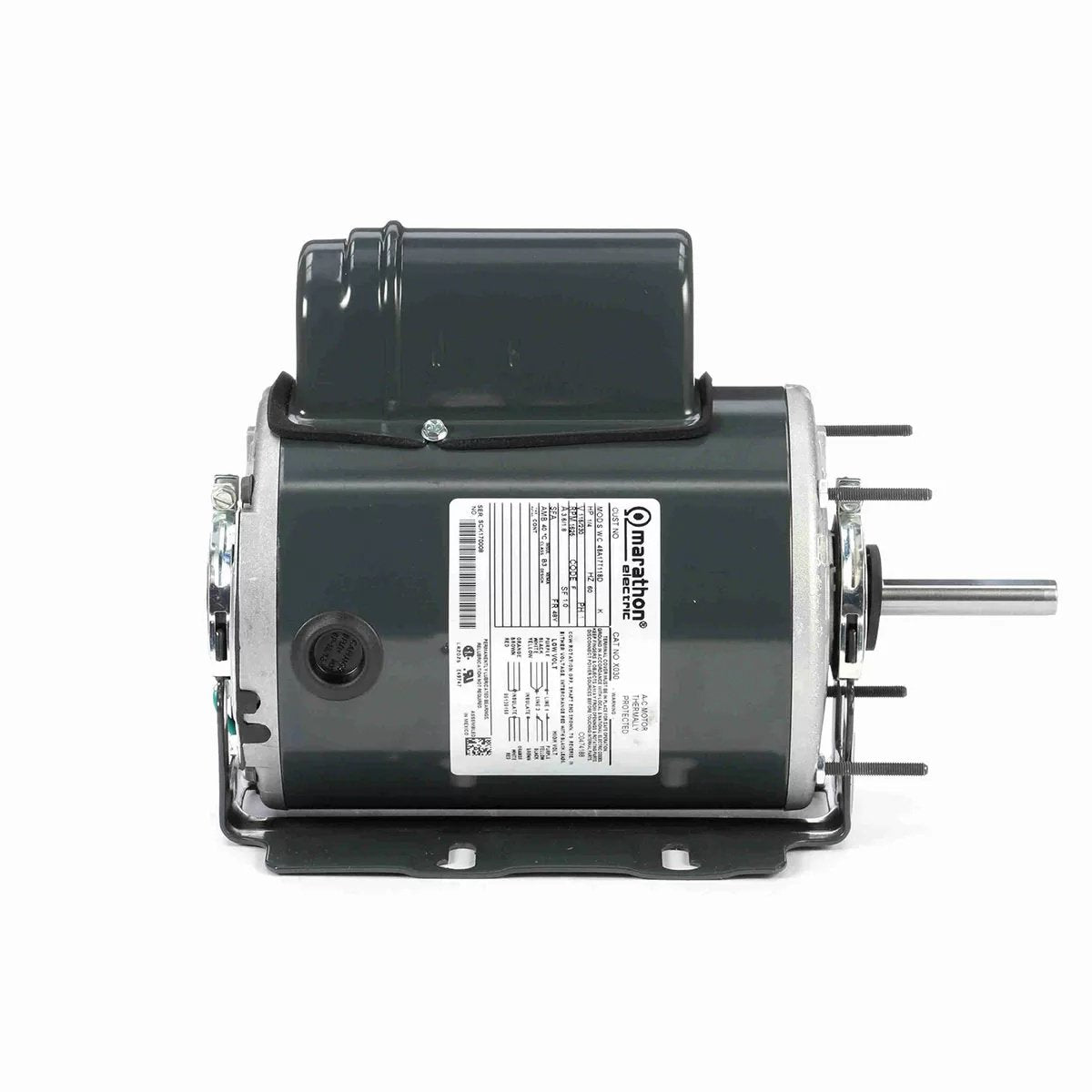

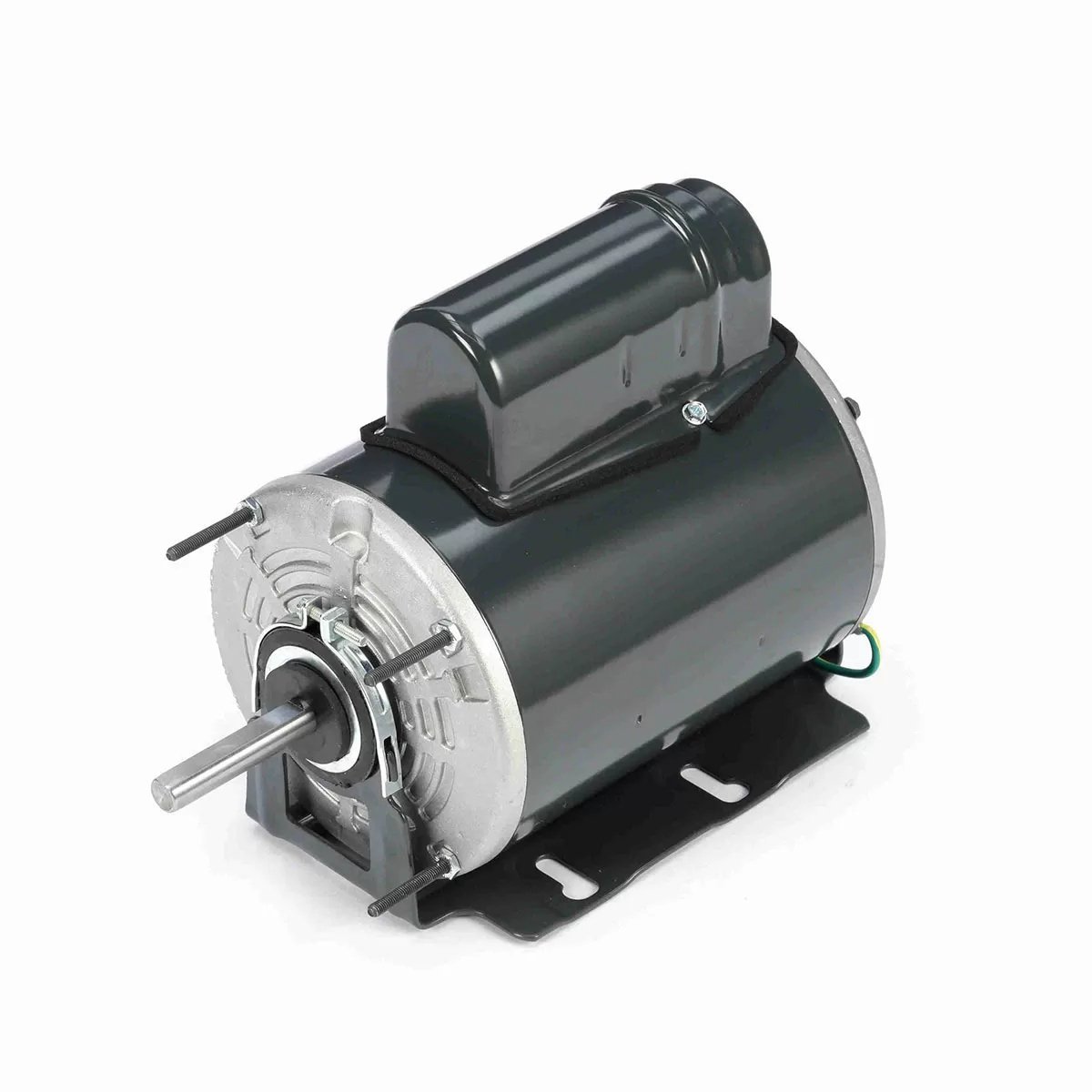

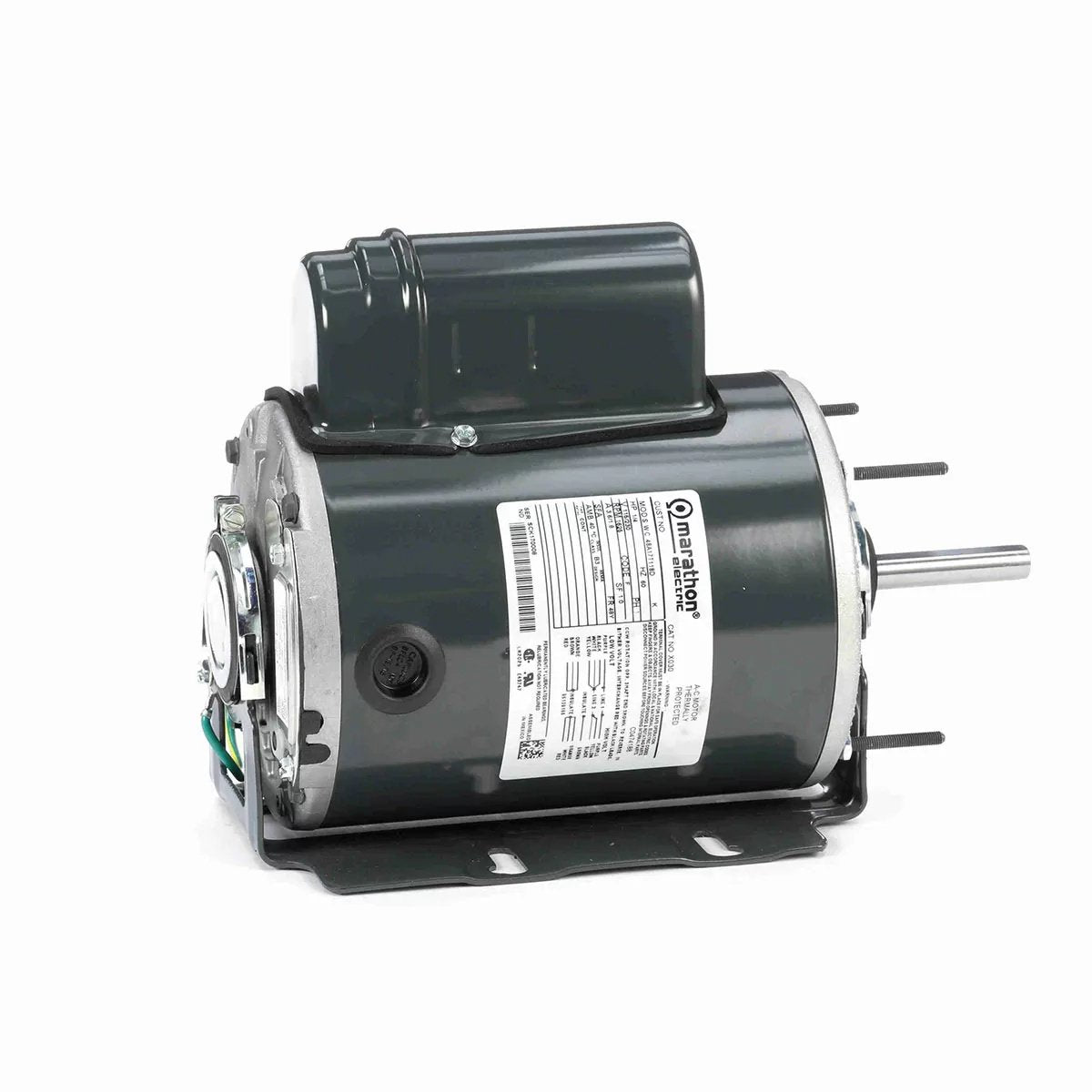

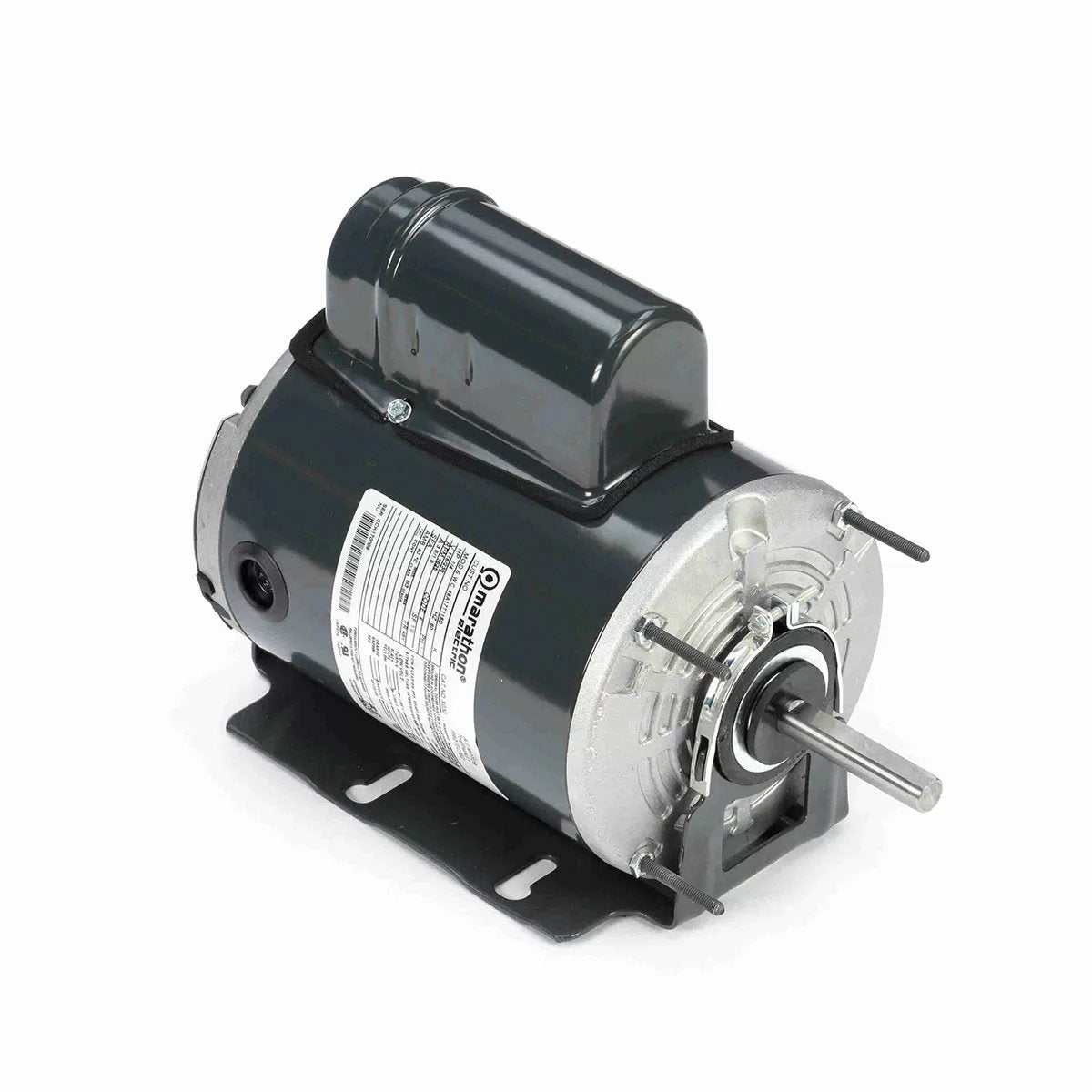

Marathon General Purpose Farm Duty 1/4 HP Motor Model - X030

QC Part #190040 | MFR # X030
$269 99
$269 99
Sale Sold out
10 Business Days

View full details
View Related Items
Serving agriculturesince 1982

Serving agriculture
since 1982

Over 40 years supporting producers and ag operations

Talk toreal people

Talk to
real people

U.S – based customer service team

Product expertiseyou can use

Product expertise
you can use

Support from people who know the products and how they're used.

U.S owned andoperated

U.S owned and
operated

Proudly based in Schuyler, Nebraska

Straightforwardreturns

Straightforward
returns

Clear policies and support when you need it

Description
Q&A
Documents

More about Marathon General Purpose Farm Duty 1/4 HP Motor Model - X030

The Marathon General Purpose Farm Duty Motor Model - X030 is a 1/4 horsepower, single-speed, fully enclosed general-purpose motor that can be used for a wide variety of duties on the farm.

Features

  • Double-shielded bearings extend the service life of the motor
  • EXXON® Polyrex® EM Grease supports temperatures between -20°F and +350°F
  • Shaft flingers protect bearings from damage
  • Condensation drains allow the motor to expel and drain moisture.

Specifications

  • HTC:8501.40.4040
  • Output HP:1/4 Hp
  • Output KW: 0.19 kW
  • Frequency: 60 Hz
  • Voltage: 115/230 V
  • Current: 3.6/1.8A
  • Speed:1625 rpm
  • Phase:1
  • Efficiency: 68%
  • Power Factor: 87.5
  • Duty: Continuous
  • Insulation Class:B
  • Design Code: None
  • KVA Code: F
  • Frame: 48Y
  • Enclosure: Totally Enclosed Air Over
  • Thermal Protection:Automatic
  • Ambient Temperature: 40 °C
  • Drive End Bearing Size: 6203
  • Opp Drive End Bearing Size: 6203
  • UL: Recognized
  • CSA: Y
  • CE: N
  • IP Code: 43
  • Number of Speeds: 1

Technical Specifications

  • Electrical Type: Permanent Split Capacitor
  • Starting Method: Across The Line
  • Poles:4
  • Rotation: Selective Counterclockwise
  • Resistance Main:0 Ohms
  • Mounting: Resilient Base - Extended Studs
  • Motor Orientation: Horizontal
  • Drive End Bearing: Ball
  • Opp Drive End Bearing: Ball
  • Frame Material: Rolled Steel
  • Shaft Type: Single Special Extension
  • Overall Length:11.06 in
  • Frame Length:6.50 in
  • Shaft Diameter:0.500 in
  • Shaft Extension:2.56 in
  • Assembly/Box Mounting: F1 ONLY

Dimensions

  • 20 lbs
  • 12.44" L x 9.13" W x 8.06" H

Speed Characteristics

Curvepoint Current (Amps) Torque (OZ-FT) Speed (RPM) Rated Output (KW) Rated Output HP
Breakdown 4.3 31.9 1300 .80 .25
Pull-Up 6.3 7.5 30 1.16 .25
Locked-Rotor 6.3 8.5 0 1.16 .25

Load Characteristics

Rated Load 10%  25% 50% 75% 100% 125% 150%
Current (AMPS) .75 .85 1.0 1.15 1.4 1.65 1.95
Rated Output (KW) .09 .14 .18 .23 .28 .34 .40
Efficiency (%) .0 35.2 53.0 62.9 68.0 70.5 70.7
Power Factor (%) 54.0 66.4 78.5 84.0 87.5 89.5 90.7
Speed (RPM) 1,800 1,770 1,760 1,744 1,720 1,690 1,660
Temp. Rise @ FL 0 0 0 0 0 0 0
Torque (OZ-FT) 0 3.05 6.03 9.27 12.25 15.6 19.05
