Marathon Electric

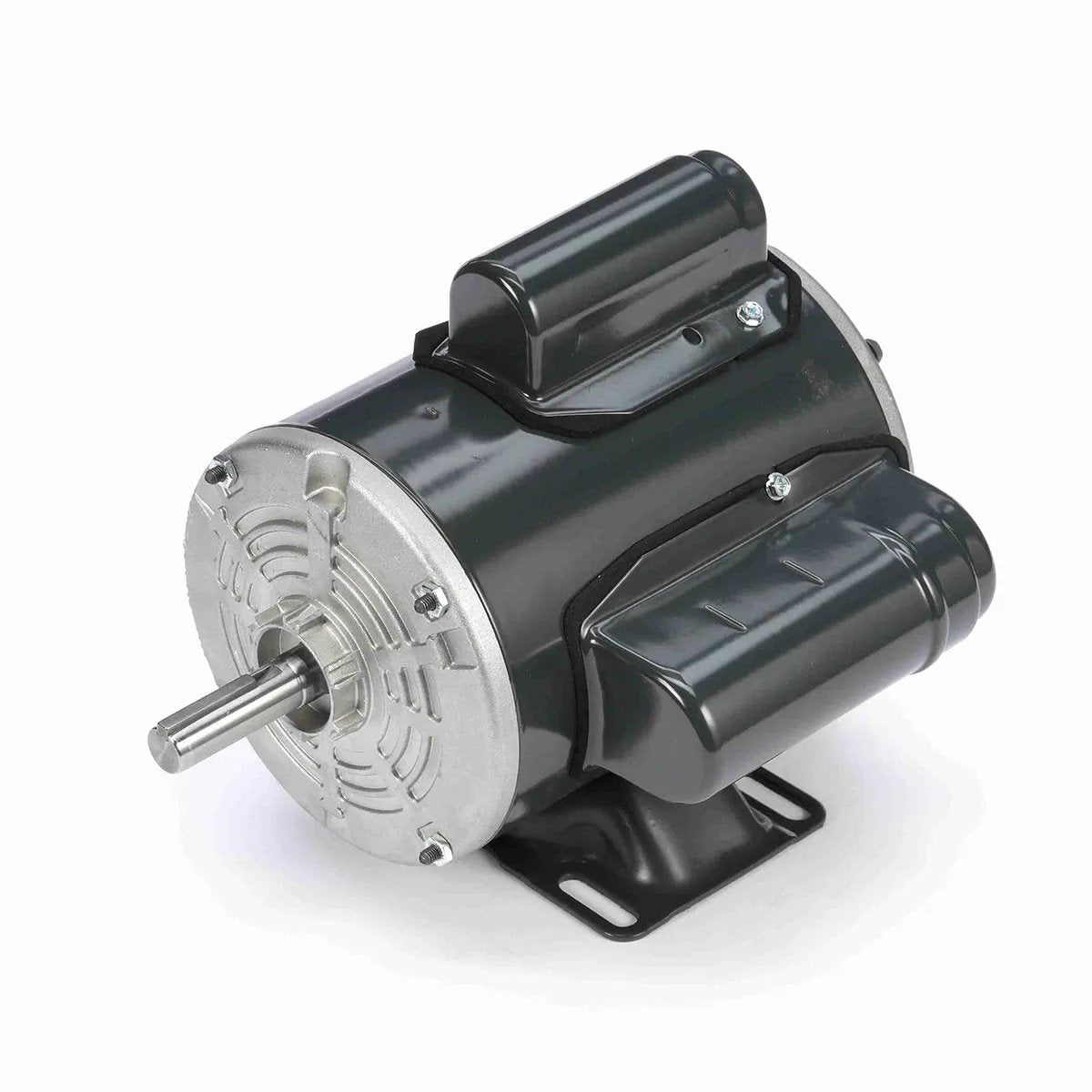

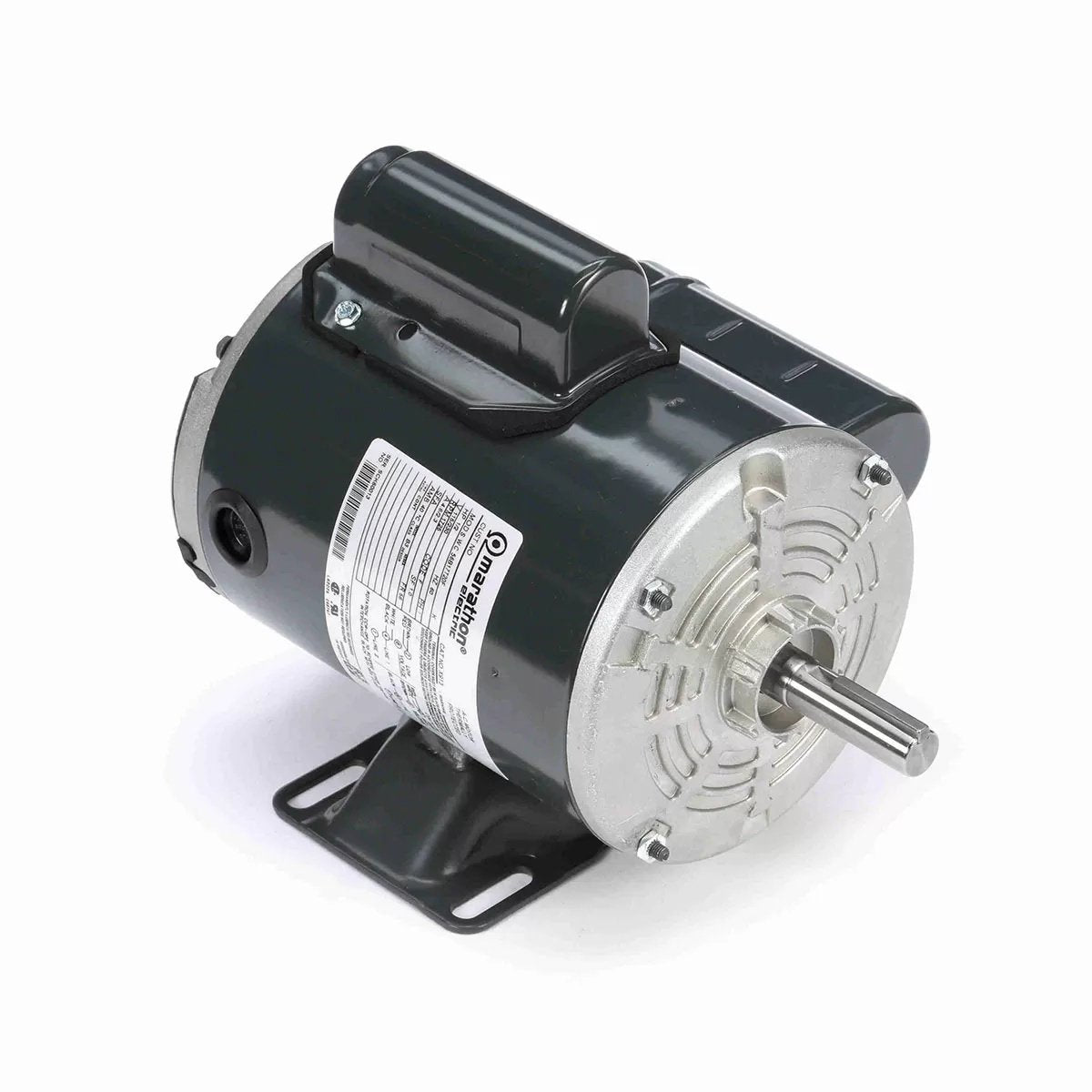

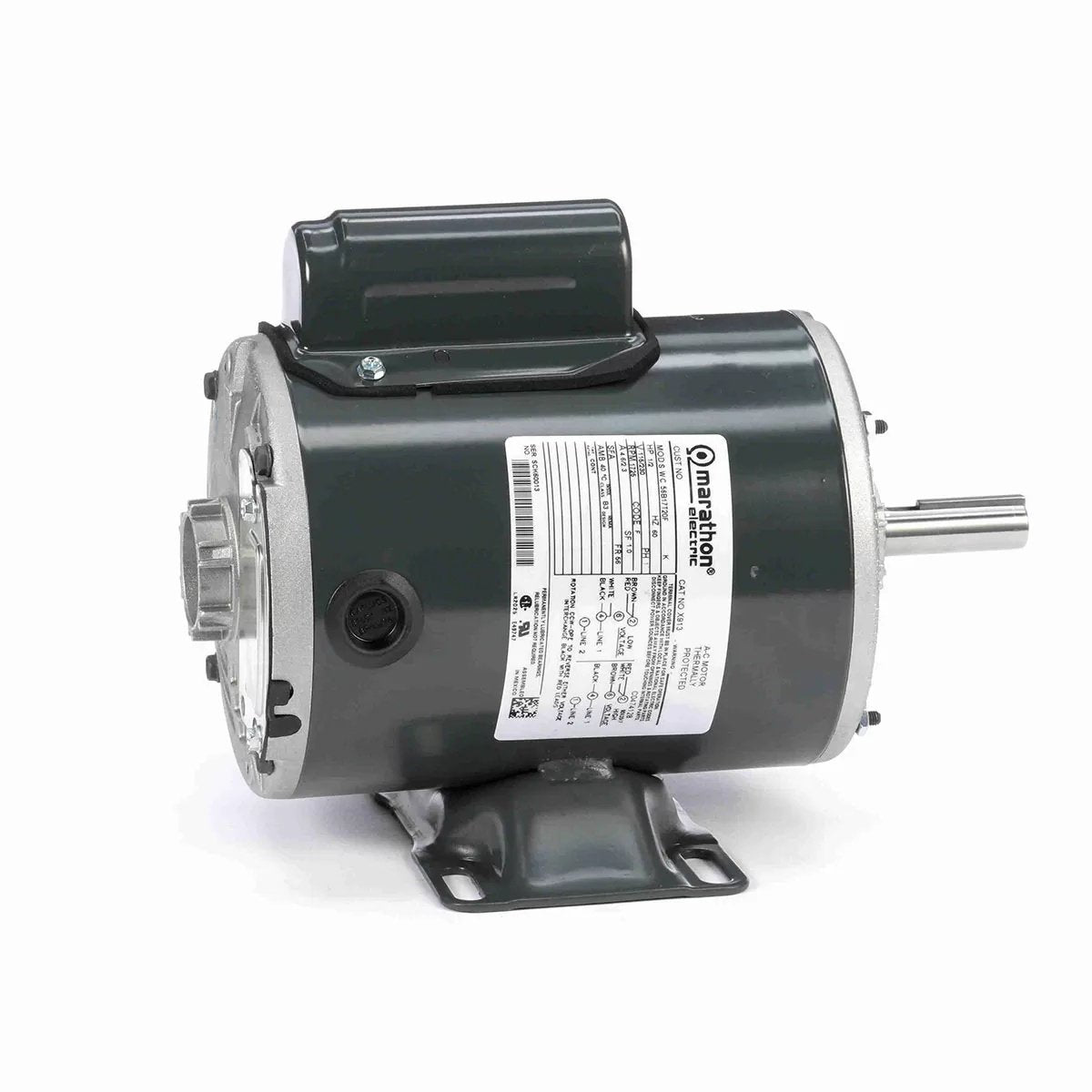

Marathon General Purpose Farm Duty 1/2 HP Motor Model - X913

QC Part #190043 | MFR # X913
$308 99
$308 99
Sale Sold out
10 Business Days

View full details
View Related Items
Description
Q&A
Documents
Why QC Supply?

More about Marathon General Purpose Farm Duty 1/2 HP Motor Model - X913

The Marathon General Purpose Farm Duty Motor Model - X913 is a 1/2 horsepower, single-speed, fully enclosed general-purpose motor that can be used for a wide variety of duties on the farm.

Features

  • Double-shielded bearings extend the service life of the motor
  • EXXON® Polyrex® EM Grease supports temperatures between -20°F and +350°F
  • Shaft flingers protect bearings from damage
  • Condensation drains allow the motor to expel and drain moisture.

Specifications

  • HTC:8501.40.4040
  • Output HP:1/2 HP
  • Output KW: 0.37 kW
  • Frequency: 60 Hz
  • Voltage: 115/230 V
  • Current: 4.6/2.3A
  • Speed: 1725 rpm
  • Service Factor: 1
  • Phase:1
  • Efficiency: 78.7%
  • Power Factor: 93.6
  • Duty: Continuous
  • Insulation Class:B
  • Design Code: None
  • KVA Code: F
  • Frame: 56
  • Enclosure: Totally Enclosed Air Over
  • Thermal Protection: Automatic
  • Ambient Temperature: 40 °C
  • Drive End Bearing Size: 6203
  • Opp Drive End Bearing Size: 6203
  • UL: Recognized
  • CSA: Y
  • CE: N
  • IP Code: 43
  • Number of Speeds: 1

Technical Specifications

  • Electrical Type: Capacitor Start Capacitor Run
  • Starting Method: Across The Line
  • Poles: 4
  • Rotation: Selective Counterclockwise
  • Resistance Main:0 Ohms
  • Mounting: Rigid Base
  • Motor Orientation: Horizontal
  • Drive End Bearing: Ball
  • Opp Drive End Bearing: Ball
  • Frame Material: Rolled Steel
  • Shaft Type: T
  • Overall Length: 10.47 in
  • Frame Length: 6.50 in
  • Shaft Diameter: 0.625 in
  • Shaft Extension: 1.97 in
  • Assembly/Box Mounting: F1 ONLY

Dimensions

  • Weight: 22.00 lbs
  • Length: 12.75"
  • Width: 9.5"
  • Height: 9.38"

Speed Characteristics

Curvepoint Current (Amps)  Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Rated Output(Hp)
Breakdown 7.10 320.0 52.0 215.0 1,507 1.40 .50
Locked-Rotar 11.40 514.0 33.0 136.0 0 2.10 .50
Pull-Up 11.40 514.0 31.0 128.0 164 2.20 .50
Full Load 2.22 100.0 24.2 100.0 1,743 .48 .50

Load Characteristics

Rated Load 10%  25% 50% 75% 100% 125% 150%
Current (AMPS) .77 .88 1.04 1.23 1.47 1.79 2.46
Rated Output (KW) .11 .16 .20 .25 .31 .68 .51
Efficiency (%) .0 29.9 46.4 55.8 60.9 62.2 55.3
Power Factor (%) 64.4 78.1 84.4 89.1 90.8 91.3 89.6
Speed (RPM) 1,200 1,184 1,172 1,157 1,139 1,112 1,042
Temp. Rise @ FL 0 0 0 0 0 0 0
Torque (OZ-FT) 0 4.5 9.0 13.7 18.5 23.7 30.30
