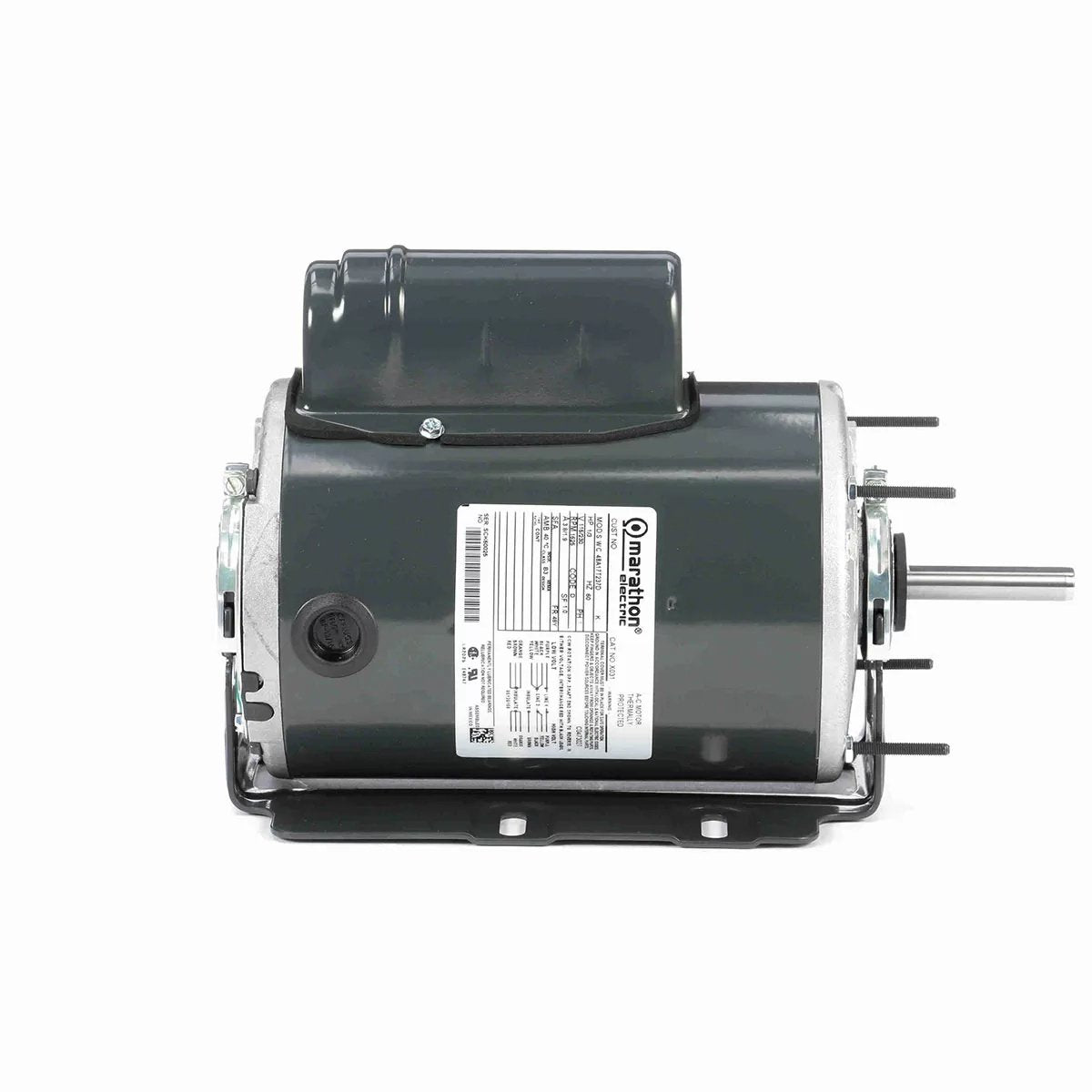

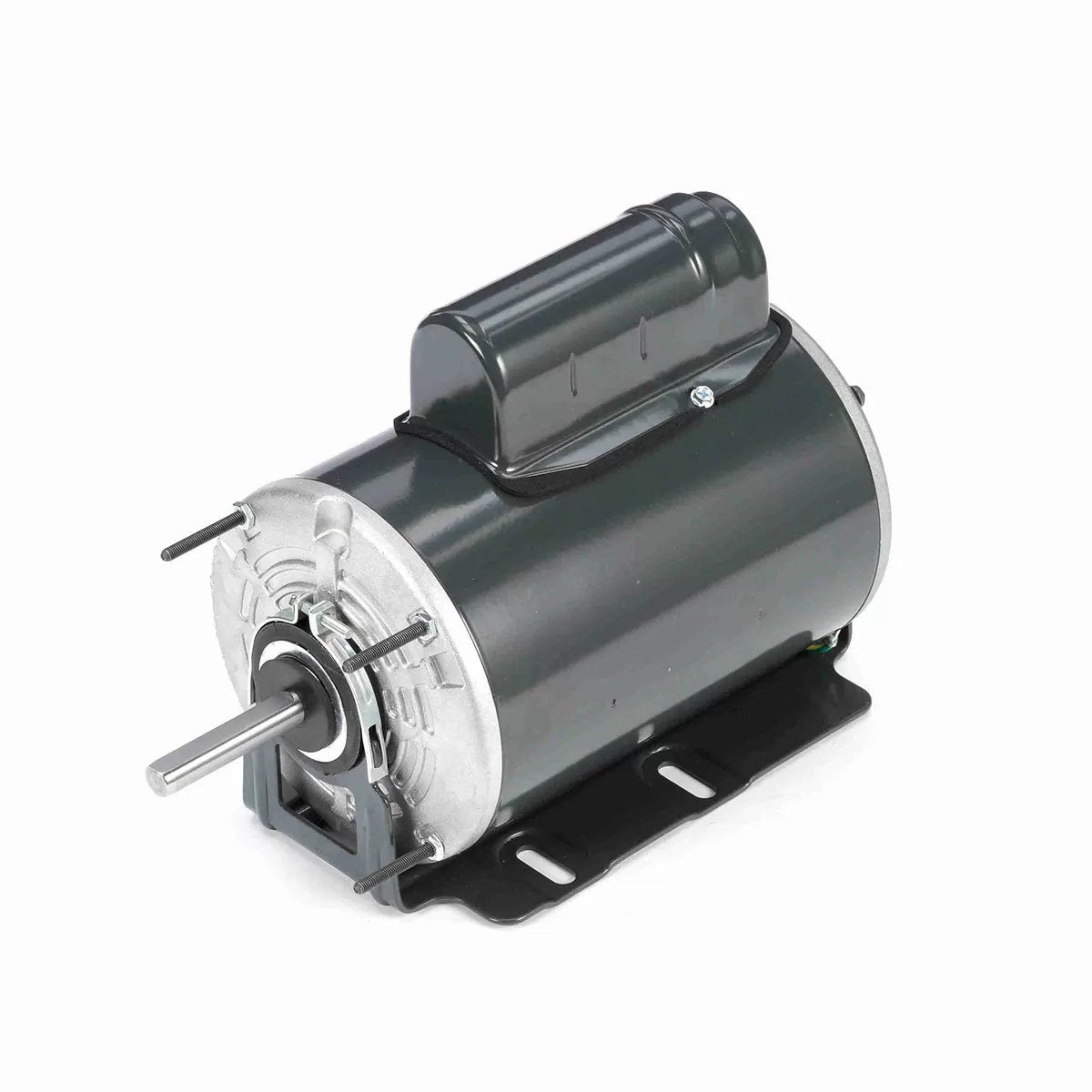

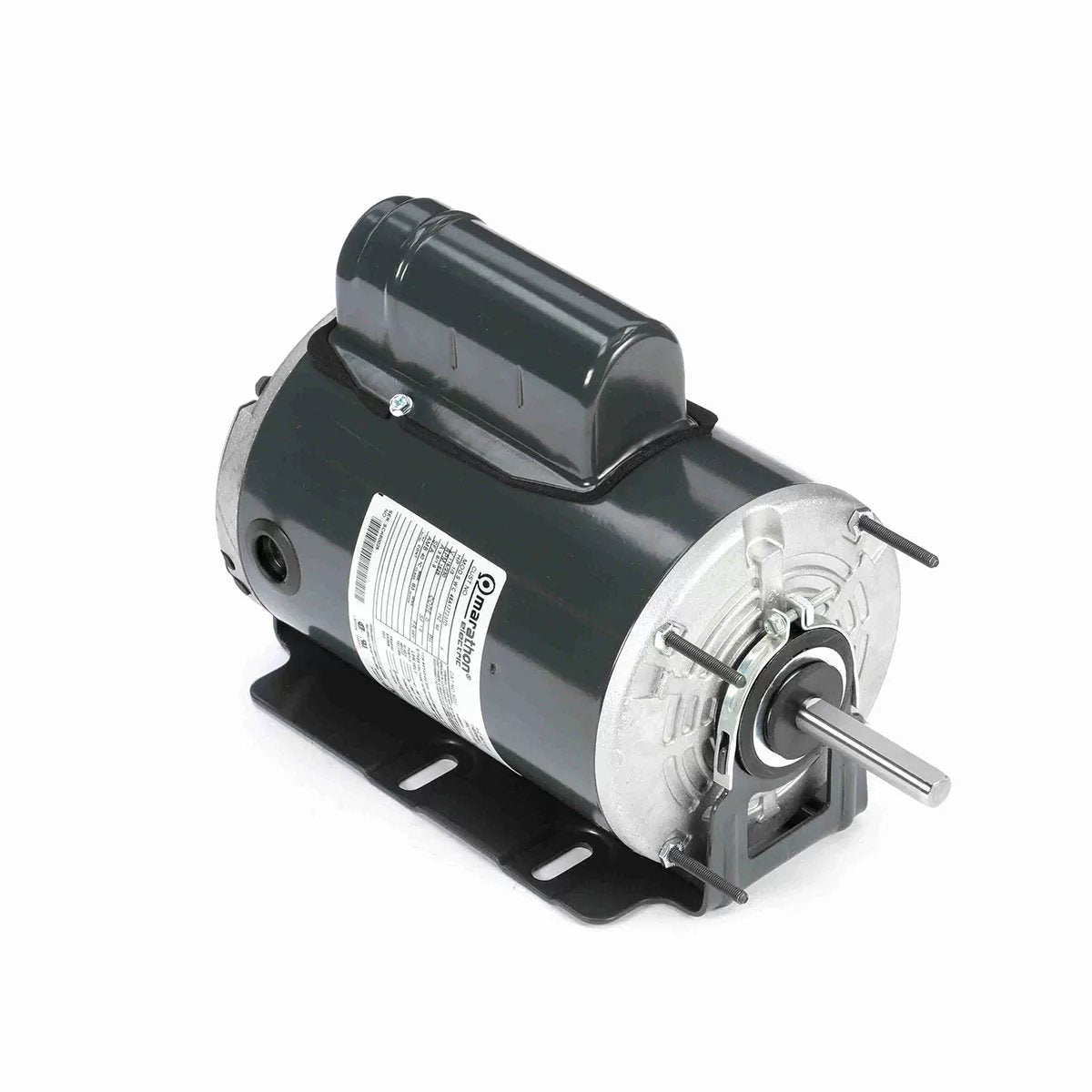

Marathon General Purpose Farm Duty 1/2 HP Motor Model - X031

The Marathon General Purpose Farm Duty Motor Model - X913 is a 1/2 horsepower, single-speed, fully enclosed general-purpose motor that can be used for a wide variety of duties on the farm.

Features

• Double-shielded bearings extend the service life of the motor
• EXXON® Polyrex® EM Grease supports temperatures between -20°F and +350°F
• Shaft flingers protect bearings from damage
• Condensation drains allow the motor to expel and drain moisture.

Specifications

• HTC: 8501.40.4040
• Output HP: 1/3 HP
• Output KW: 0.25 kW
• Frequency: 60 Hz
• Voltage: 115/230 V
• Current: 3.8/1.9A
• Speed: 1625 rpm
• Service Factor: 1
• Phase: 1
• Efficiency: 66%
• Power Factor: 96
• Duty: Continuous
• Insulation Class: B
• Design Code: None
• KVA Code: D
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 43
• Number of Speeds: 1

Technical Specifications

• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Selective Counterclockwise
• Resistance Main:0 Ohms
• Mounting: Resilient Base - Extended
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Single Special Extension
• Overall Length: 11.81 in
• Frame Length: 7.25 in
• Shaft Diameter: 0.50 in
• Shaft Extension: 2.56 in
• Assembly/Box Mounting: F1 ONLY

Dimensions

• Weight: 23.00 lbs
• Length: 13.75"
• Width: 7.88"
• Height: 8.75"

Speed Characteristics

Load Characteristics
