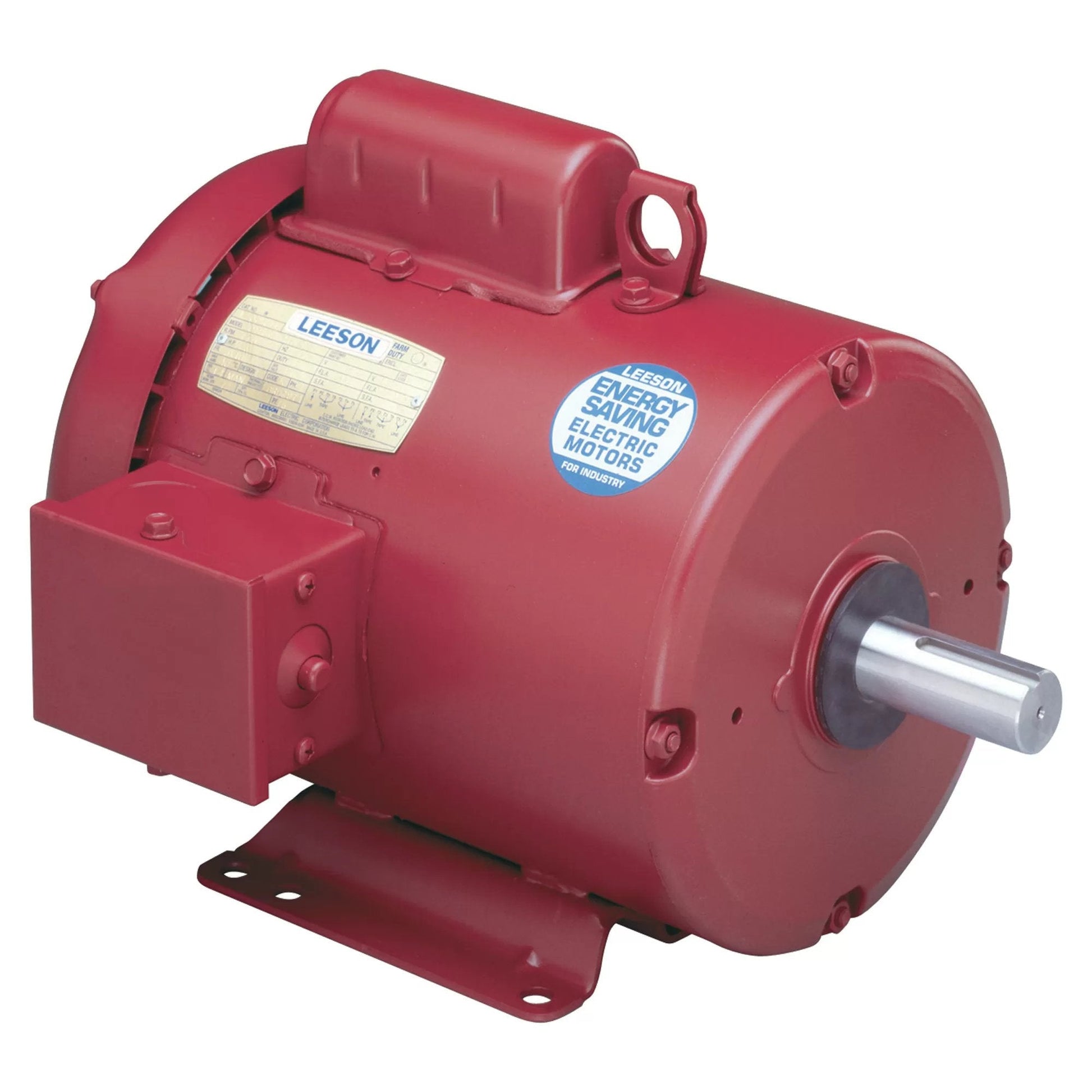

Leeson® 1 HP Farm Duty Hi-Torque Motor - Model 110088

QC Part #190053 | MFR # 110088
$459 99
$459 99
Sale Sold out

View full details
View Related Items
Description
Q&A
Documents
Why QC Supply?

More about Leeson® 1 HP Farm Duty Hi-Torque Motor - Model 110088

Designed to withstand harsh environments on the farm, the Leeson Farm Duty Hi-Torque Motor, Model 110088 performs well in a wide variety of farm equipment including fans, feeders, conveyors, grain elevators and silo unloaders. This motor has double-sealed ball bearings prelubricated with Exxon POLYREX® EM Grease with an operating temperature range of -20° F to +350° F and a special formulation to provide extra bearing protection. Single Phase, 60 Hertz. 1 HP, 1725 RPM.

Additional Features/Advantages

  • Gasketed Capacitor Housing & Conduit Boxes
  • Copper Windings & Varnish
  • Manual Overload Protection
  • Totally Enclosed Fan Cooled
  • Double Shielded Ball Bearings
  • Rubber Boot Over Manual Reset for Weather Protection
  • Capacitor Start
  • Service Factor 1.15
  • High Starting Torque
QC Part # Model # HP RPM F.I. Amps
230 Volt		 Frame Voltage Shaft Ships Approx
Weight
190050 113256 1/3 1725 3.2 56 115/208-230 5/8 UPS 24 lbs
190051 110086 1/2 1725 4.4 56 115/208-230 5/8 UPS 25 lbs
190052 110087 3/4 1725 5.4 56 115/208-230 5/8 UPS 28 lbs
190053 110088 1 1725 7 56 115/208-230 5/8 UPS 31 lbs
190054 110089* 1 1/2 1725 8.6 56H 115/208-230 5/8 UPS 41 lbs
190055 110090* 2 1725 9.2 56HZ 230 7/8 UPS 48 lbs
190056 131541 2 1740 12.4 182T 115/208-230 1 1/8 UPS 67 lbs
190057 131542 3 1740 19 184T 230 1 1/8 Motor Freight** 99 lbs
190058 131543* 5 1740 23 184T 230 1 1/8 Motor Freight** 106 lbs
190621 140414* 10 1740 40 215T 230 1 3/8 Motor Freight** 154 lbs
260030 Power Supply Cords
  *Capacity start/capacitor run design for reduced amperage, others are capacitor start/indication run.
**For items shipping via motor freight, we'll contact you with shipping charges
