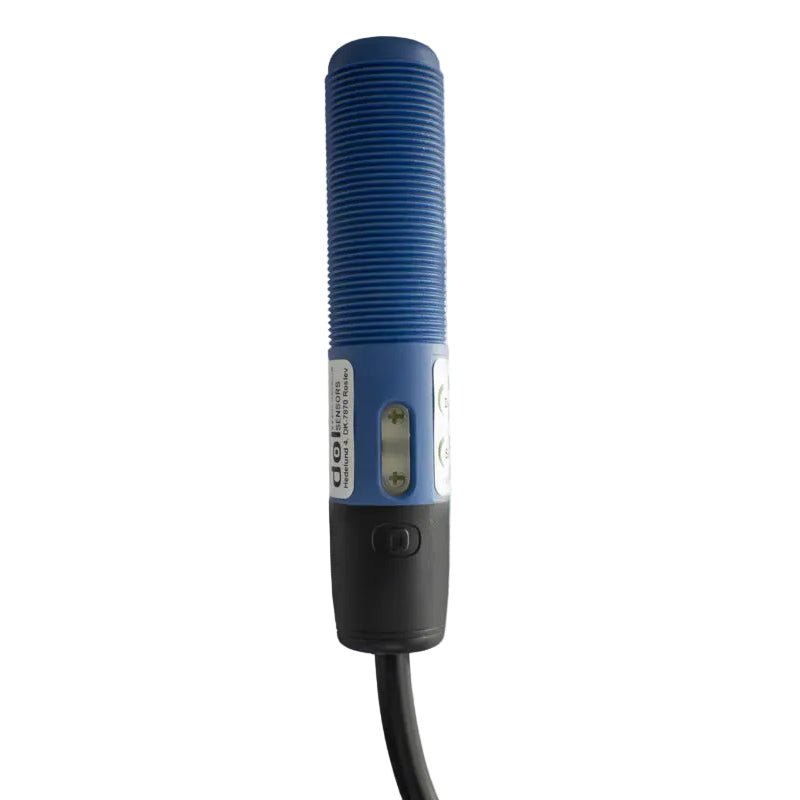

DOL Sensors DOL 26 Small Capacitive Proximity Sensor - CA-P-M18-NF-CA-SCR-B-2T 10M

Small 18 mm capacitive SCR sensor with threaded housing and 10-meter 2 wire cable. The sensor is ideal for inclusion in small applications with limited space such as inside feed pans in poultry farms. In this way the sensor is kept away from the reach of the animals.

Features

• Normally closed with adjustable off delay from 5–30 seconds (30s standard)
• Immune to EMI, short circuits, and any overload
• Detect loose and solid materials such as feed, plastic or wood pellets, and grain
• Time delay to ensure unnecessary start stop of motor

Specifications

• 18 mm threaded sensor
• 20–280VAC/DC
• Easy to install in feed pan
• Sensor length: 89 mm
• Protection class: IP69k (DIN 40050-9) and NEMA 1, 3, 4, 6, 12, 13
• Approval: CE, UL, C-UL

Variants

• 105208 – DOL 26 Small Capacitive Sensor 20–280VAC/DC (Smooth) 2 m cable
• 105104 – DOL 26 Small Capacitive Sensor 20–280VAC/DC (Threaded) 2 m cable
• Also available in other variants — Contact QC Supply
