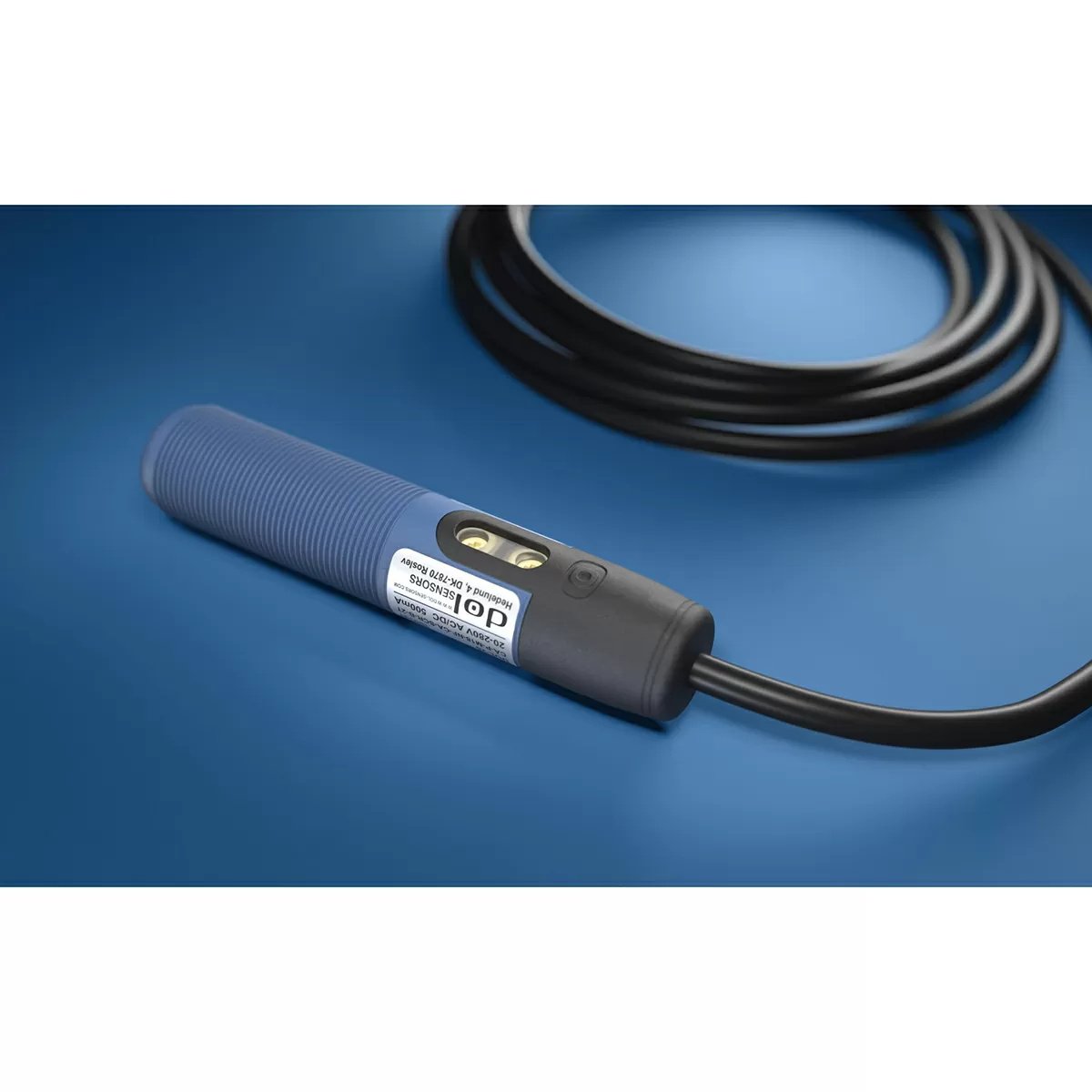

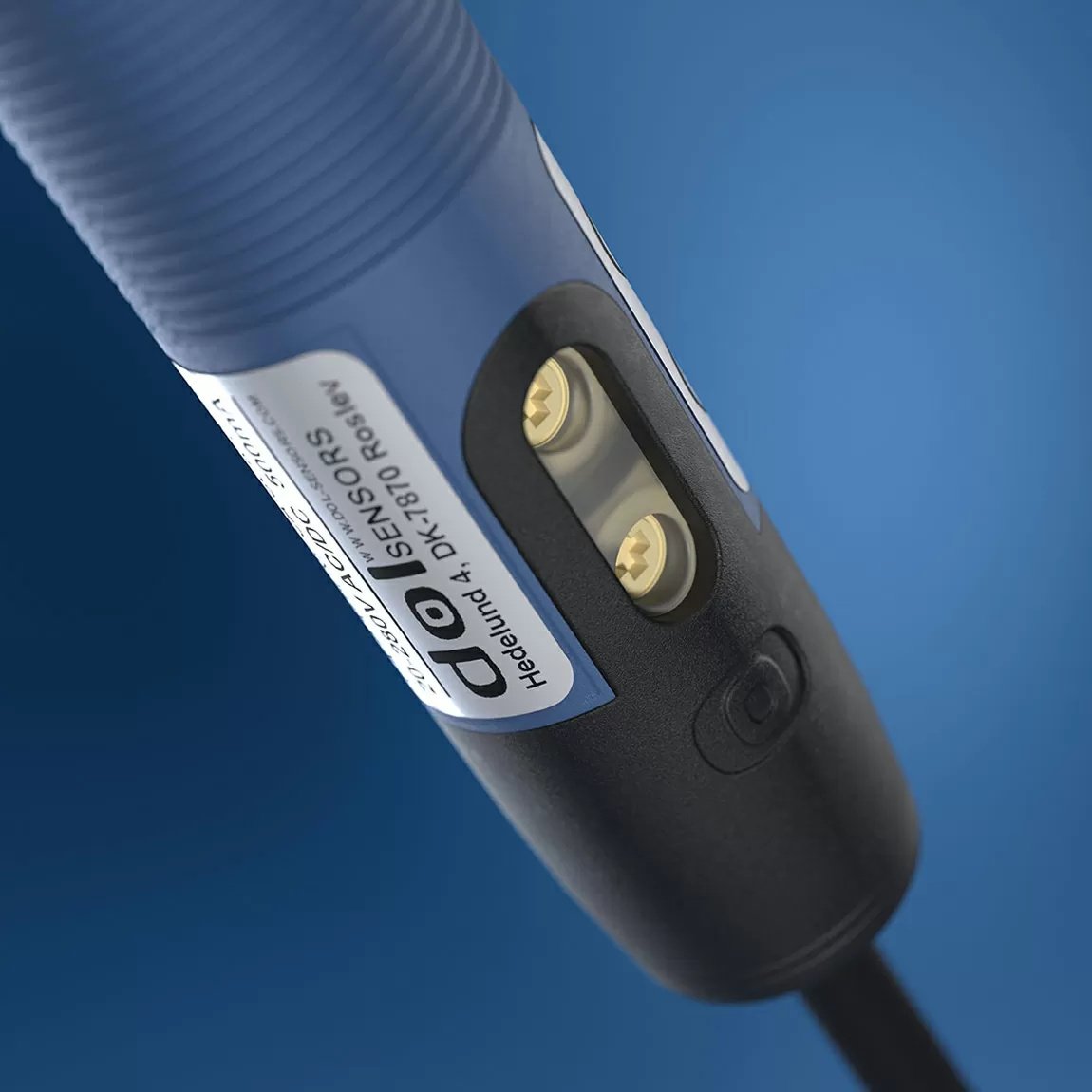

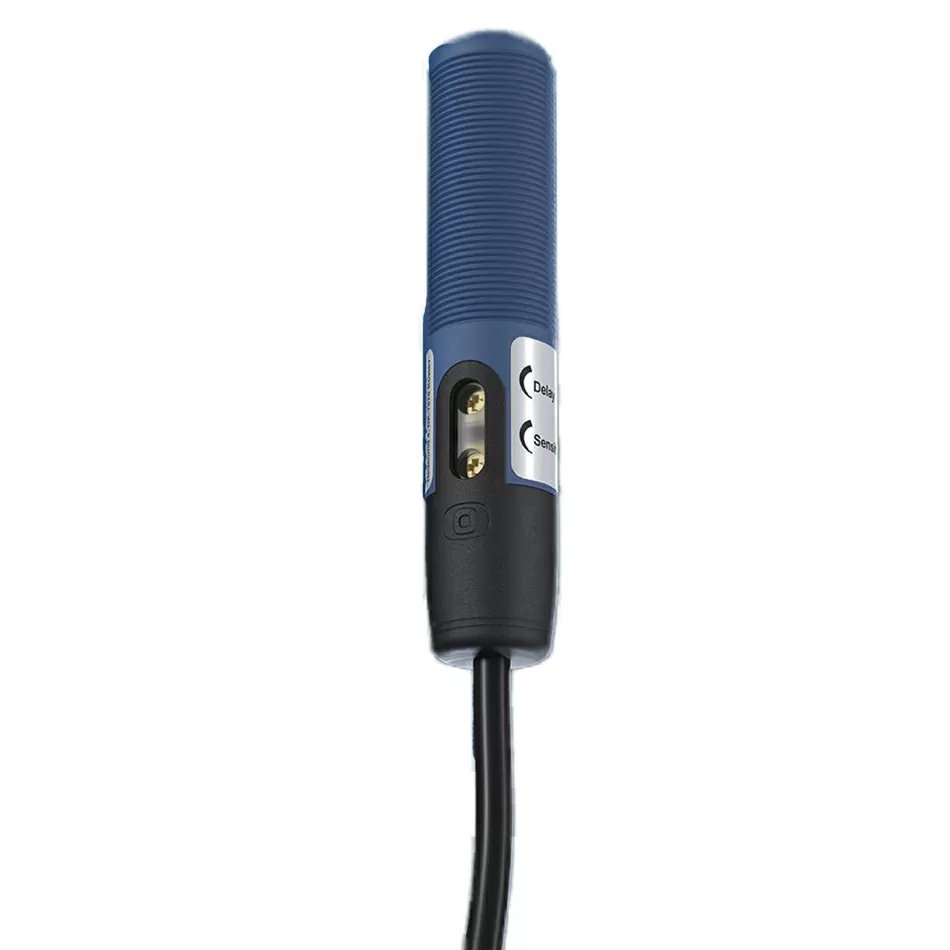

DOL Sensors DOL 26 Capacity Sensor - Normally Closed

The DOL 26 Capacity Sensor - Normally Closed will detect loose and solid materials, with a design making it perfect for small applications with limited space. The DOL 26 is immune to EMI, short-circuiting, and overloading, so the risk of burnt-out sensors due to installation errors is non-existent.

Features

• 18 mm threaded
• Sensitivity adjustable from 0-12 mm
• Voltage 20-280 volt AC/DC
• Low power consumption in standby mode
• Several sensors can work in parallel on the same contactor, which renders control of cross auger installations possible
• Available with different output options, 2-wire SCR for contactors & relays, or 4-wire PNP/NPN for PLCs
• Hardened design for agricultural & industrial applications
• Small form factor for confined spaces
• Threaded housing
• 2-meter cable
• IP69K & NEMA 1/3/4/6/12/13 environment protection
• Fully temperature compensated in complete wide temperature range
• Normally closed
• Delay off 0-60 seconds

Works With: Rotem, CTB, AP, Maximums, Munters, Aerotech, Vencomatic, Big Dutchman, Val-Co, Hog Slat

The DOL 26 Capacity Sensor is also available Normally Open, QC Part #422480, sold separately.
