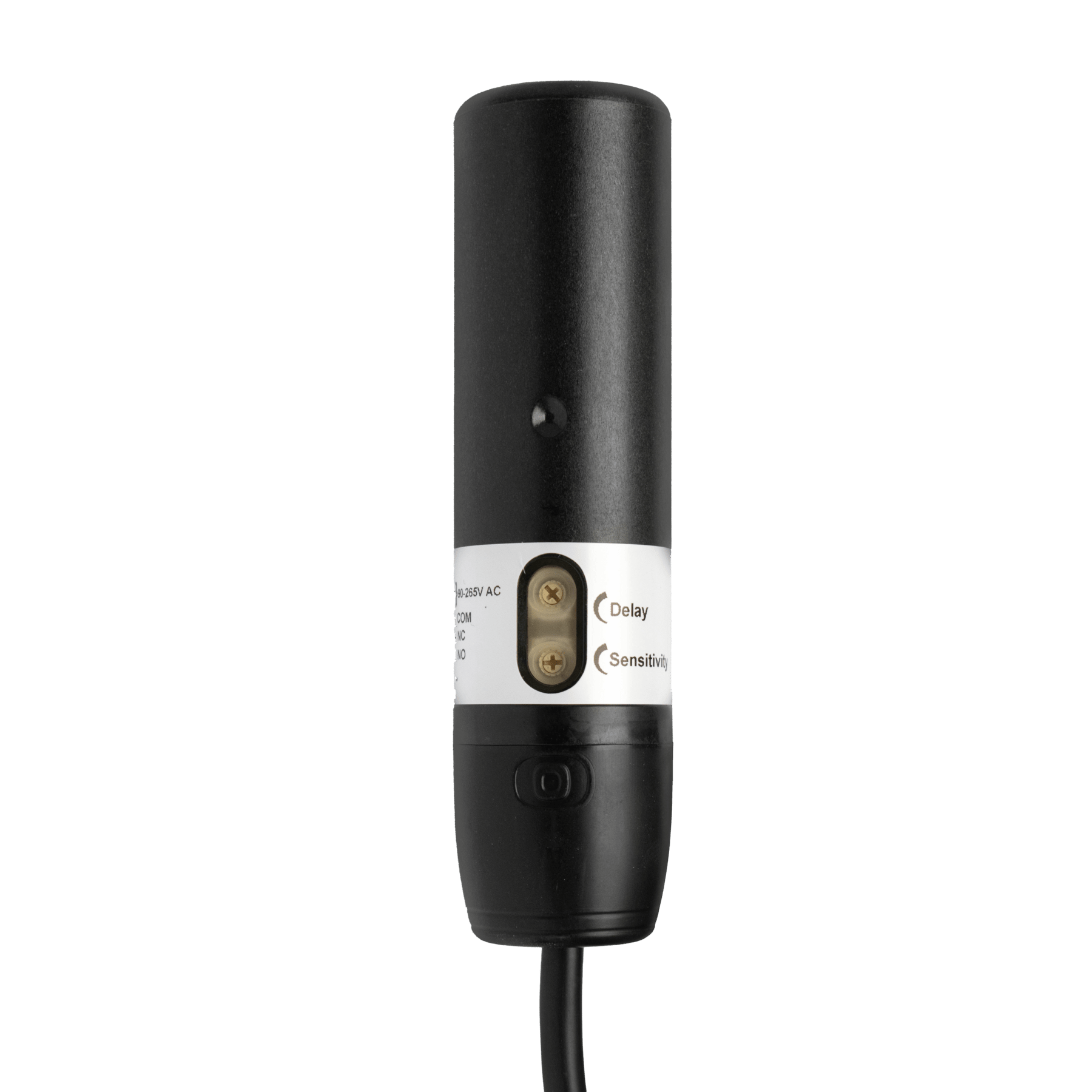

DOL 44R-33 Capacitive Relay Sensor

Robust relay sensor with smooth housing for detection of feed, grain, and solids in feeding systems. The sensor can be used for level control in silos and containers as well as controlling the filling and emptying process.

Features

• Smooth sensor with 33 mm coned design
• Built in heater to avoid condensation and humidity in cold or wet areas
• Easy to mount in PG36
• Easy to install in feed system
• Normally open or normally closed function
• Adjustable time off delay 0-600 seconds (300 seconds as standard) with screwdriver
• Time delay to ensure unnecessary start stop of motor

Specifications

• 90-265V AC
• 6' cord
• Approval: CE, UL, C-UL
• Power rating 5 amp ohms load; 2 amp inductive load

Variants

• 100640 IDOL 44 Capacitive Relay Sensor with NFC 20-280V AC/DC
• 100610 DOL 44 Capacitive Relay Sensor 90-265V AC (Smooth)

• 100608 DOL 44 Capacitive Relay Sensor 90-265V AC (Threaded)

• Also available in other variants – Contact QC Supply
