Dutton Lainson® Standard Winch - 600 lb. Load Capacity
SKU:
QC Part #91120 | MFR # 14100
Regular price
$26
99
Sale price
$26
99
Regular price
Unit price
per
Currently available on backorder
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
Description
Reviews
Q&A
Documents
More about Dutton Lainson® Standard Winch - 600 lb. Load Capacity

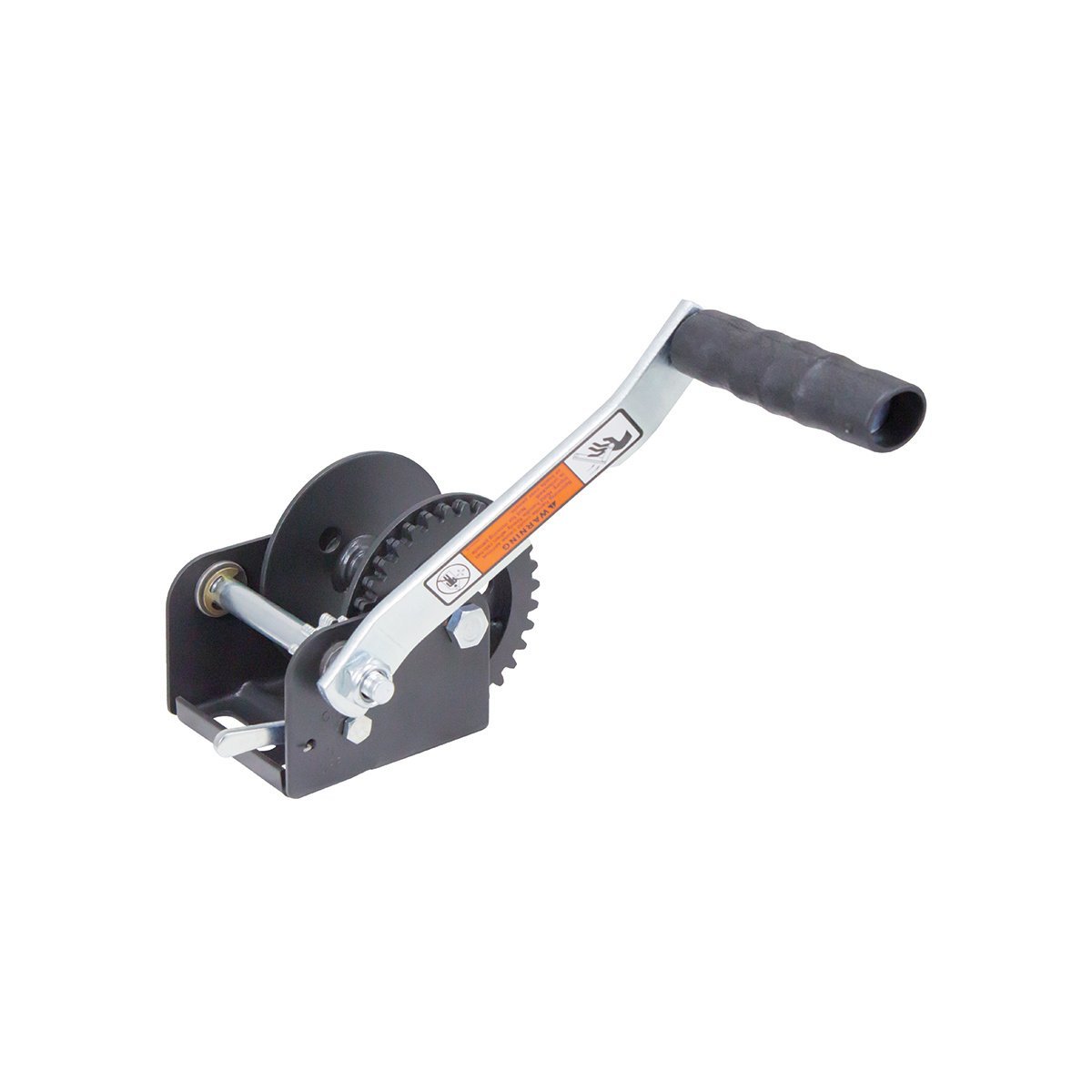

This Dutton-Lainson Standard hand ratchet winch is designed for horizontal pulling applications. It has a 600 lb. capacity and a 7" handle with an ergonomic handle grip. It has freewheel operation for easy line removal. This winch features a powder-coated, zinc-plated TUFFPLATE® finish on hardware. Color may vary. Made in the U.S.A.
NOTE: This winch is built for horizontal pulling applications. For vertical lifting applications, order a brake winch, a worm gear winch, or a StrongArm® electric winch without a clutch lever.
Features/Advantages:
- Ideal for many commercial and agricultural applications
- Arc-welded gears and copper brazed drive gears for durability
- Rigid, welded reel construction for added strength
- Load matched gear ratios for easier cranking
- All drive shafts have permanently lubricated bearings
- Heavy-duty steel handles with molded plastic grips
- Manufacturer's Limited Five Year Limited Warranty
- The color of what is sent may differ from the photo due to a manufacturer change. You will either receive bronze as pictured or black.
| QC Part # | Load Capacity |
Hub Diameter |
Gear Ratio |
Handle | Ratchet Type |
Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1/5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1/o 1/8" | 17.3:1/5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
