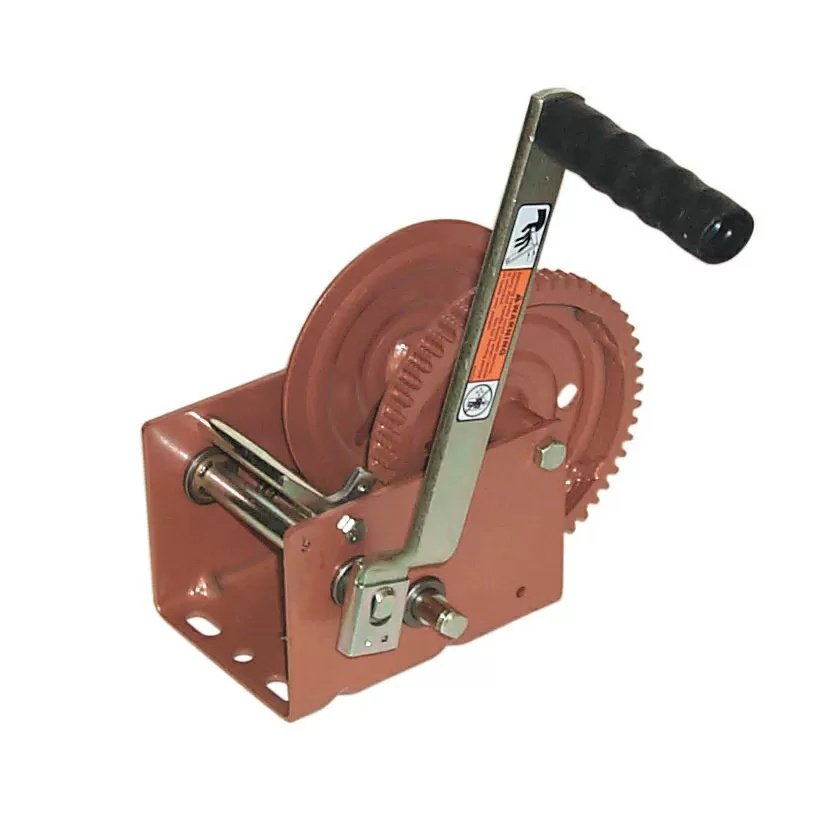

Dutton Lainson® Standard Winch - 2,000 lb. Load Capacity
SKU:
QC Part #91126 | MFR # 14700
Regular price
$97
99
Sale price
$97
99
Regular price
Unit price
per
Best suited for horizontal pulling applications that require the freewheeling feature of ratchet type winches.
Ships within 2 Business Days
Description
Reviews
Q&A
Documents
More about Dutton Lainson® Standard Winch - 2,000 lb. Load Capacity
Equipped to handle heavy loads, Dutton-Lainson Standard Winches are ideal for pulling and hauling waterers, heat lamps, livestock curtains, loading chutes, and doors up to 2,500 lbs. The rigid, welded reel construction allows you to manage loads with minimal effort, while arc-welded gears and copper-brazed drive gears ensure long-lasting durability.
Features & Benefits:
- Perfect for commercial and agricultural applications
- Arc-welded gears and copper-brazed drive gears for long-lasting performance
- Rigid, welded reel construction provides added strength and stability
- Load-matched gear ratios make cranking easier
- Permanently lubricated bearings on all drive shafts
- Heavy-duty steel handles with molded plastic grips for comfort
- Quick-Attach handle easily switches from high speed to low gear for heavier loads
- Copper bronze finish with zinc TUFFPLATE® hardware
- Made in the USA with a limited five-year warranty
Specifications
| QC Part # | Load Capacity | Hub Diameter | Gear Ratio | Handle | Ratchet Type | Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1 / 5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1 1/8" | 17.3:1 / 5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
Durable, reliable, and built for heavy-duty pulling—Dutton-Lainson hand ratchet winches are your go-to solution for demanding commercial and agricultural tasks.
