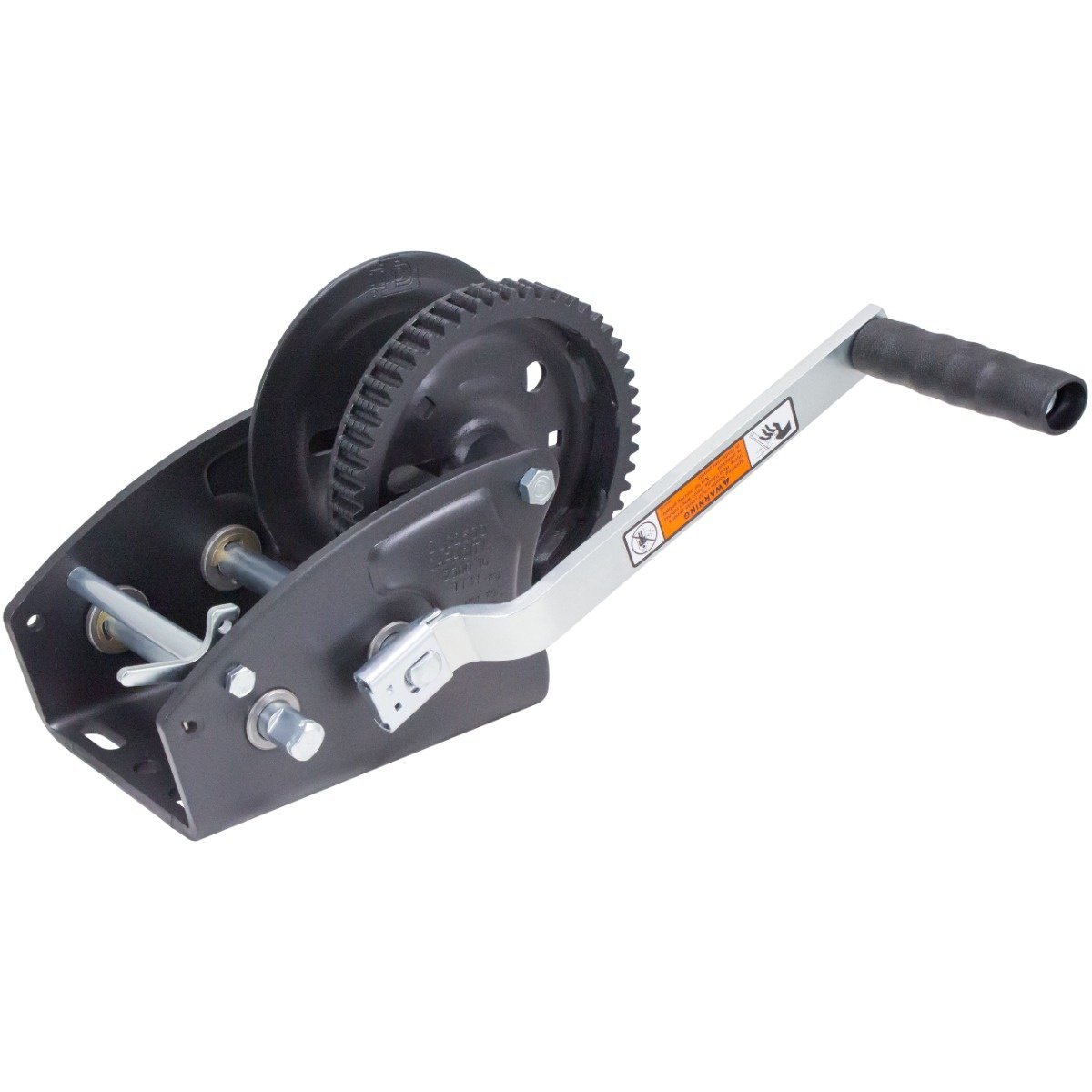

Dutton Lainson® Standard Winch - 2,500 lb. Load Capacity
-
Vendor:
SKU: 91124Regular price $49 99Sale price $49 99Unit price perIn stock -
Vendor:
SKU: 91143Regular price $109 99Sale price $109 99Unit price perIn stock -
Vendor:
SKU: 91444Regular price From $104 99Sale price From $104 99Unit price perIn stock -
Vendor:
SKU: 93247Regular price $49 99Sale price $49 99Unit price perIn stock -
Vendor:
SKU: 91109Regular price $118 99Sale price $118 99Unit price perIn stock
More about Dutton Lainson® Standard Winch - 2,500 lb. Load Capacity
Dutton-Lainson 2-Speed Hand Ratchet Winches – Durable, High-Capacity Pulling Solutions
Designed for commercial, agricultural, and general utility use, the Dutton-Lainson 2-speed hand ratchet winch delivers reliable performance for horizontal pulling applications. With capacities from 600 lbs. up to 2,500 lbs., these winches make heavy-duty tasks easier with minimal effort.
Built to last, each winch features a powder-coated copper bronze finish, zinc-plated TUFFPLATE® hardware, and arc-welded, copper-brazed gears. The freewheel operation allows easy line removal, while the reversible ratchet lets you crank the cable or strap in either direction. The dual drive shaft system with a 9 1/2" Quick-Attach handle makes switching from high-speed to low-gear operation simple—ideal for heavier loads.
Key Features & Benefits
- Durable arc-welded and copper-brazed gears for long-lasting performance
- Rigid, welded reel construction adds strength and stability
- Load-matched gear ratios reduce cranking effort
- Permanently lubricated bearings on all drive shafts
- Heavy-duty steel handles with molded plastic grips for comfort
- Quick-Attach handle allows easy switching between high-speed and low-gear operation
- Made in the USA
- Manufacturer's Limited Five Year Warranty
- Color may vary from photo (bronze or black)
Specifications
| QC Part # | Load Capacity | Hub Diameter | Gear Ratio | Handle | Ratchet Type | Reel Capacity |
|---|---|---|---|---|---|---|
| 91120 | 600 lbs. | 5/8" | 3.2:1 | 7" | One Way | 5/32" x 61' |
| 91121 | 900 lbs. | 5/8" | 3.2:1 | 7" | One Way | 3/16" x 40' |
| 91122 | 1,100 lbs. | 7/8" | 3.7:1 | 7" | One Way | 3/16" x 81' |
| 91124 | 1,400 lbs. | 7/8" | 4.4:1 | 7 1/2" | Two Way | 1/4" x 41' |
| 91125 | 1,800 lbs. | 1 1/8" | 5.4:1 | 9 1/2" | Two Way | 9/32" x 61' |
| 91126 | 2,000 lbs. | 1 1/8" | 12.4:1 / 5.4:1 | 9 1/2" | Two Speed | 9/32" x 61' |
| 91127 | 2,500 lbs. | 1 1/8" | 17.3:1 / 5.4:1 | 9 1/2" | Two Speed | 5/16" x 49' |
Reliable, high-capacity, and built to last—choose Dutton-Lainson hand ratchet winches for all your heavy-duty pulling applications.
-
