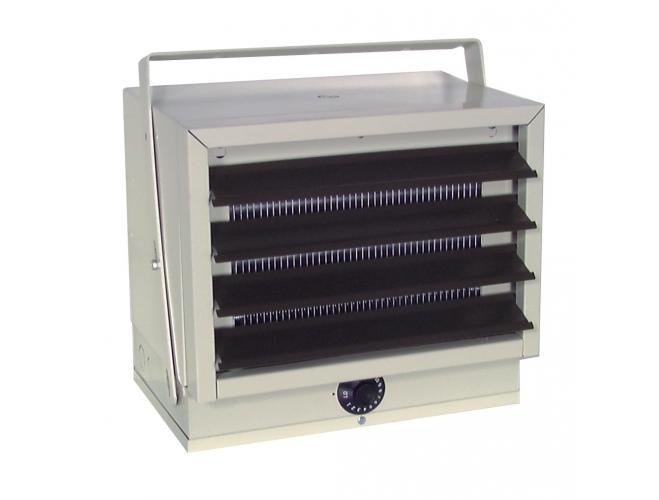

QMark® Horizontal/Downflow Unit Heater - MWUH5004

The QMark Horizontal/Downflow Unit Heater - MWUH5004 is great for a wide range of applications, from garages, basements, workshops, small office spaces, utility/bathrooms and stockrooms. It has a unique mounting system that allows you to direct heat where it is needed. The mounting bracket attaches to the ceiling with a single screw an allows the entire heater to turn in a full circle. Thermostatically controlled by a knob on the front of the heater.

Features

• 24 amps or lower
• High limit cutout automatically shuts off current in event of overheating & reactivates unit when temperature returns to normal
• Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down
• Adjustable louvers control air flow direction
• Copper-brazed steel fins with steel sheathed tubular elements for uniform heating & longevity
• Built-in single-pole thermostat
• Heater comes equipped with ceiling-mount bracket for horizontal or vertical flow mounting or any position in between
• Temperature Range: 45° F to 90° F
• 270 CFM
• Dimensions: 14" L x 12 1/2" H x 11 1/4" D
• Vertical Installation Mounting Height: 6' Min, 11' Max
• Horizontal Installation Mounting Height: 6' Min, 8' Max
• Minimum Distance From Mounting Hole to Wall: 13"; 48" when heater air flow is between 45° downward and vertical
