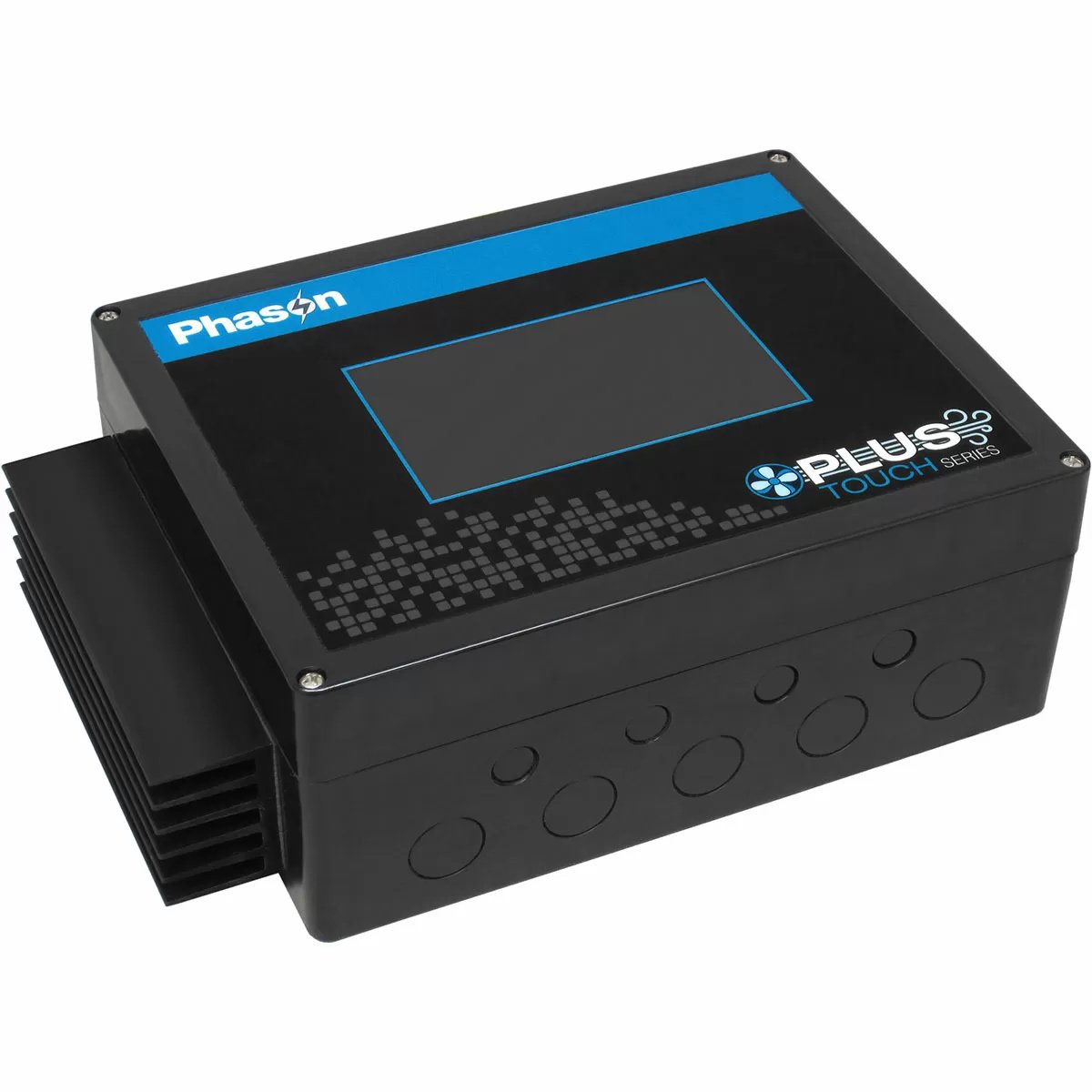

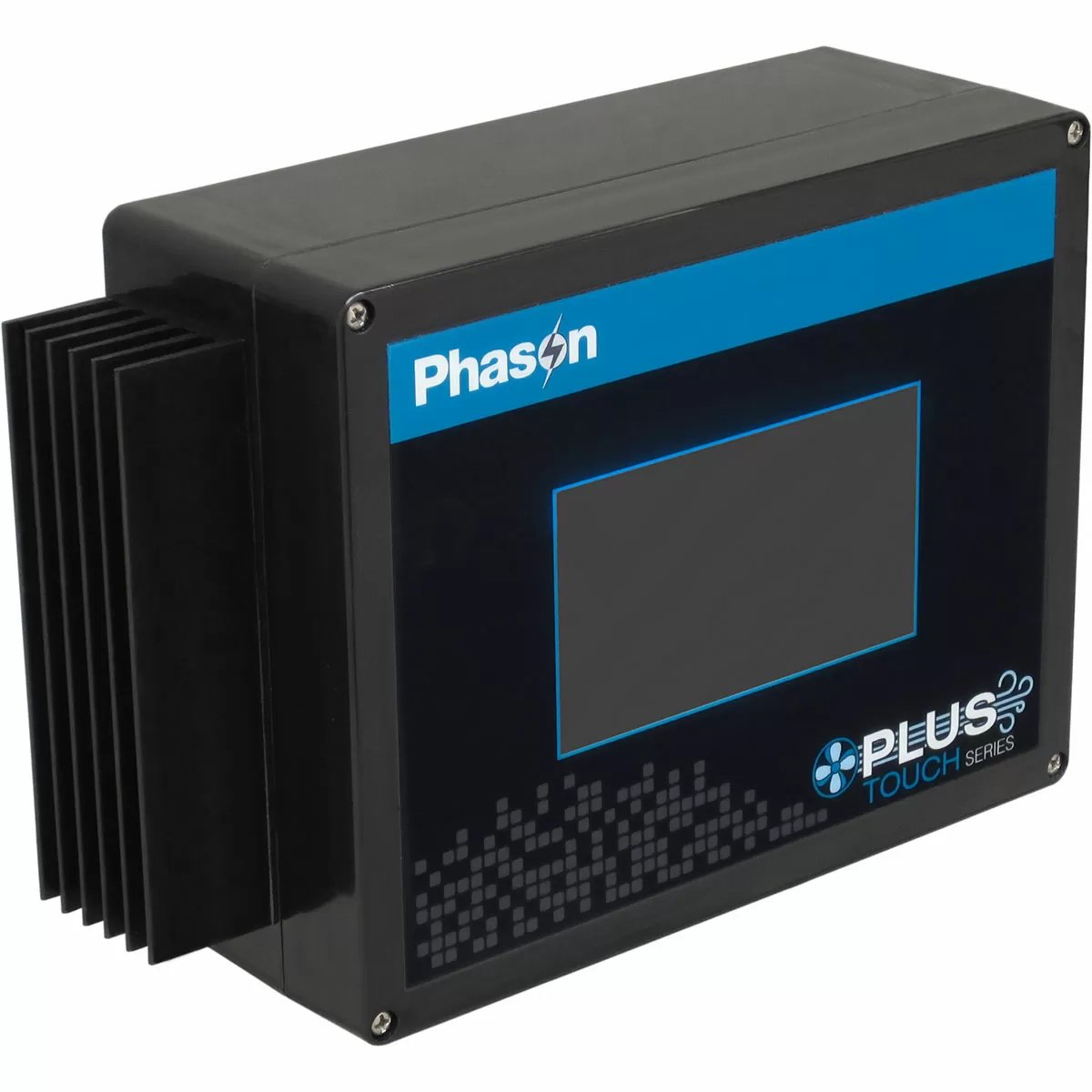

Phason Plus-Touch

Phason Plus-Touch controls variable and fixed-stage ventilation and heating equipment, cooling systems and more. More than a temperature-based control; Plus-Touch can monitor humidity, ammonia, carbon dioxide and more and react by changing the temperature or fan speeds.

Plus Touch offers VentGrid™ merged ventilation, which provides smoother transitions between steps than traditional staged mode can between stages.

Features

• 5-inch touchscreen
• Backwards compatible with all earlier PEC Plus control boards
• Automatic two-zone temperature control, range: -13 to 125°F (-25 to 51°C)

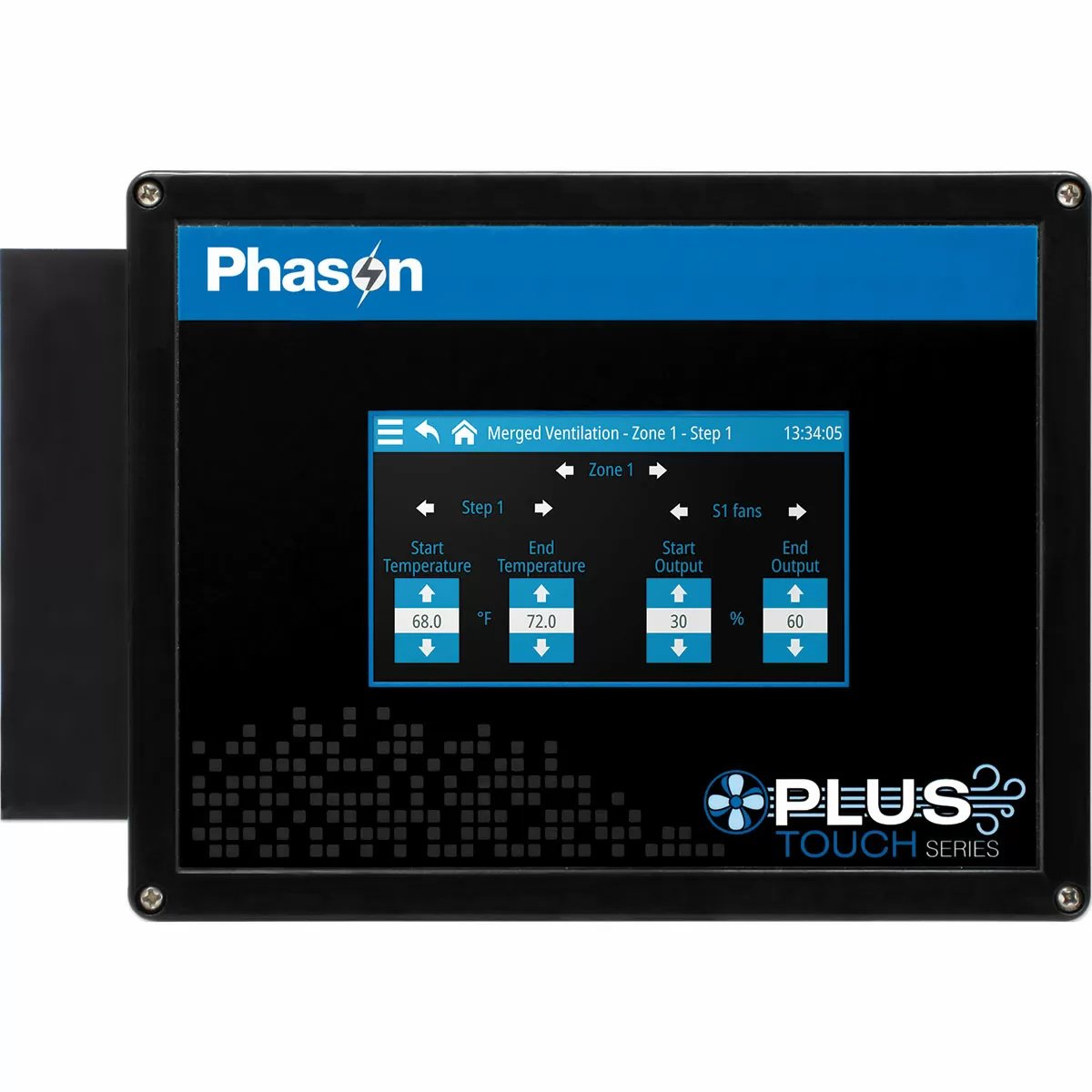

• VentGrid merged ventilation mode
• Traditional staged ventilation mode
• Two variable AC stages
• Six pluggable general-purpose relays
• Relay staggering for distributing startup loads
• Alarm relay
• Sensor inputs:
  • 5x Phason 3K Temperature
  • 1x DOL-114 Temperature and Humidity
  • 3x inputs for compatible DOL sensors
• Growth and minimum ventilation curves
• Secondary control modifiers
• Easily updatable by USB
• Many control options:
  • Variable and fixed-stage ventilation, such as fans, and up to 2 actuators or curtains
  • Variable and fixed-stage heating, such as electric heaters, gas furnaces, and heat lamps
  • Cooling equipment, such as misting and fogging systems
  • Duty cycles
• Onboard diagnostics and self-tests
• Overload protection fuses
• Temperature sensor; 30 feet, extendable to 500 feet
• Corrosion, water and fire resistant
• CSA approval
• Limited 2-year warranty

Power Ratings

• Incoming power:
  • 120/230 VAC, 50/60 Hz
• Variable AC stages:
  • 10 A at 120/230 VAC, general-purpose (resistive)
  • 7 FLA at 120/230 VAC, PSC motor
  • 1/2 HP at 120 VAC, 1 HP at 230 VAC, PSC motor
• Variable AC stage fuses15 A, 250 VAC ABC-type ceramic
• Relay stages
  • 10 A at 120/230 VAC, general-purpose (resistive)
  • 1/3 HP at 120 VAC, 1/2 HP at 230 VAC
  • 360 W tungsten at 120 VAC
• Alarm relay
  • 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load
  • 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
