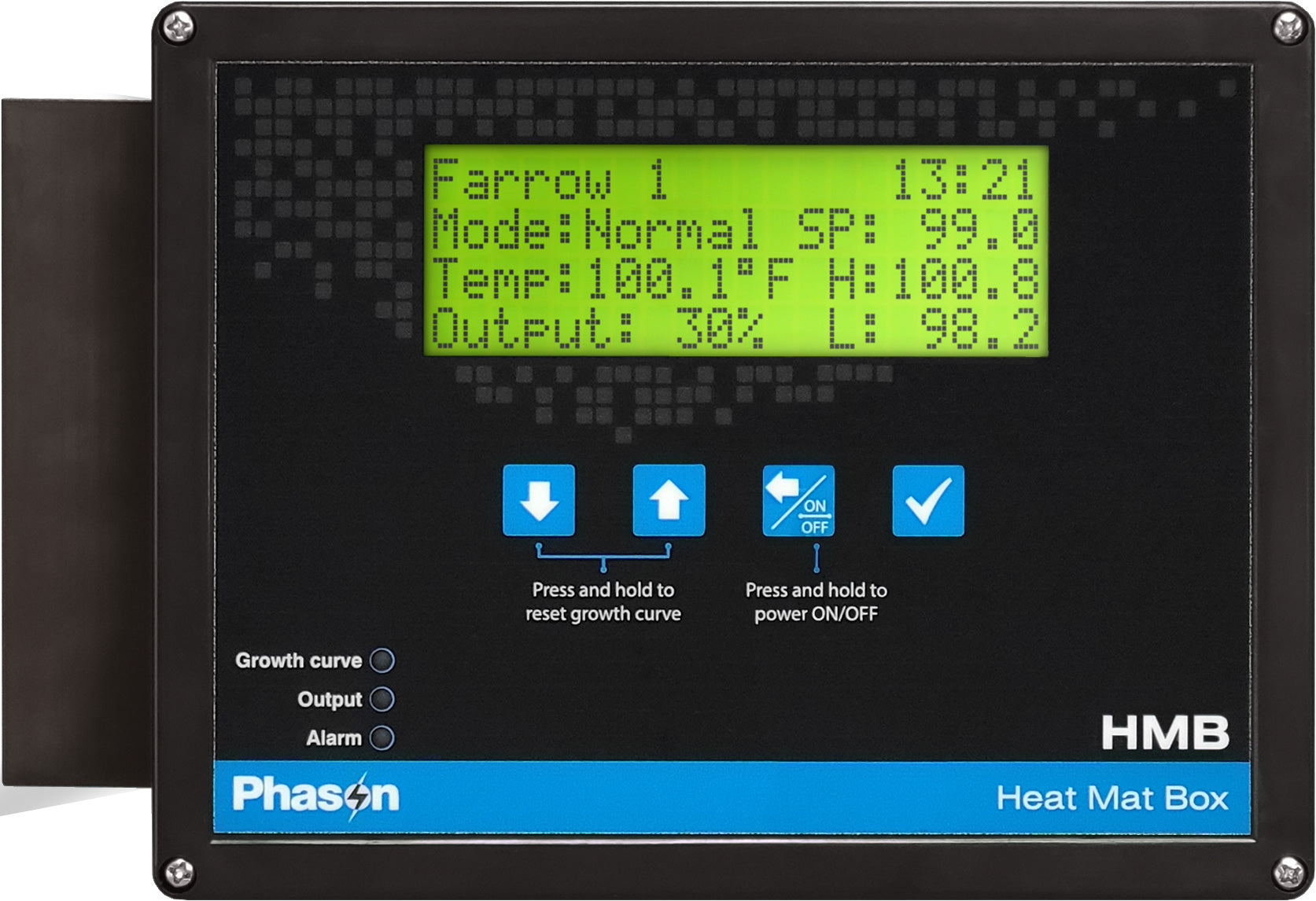

Phason HMB Heat Mat Box

Get automatic control with a six-step growth curve with the Phason HMB Heat Mat Box. It is an automatic temperature-based control with one 20 amp variable stage for controlling heat mats. All control functions are never more than a few button presses away, making the Heat Mat Box one of the easiest controls to program.

The Heat Mat Box displays displays temperature, mode, alarm, and status information. Monitoring the control regularly gives you a better idea of what is going on with your equipment and in your facility.

Features

• Automatic temperature-based control, programmable range:70° F to 125° F
• Six-step growth curve, up to 365 days duration
• Manual override mode
• Variable heating stage for controlling heat mats
• Alarm relay for triggering external alarm system or siren
• Temperature probe input
• Minimum and maximum temperature logging
• Large 20-character, 4-line LCD display
• Alarm message display
• Power-failure settings protection
• NEMA 4X enclosure (corrosion resistant, water resistant, and fire retardant)
• CSA approval
• Limited 2-year manufacturer warranty

Incoming Power

• 120/230 VAC, 50/60 Hz

Control Fuse

• 250 V, 1 A fast-acting glass

Variable Stage

• 20 A at 120/230 VAC, general-purpose (resistive)
• 2300 W at 120 VAC; 4600 W at 230 VAC
