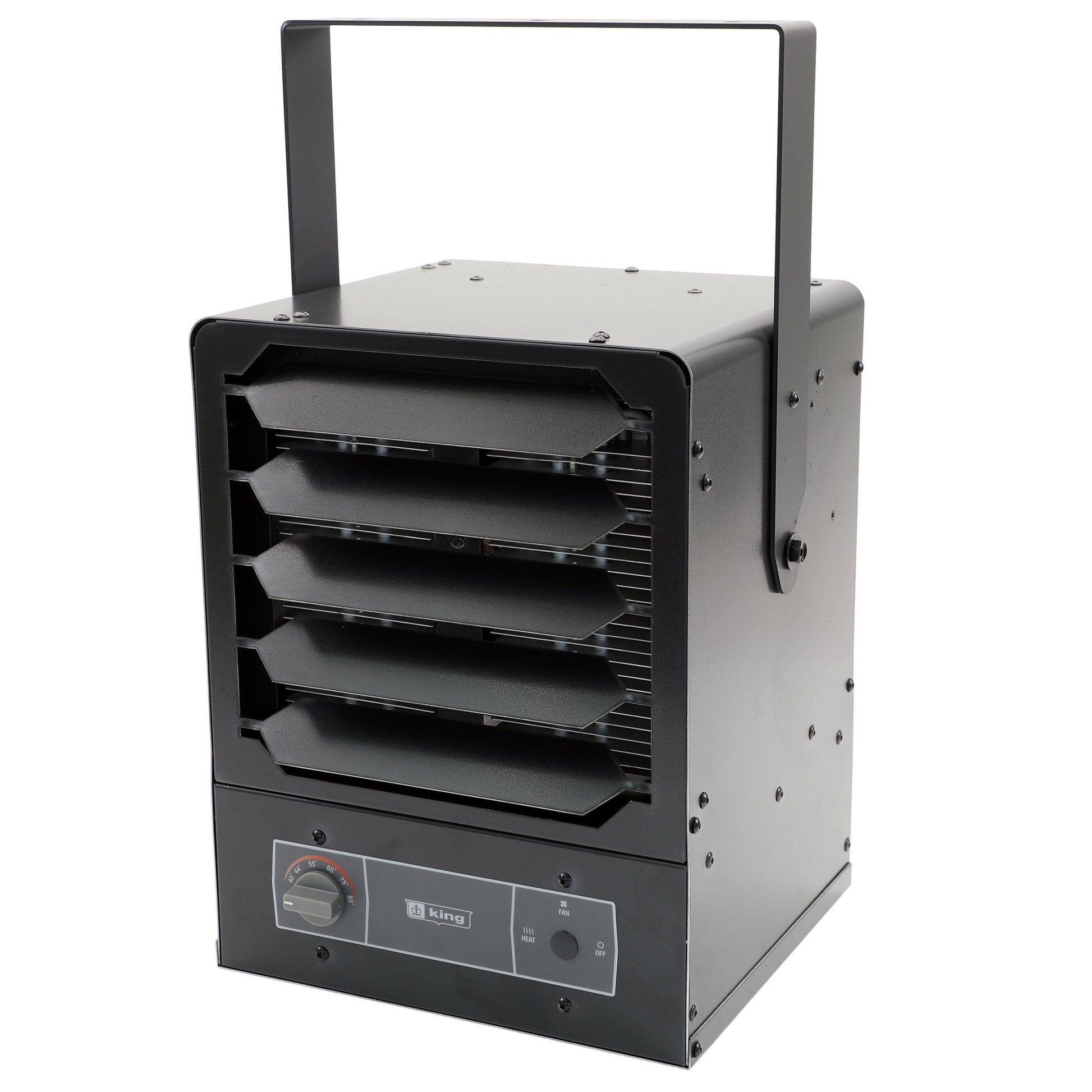

King Electric KBP Series 2-Stage Unit Heater – 240V, 5700W, 1-Phase, Built-In Thermostat

The KBP Series 2 is the new industry standard for multi-wattage unit heaters. Built on the trusted legacy of the original KBP, Series 2 delivers smarter design, improved controls, and easier installation.

Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. Built with high quality components and suitable for both residential and commercial applications.

All models include a standard built-in thermostat with easy-connect terminal block to field convert to a remote line voltage thermostat.

The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room.

Kings exclusive dual Pic-A-Watt steel fin elements provide a range of wattage options, letting you tailor the heater to the specific requirements of any area.

Features & Benefits

• Dual Pic-A-Watt Elements
• Multiple Wattage Options, to Tailor to a Rooms Specific Heating Requirements
• Adjustable Louvers To Direct Airflow
• Includes High Accuracy Built-in Thermostat
• Easy-Connect terminal block to field convert to remote line voltage (240V/25Amp) thermostat
• Optional Heat/Fan/Off-Disconnect Switch Kit Available
• 385 CFM Output
• Hinged Electrical Enclosure For Easy Access
• Aluminum Fan Blade
• Patented Smart Limit Protection
• Permanetly Lubricated Unit Bearing Motor
• Fan Delay To Dissipate Heat
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials

Specifications

• Voltage: 240V
• Wattage: 5700W
• Phase: 1 Phase
• Vendor Part Number: KBP2406-1-S2-MB-T
• 5-Year Limited Warranty
