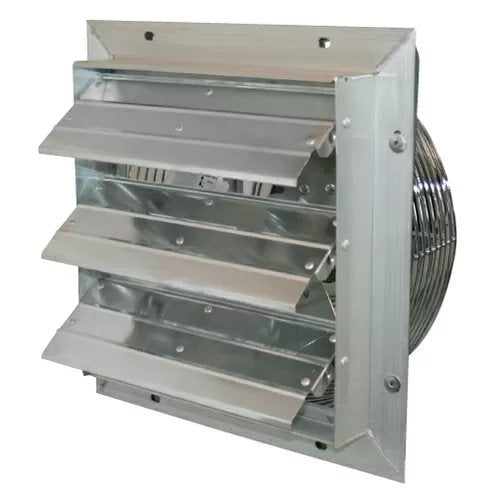

J&D Manufacturing Variable Speed ES Shutter Fan Single Phase w/Cord
SKU:
QC Part #10739JD | MFR # VES201C
Regular price
$228
99
Sale price
$228
99
Unit price
per
This item can not ship via USPS.
AMERICA AT WORK
When you see this American star badge, you can shop with confidence knowing the product is made, assembled, finished, or packaged in the USA. Choosing these products helps support American manufacturing and businesses.
-
Vendor:
SKU: 11128Regular price From $174 99Sale price From $174 99Unit price perIn stock -
Vendor:
SKU: 11127Regular price From $50 99Sale price From $50 99Unit price perIn stock -
Vendor:
SKU: 10404Regular price $185 99Sale price $185 99Unit price perIn stock -
Vendor:
SKU: 10246Regular price From $439 99Sale price From $439 99Unit price perIn stock -
Vendor:
SKU: 11146Regular price From $309 99Sale price From $309 99Unit price perIn stock
Description
Q&A
Documents
More about J&D Manufacturing Variable Speed ES Shutter Fan Single Phase w/Cord
Ideal for barns, greenhouses, farm shops, and building peaks, this heavy-duty, high-efficiency J&D Manufacturing Single Phase Variable Speed Shutter Fans control condensation, minimize fumes, and circulates air in harsh farm environments. Safe and durable, the fan features a plated corrosion-resistant OSHA grill on the intake guard. The balanced heavy aluminum blades and motor combine to deliver maximum airflow and efficiency. Comes prewired with a 9' cord. No assembly required.
Features/Advantages
- Smooth & quiet operation
- Ships fully assembled & ready for installation
- Corded models have 3-prong plug & are pre-wired for 115 Volts
- Balanced 3-bladed prop has a corrosion-resistant coated steel hub
- Coated steel guard allows for easy cleaning & meet OSHA 1910.212(a)(5) requirements to mount at any height on the inlet side of the fan. When mounted, the shutter side should be 7' above the ground
- High-efficiency aluminum shutters with tie bar to reduce shutter flapping & opening on windy days
- Fully enclosed, maintenance-free, direct drive high-efficiency standard motors feature sealed ball bearings & a 2-year manufacturer warranty
- Variable speed controller sold separately
| QC Part # | Mfg Part # | Size | HP | Amps NP | Volts | RPM | CFM | Phase | Cord | Rough Opening |
Weight | Ships Via |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19497-VES10C | VES10C | 10" | 1/8 | 0.9 | 115 | 1,740 | 480 | Single | Yes | 12.5" x 12.5" | 16 lbs | UPS |
| 10735JD | VES12C | 12" | 1/10 | 1.42 | 115 | 1,732 | 800 | Single | Yes | 12.5" x 12.5" | 20 lbs | UPS |
| 10736JD | VES161C | 16" | 1/10 | 1.42 | 115 | 1,720 | 1,220 | Single | Yes | 16.5" x 16.5" | 24 lbs | UPS |
| 10739JD | VES201C | 20" | 1/10 | 1.42 | 115 | 1,709 | 941 | Single | Yes | 20.5" x 20.5" | 28 lbs | UPS |
| 10737JD | VES20C | 20" | 1/3 | 3.8 | 115 | 1,697 | 2,760 | Single | Yes | 20.5" x 20.5" | 32 lbs | UPS |
| 10738JD | VES24C | 24" | 1/2 | 4.8 | 115 | 1,677 | 4,080 | Single | Yes | 24.5" x 24.5" | 45 lbs | UPS |
| 10733 | VES30C | 30" | 1/2 | 6.2 | 115 | 837 | 5,840 | Single | Yes | 30.5" x 30.5" | 60 lbs | UPS |
| JDSVES12 | VES12 | 12" | 1/10 | 1.42/0.77 | 115/230 | 1,732 | 800 | Single | No | 12.5" x 12.5" | 19 lbs | UPS |
| JDSVES161 | VES161 | 16" | 1/10 | 1.42/0.77 | 115/230 | 1,720 | 1,220 | Single | No | 16.5" x 16.5" | 23 lbs | UPS |
| 13445 | VES201 | 20" | 1/10 | 1.42/0.77 | 115/230 | 1,709 | 780 | Single | No | 20.5" x 20.5" | 27 lbs | UPS |
| JDSVES20 | VES20 | 20" | 1/3 | 3.8/1.9 | 115/230 | 1,697 | 2,760 | Single | No | 20.5" x 20.5" | 33 lbs | UPS |
| 13446 | VES24 | 24" | 1/2 | 4.8/2.4 | 115/230 | 1,677 | 4,080 | Single | No | 24.5" x 24.5" | 47 lbs | UPS |
| 10734 | VES30 | 30" | 1/2 | 6.2/3.1 | 115/230 | 837 | 5,840 | Single | No | 30.5" x 30.5" | 58 lbs | UPS |
| 13447 | VES243 | 24" | 1/2 | 2.6/1.3 | 230/460 | 850 | 4,080 | 3 | No | 24.5" x 24.5" | 48 lbs | UPS |
| 13448 | VES303 | 30" | 1/2 | 2.6/1.3 | 230/460 | 846 | 5,940 | 3 | No | 30.5" x 30.5" | 59 lbs | UPS |
