Herdstar BinTrac Load Cell & Mounting Bracket

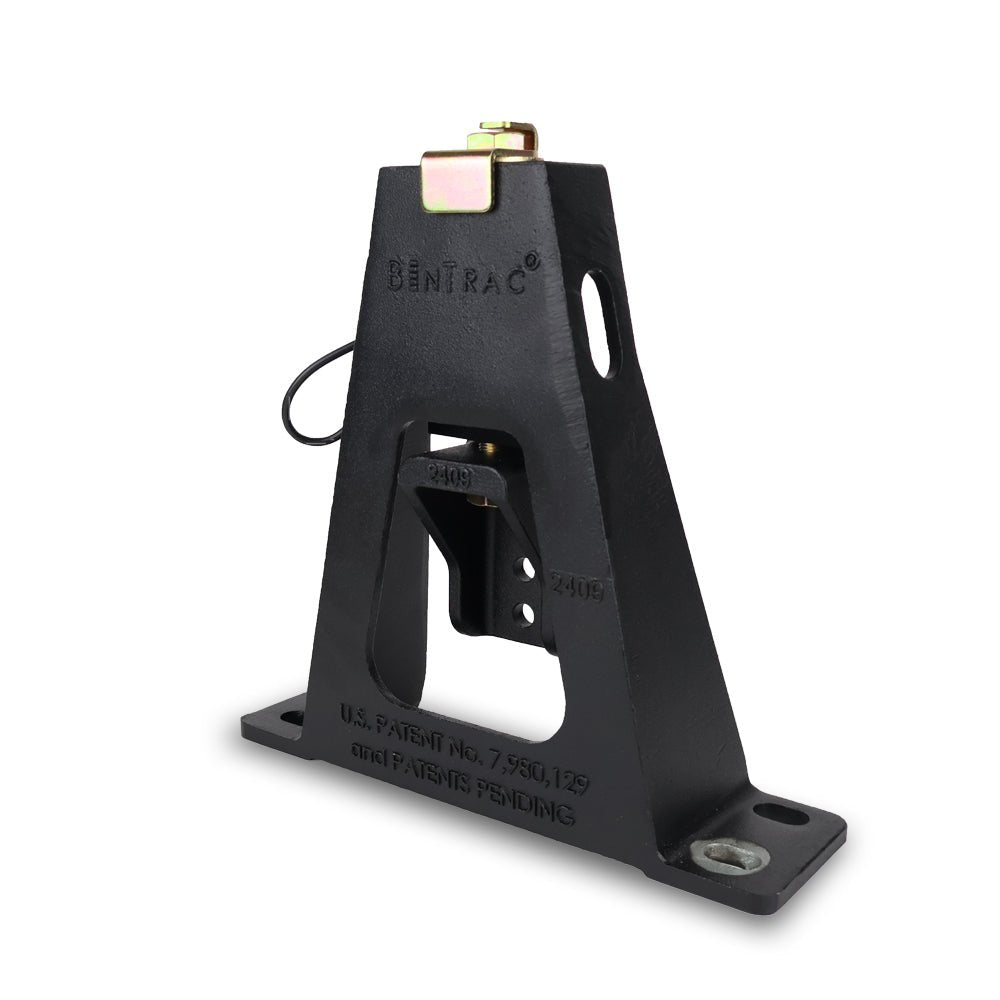

The HerdStar® BinTrac® Load Cell & Mounting Bracket is a reliable feed bin weighing solution designed to provide accurate inventory monitoring for livestock and agricultural operations. Engineered with BinTrac’s patented A-frame mounting bracket design, this system allows for quick and safe installation on both new and existing feed bins — even when bins are fully loaded. The mounting bracket acts as the lifting mechanism, requiring less than 1/2" of bin lift during installation and eliminating the need for shimming, blocking, or field calibration.

Built for durability and precision, the load cell assembly compensates for temperature variations to maintain consistent and accurate feed weight readings. Available in multiple load capacities, the system integrates seamlessly with the BinTrac® weighing platform, helping producers monitor feed usage, delivery weights, and inventory levels in real time. Proprietary surge protection technology helps safeguard the system against electrical surges and lightning damage for dependable long-term performance.

Features & Benefits:

• Patented A-frame mounting bracket for easy installation
• Installs on existing or loaded feed bins
• Requires less than 1/2" bin lift during installation
• No shimming, blocking, or field calibration required
• Temperature-compensated load cell for accurate readings
• Available in multiple weight capacities
• Helps monitor feed inventory and usage in real time
• Surge and lightning protection for improved durability
• Compatible with BinTrac® feed bin weighing systems

Applications:

• Poultry operations
• Swine facilities
• Livestock feed management
• Agricultural and industrial bulk bin monitoring
