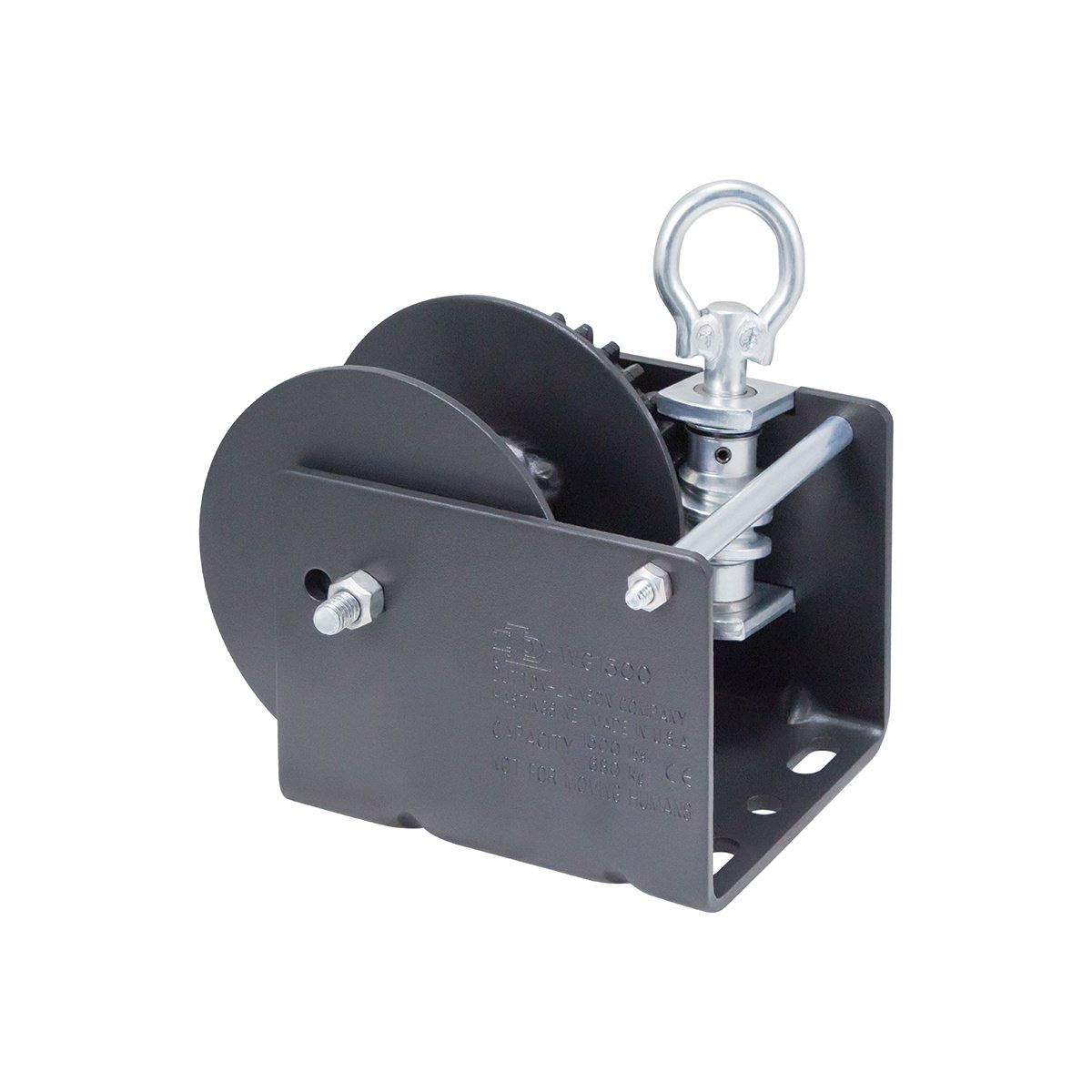

Dutton-Lainson® Worm Gear Winch, Standard Reel - 1,500 lb. Capacity

total reviews

SKU: QC Part #91130 | MFR # 10954
Regular price $81 99
Sale price $81 99 Regular price
Sale Sold out
Reel automatically stops whenever cranking has stopped.
Currently available on backorder
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.

View full details
Description
Reviews
Q&A
Documents

More about Dutton-Lainson® Worm Gear Winch, Standard Reel - 1,500 lb. Capacity

This Dutton-Lainson worm gear winch is designed for horizontal pulling and vertical lifting, It has a 1,500 lb. capacity and a loop drive that allows the winch to be mounted out of reach and operated with a long shepherd hook and, if desired, with a variable speed electric drill. The standard reel automatically stops turning whenever cranking is stopped, locking the load in place. This winch features a powder-coated finish, zinc plated TUFFPLATE® finish on hardware. It will hold up to 81' of 3/16" cable, up to 61' of 7/32" cable, or up to 43' of 1/4" cable (cable sizes smaller or larger than these are not recommended). Color may vary. Made in the U.S.A.

Features/Benefits

  • Permanently lubricated bearings
  • Designed for horizontal pulling and vertical lifting applications
  • 1,500 lb. capacity
  • The loop drive allows winch to be mounted out of reach and operated with a long shepherds hook
  • Standard reel automatically stops turning whenever cranking is stopped, locking load in place
  • Powder coated finish, zinc plated TUFFPLATE finish on hardware
  • Will hold up to 81' of 3/16" cable, up to 61' of 7/32" cable, or up to 43' of 1/4" cable
  • Manufacturer's Limited Five Year Warranty
  • Made in the U.S.A.
Item # Reel
Description
Load
Capacity
Hub
Diameter
Gear
Ratio
Reel
Capacity
Wt.
lbs.
91130 Reg. Drum 1500 1 1/2 30:1 1/4" x 47' 10
91132 Split Drum 1500 1 1/2 30:1 1/4" x 23' 10
91134 Reg. Drum 2000 1 1/2 40:1 9/32" x 45' 11
91136 Split Drum 2000 1 1/2 40:1 9/32" x 22' 11
