Dutton Lainson

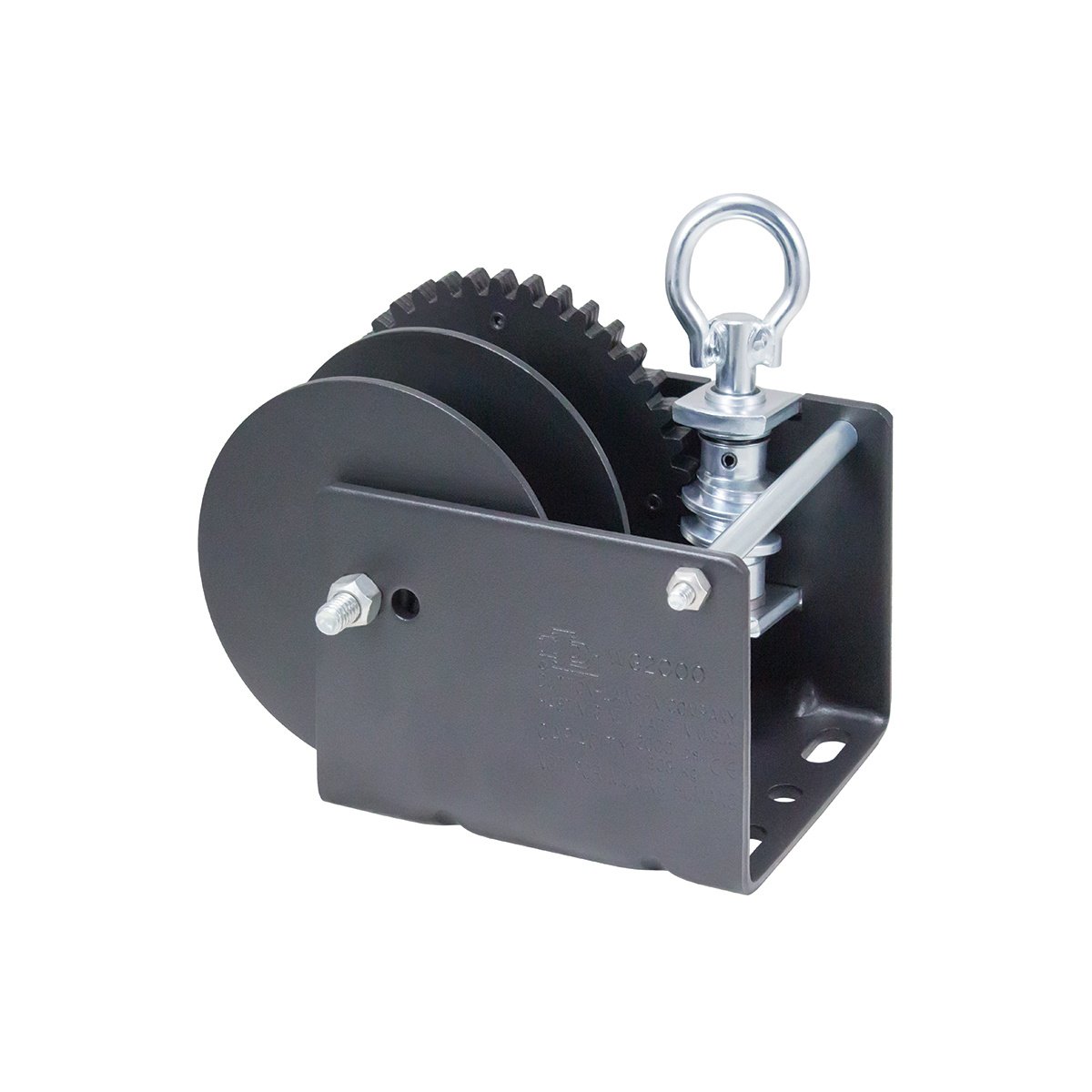

Loop Drive Gear Winch - Split Drum 2,000 lb. Load Capacity

QC Part #91136 | MFR # 10976
$102 99
$102 99
Sale Sold out
Loop drive can be operated by shepard's hook or a variable speed power drill.

View full details
View Related Items
Why QC Supply?
Description
Q&A
Documents

More about Loop Drive Gear Winch - Split Drum 2,000 lb. Load Capacity

This Dutton-Lainson worm gear winch is designed for horizontal pulling and vertical lifting. It has a 2,000 lb. capacity and a loop drive that allows the winch to be mounted out of reach and operated with a long shepherd's hook and, if desired, with a variable-speed electric drill. The split reel automatically stops turning whenever cranking is stopped, locking the load in place. This winch features a powder-coated finish, zinc plated TUFFPLATE® finish on hardware. It will hold up to 82' of 7/32" cable, up to 59' of 1/4" cable, or up to 49' of 9/32" cable (cable sizes smaller or larger than these are not recommended). Color may vary. Made in the U.S.A.

Features/Benefits:

  • Loop drive can be operated by shepard's hook or a variable speed power drill
  • The split reel automatically stops turning whenever cranking is stopped, locking load in place
  • Powder-coated copper bronze finish
  • Permanently lubricated bearings
  • Color may vary
  • Made in the USA
Item # Reel
Description		 Load
Capacity		 Hub
Diameter		 Gear
Ratio		 Reel
Capacity		 Wt.
lbs.
91130 Reg. Drum 1500 1 1/2 30:1 1/4" x 47' 10
91132 Split Drum 1500 1 1/2 30:1 1/4" x 23' 10
91134 Reg. Drum 2000 1 1/2 40:1 9/32" x 45' 11
91136 Split Drum 2000 1 1/2 40:1 9/32" x 22' 11
