Dutton Lainson

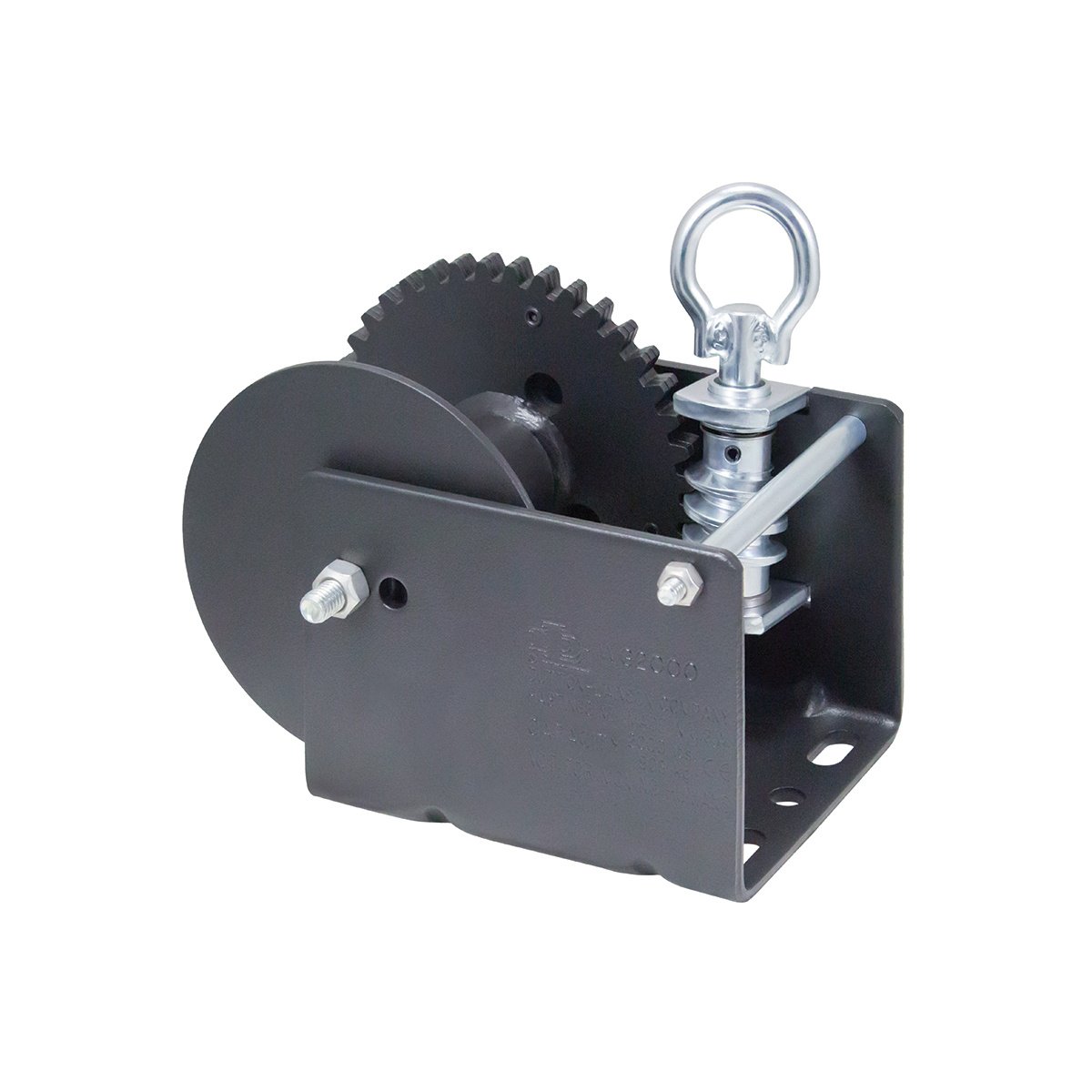

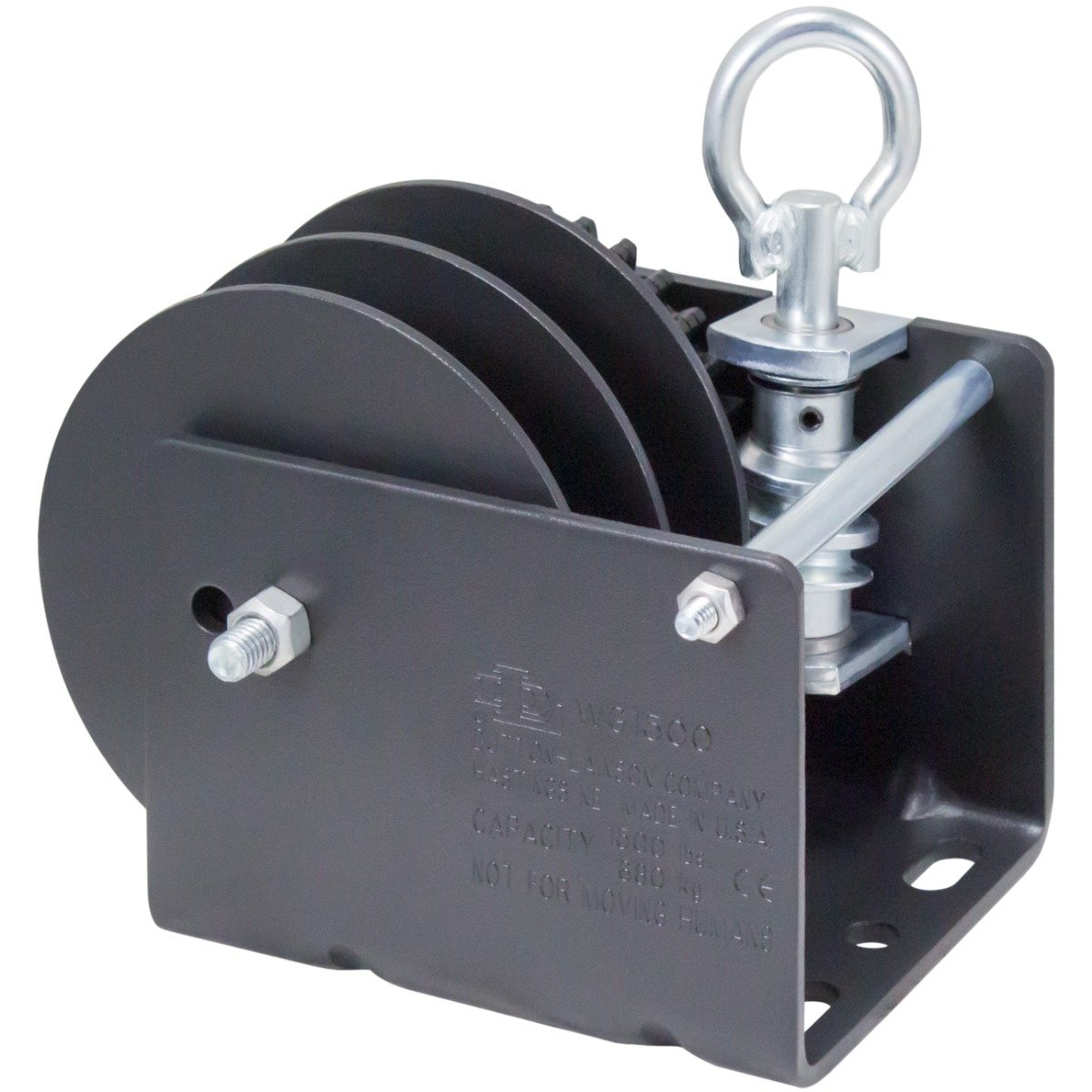

Dutton-Lainson® Worm Gear Winch, Split Reel - 1,500 lb. Capacity

QC Part #91132 | MFR # 10956
$97 99
$97 99
Sale Sold out
The split drum allows cable to pull from opposite directions.
Currently available on backorder
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.

View full details
View Related Items
Description
Reviews
Q&A
Documents

More about Dutton-Lainson® Worm Gear Winch, Split Reel - 1,500 lb. Capacity

The Dutton-Lainson worm gear winch is designed for horizontal pulling and vertical lifting, It has a 1,500 lb. capacity and a loop drive that allows the winch to be mounted out of reach and operated with a long shepherd hook and, if desired, with a variable speed electric drill. The Split reel automatically stops turning whenever cranking is stopped, locking load in place. This winch features a powder-coated finish, zinc plated TUFFPLATE® finish on hardware. It will hold up to 81' of 3/16" cable, up to 61' of 7/32" cable, or up to 43' of 1/4" cable (cable sizes smaller or larger than these are not recommended). Color may vary. Made in the U.S.A.

Features/Benefits

  • Permanently lubricated bearings
  • Designed for horizontal pulling and vertical lifting applications
  • 1,500 lb. capacity
  • The loop drive allows winch to be mounted out of reach and operated with a long shepherds hook
  • Standard reel automatically stops turning whenever cranking is stopped, locking load in place
  • Powder coated finish, zinc plated TUFFPLATE finish on hardware
  • Will hold up to 81' of 3/16" cable, up to 61' of 7/32" cable, or up to 43' of 1/4" cable
  • Made in the U.S.A.
Item # Reel
Description		 Load
Capacity		 Hub
Diameter		 Gear
Ratio		 Reel
Capacity		 Wt.
lbs.
91130 Reg. Drum 1500 1 1/2 30:1 1/4" x 47' 10
91132 Split Drum 1500 1 1/2 30:1 1/4" x 23' 10
91134 Reg. Drum 2000 1 1/2 40:1 9/32" x 45' 11
91136 Split Drum 2000 1 1/2 40:1 9/32" x 22' 11
