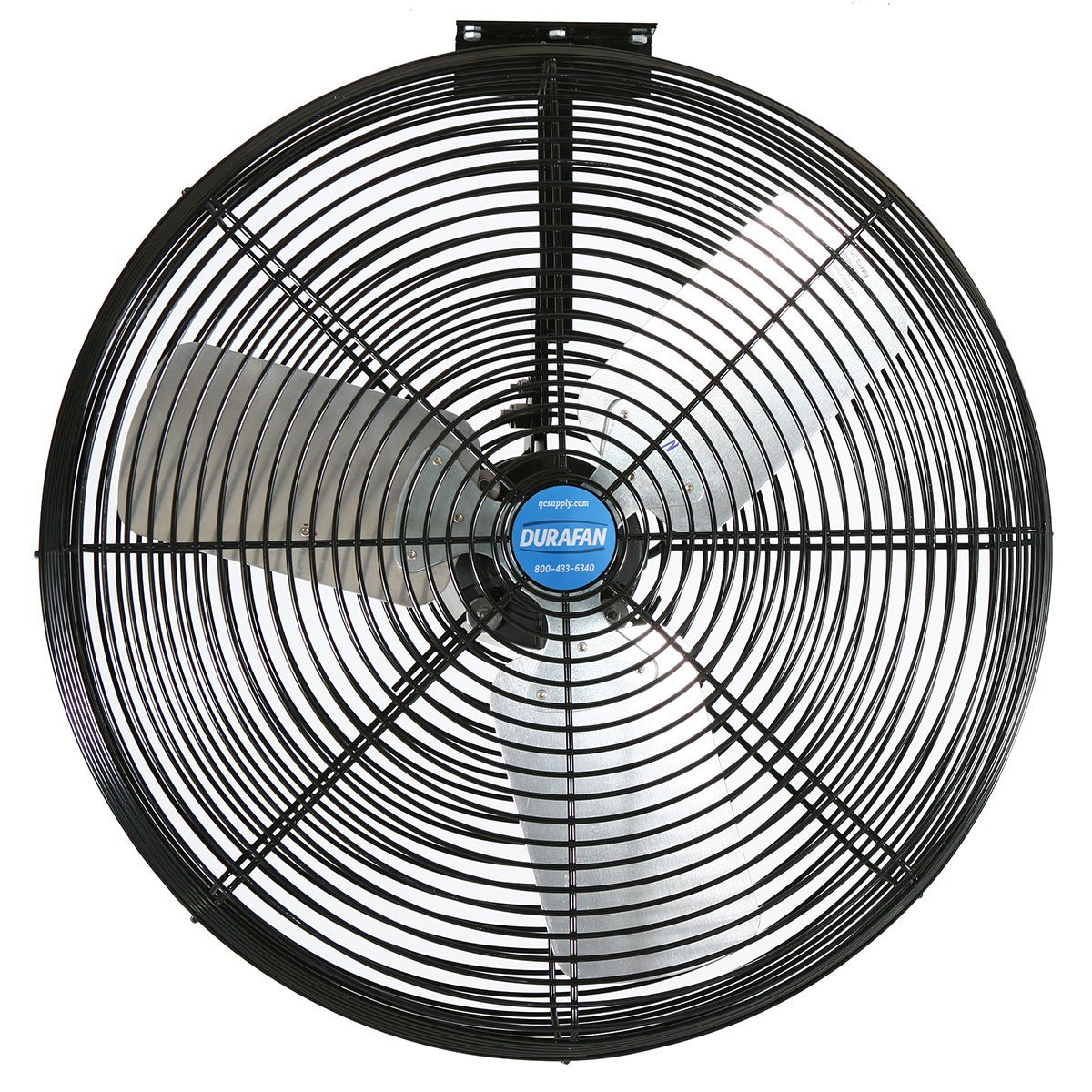

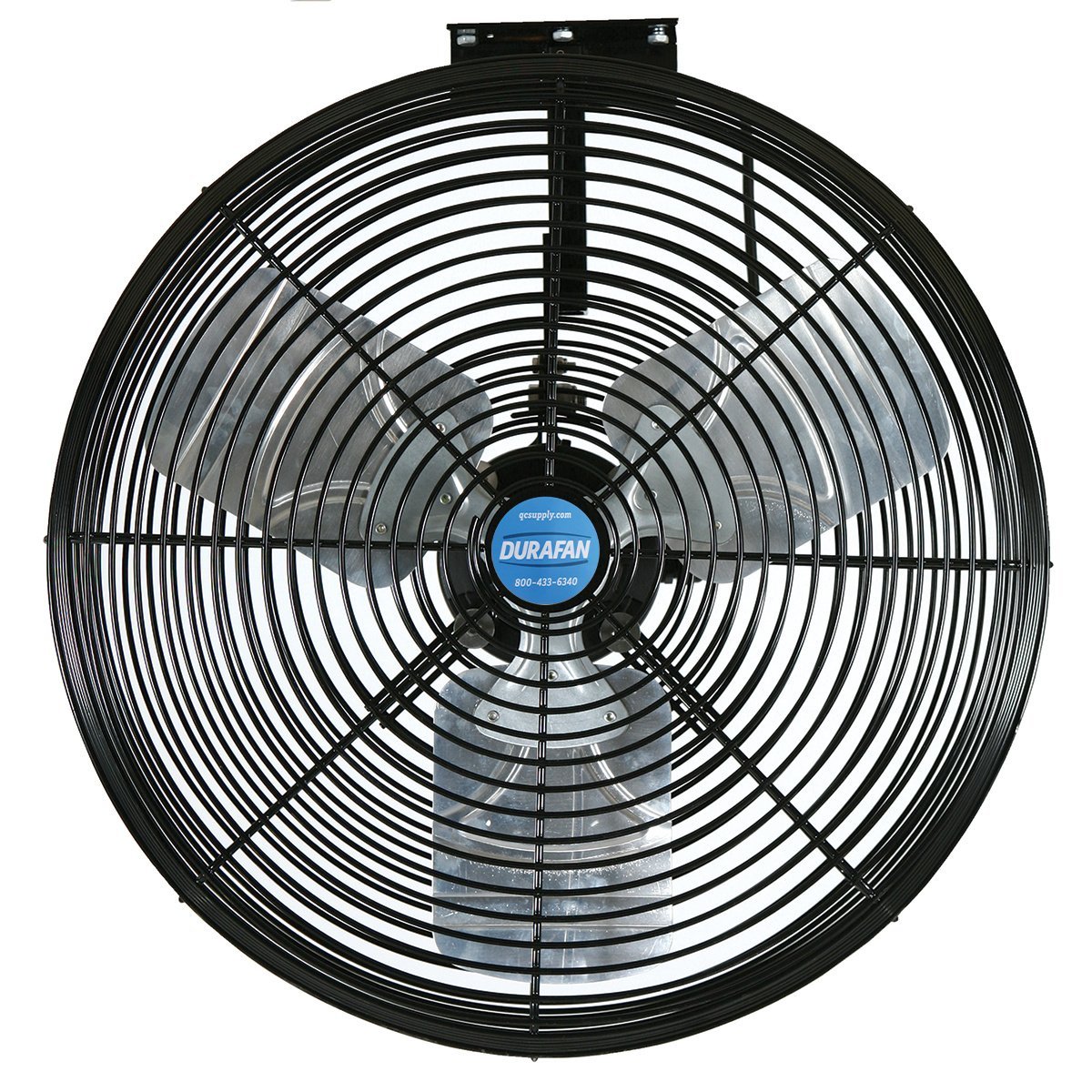

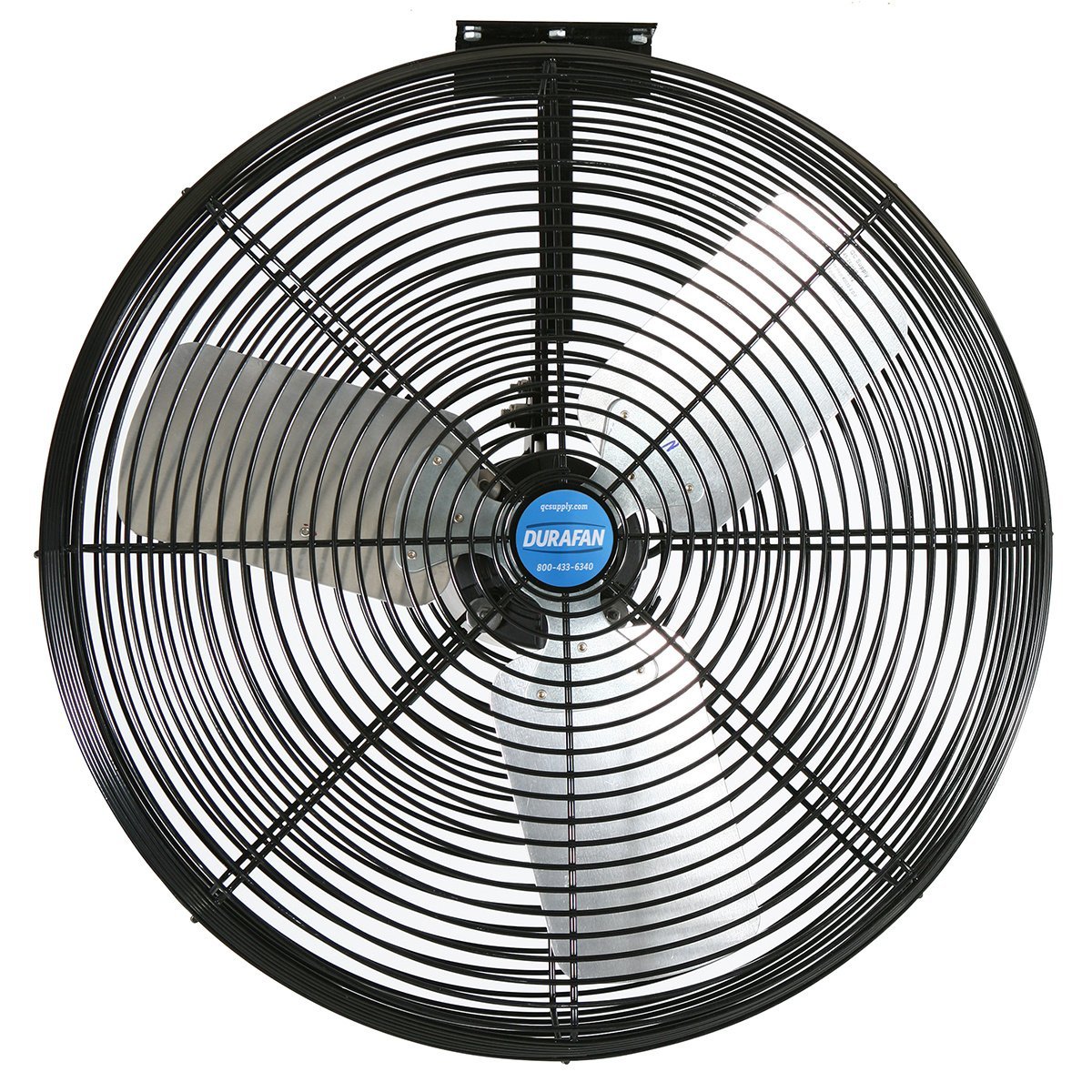

DURAFAN® Black High Volume Basket Fans 20" to 36"

11 total reviews

SKU: QC Part #11551 | MFR # 11551
Regular price $339 99
Sale price $339 99 Regular price
Sale Sold out
Size
Ships within 2 Business Days

View full details
!
NOTE:
This item can not ship via USPS.
Description
Reviews
Q&A
Documents

More about DURAFAN® Black High Volume Basket Fans 20" to 36"

QC Supply’s DURAFAN Basket Fans are specially built to perform in extreme environments, using our exclusive DURAMotor® for long-lasting performance and powerful airflow. Ideal for enclosed spaces like poultry, cattle, horse, and swine barns, as well as warehouses and greenhouses, these fans help improve ventilation, reduce heat stress, and aid in insect control.

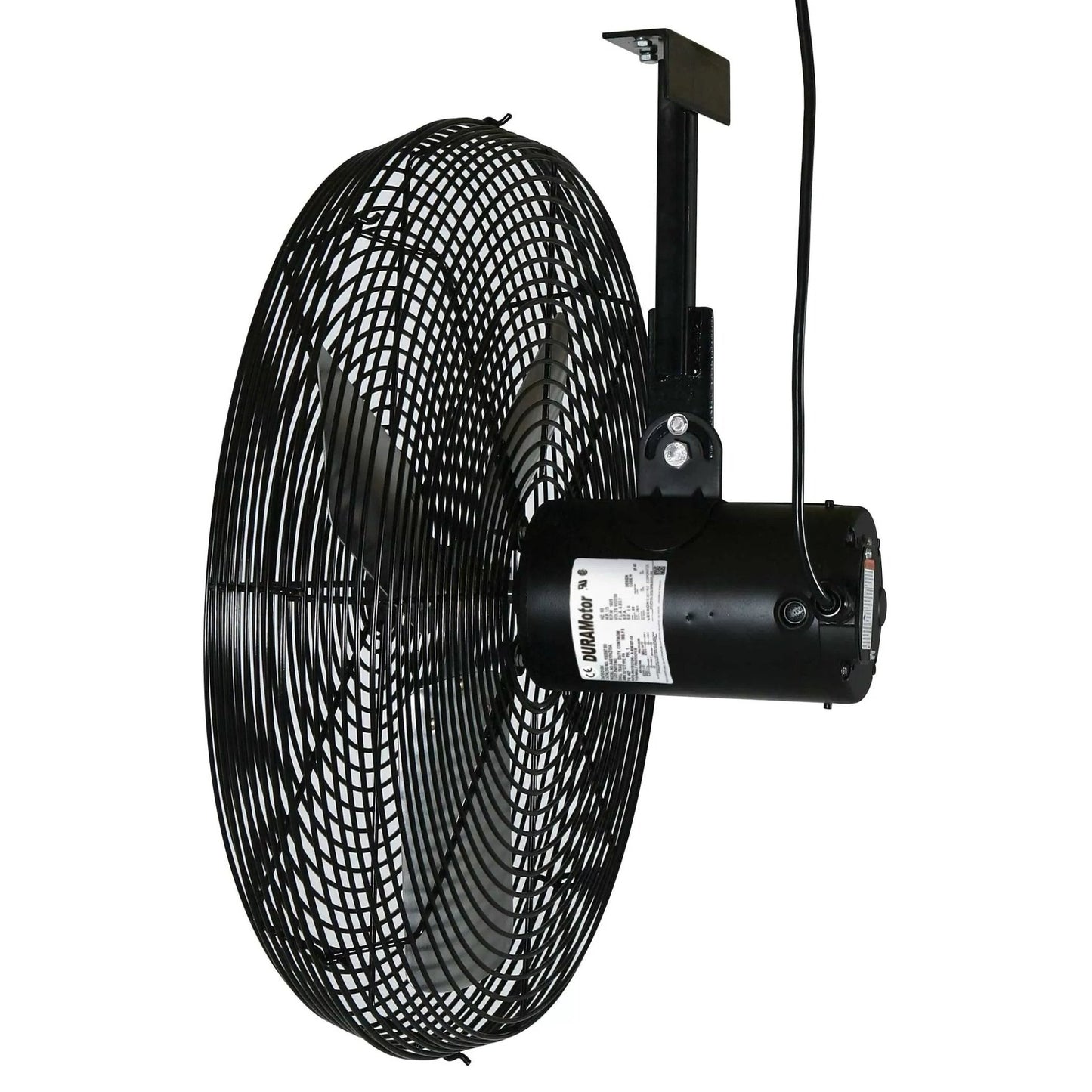

Each fan features an enclosed ball-bearing motor with automatic overload protection. The protective guard has a powder-coated zinc finish to resist corrosion. Fans are easy to disassemble for cleaning and maintenance and come fully assembled with a separate ceiling mount bracket.

The 20" and 24" fans include a 9' 110V grounded cord (can be ordered without a cord—please specify in order comments). The 36" fan does not include a cord.

Fan Blade Details:

  • 20" & 24": Aluminum blades, variable-speed capable (controllers sold separately)
  • 36": Galvanized blades, single-speed

Applications:

  • Cooling livestock barns (dairy, poultry, swine)
  • Ventilating warehouses, docks, and factories
  • Air circulation in greenhouses and enclosed buildings
  • Insect control (effective when air velocity exceeds 300 FPM*)
  • Air movement in shipping trucks and containers
  • Cooling compressors and machines
  • Drying floors, bedding, and workspaces

Available Sizes & Specs:

  • 20" Fan – QC Part #11551
    • CFM: 5,100 | FPM: 1,100 | RPM: 1,725
    • HP: 1/3 | Voltage: 115/230 | Amps: 4.2/2.1
    • Weight: 40 lbs

  • 24" Fan – QC Part #11552
    • CFM: 7,300 | FPM: 1,325 | RPM: 1,725
    • HP: 1/2 | Voltage: 115/230 | Amps: 5.6/2.8
    • Weight: 53 lbs

  • 36" Fan – QC Part #11553
    • CFM: 13,300 | FPM: 925 | RPM: 850
    • HP: 1/2 | Voltage: 115/230 | Amps: 6.6/3.3
    • Weight: 80 lbs

*FPM (Feet Per Minute) measured at 5x fan diameter — e.g., 24" fan measured at 10'.

Filter by rating

Customer Reviews

Based on 11 reviews
82%
(9)
0%
(0)
0%
(0)
9%
(1)
9%
(1)
W
Walking Horse Girl
Moves a lot of air

I have these in my horse barn for the 100 degree summers. Very powerful and long lasting. Had to replace one after 5 years because of a sheared bolt on the screen though the motor was still working. The new one is much quieter but still as effective.

B
BK
24 inch fans

I have 3 of the 24 inch fans now in my horse barn. They work get. Move a lot of air. Horses love them. I have them on all the time. Had my other 2 for 3 or 4 years & they work great.

S
Steers in MO
Great Fan

We have 8 of the 24 inch fan and 3 of the 20 inch in our show Cattle Barn these fans run about 18 hours a day any day it is over 50 degrees we haven’t had any problems with them. Some are 5 years old just ordered 4 more.

b
bad motor
not very durable

have purchased 5 of these fans over the last couple years and the motor has quit on two of them. we use them indoors for show cattle and they have not been subjected to the elements. will not buy again and would not recommend

B
Btwalker
Disappointed in the motor

I believe we have had this fan 3 years. We run it periodically in our barn for cows. I would guess it has around 100 hours of run time and the motor quit. It was never subjected to the elements or has been wet. I am disappointed in how long the motor lasted versus other brands of fans we run. Cost to repair was higher than a replacement motor.

Customer Reviews

Based on 11 reviews
82%
(9)
0%
(0)
0%
(0)
9%
(1)
9%
(1)
W
Walking Horse Girl
Moves a lot of air

I have these in my horse barn for the 100 degree summers. Very powerful and long lasting. Had to replace one after 5 years because of a sheared bolt on the screen though the motor was still working. The new one is much quieter but still as effective.

B
BK
24 inch fans

I have 3 of the 24 inch fans now in my horse barn. They work get. Move a lot of air. Horses love them. I have them on all the time. Had my other 2 for 3 or 4 years & they work great.

S
Steers in MO
Great Fan

We have 8 of the 24 inch fan and 3 of the 20 inch in our show Cattle Barn these fans run about 18 hours a day any day it is over 50 degrees we haven’t had any problems with them. Some are 5 years old just ordered 4 more.

b
bad motor
not very durable

have purchased 5 of these fans over the last couple years and the motor has quit on two of them. we use them indoors for show cattle and they have not been subjected to the elements. will not buy again and would not recommend

B
Btwalker
Disappointed in the motor

I believe we have had this fan 3 years. We run it periodically in our barn for cows. I would guess it has around 100 hours of run time and the motor quit. It was never subjected to the elements or has been wet. I am disappointed in how long the motor lasted versus other brands of fans we run. Cost to repair was higher than a replacement motor.
