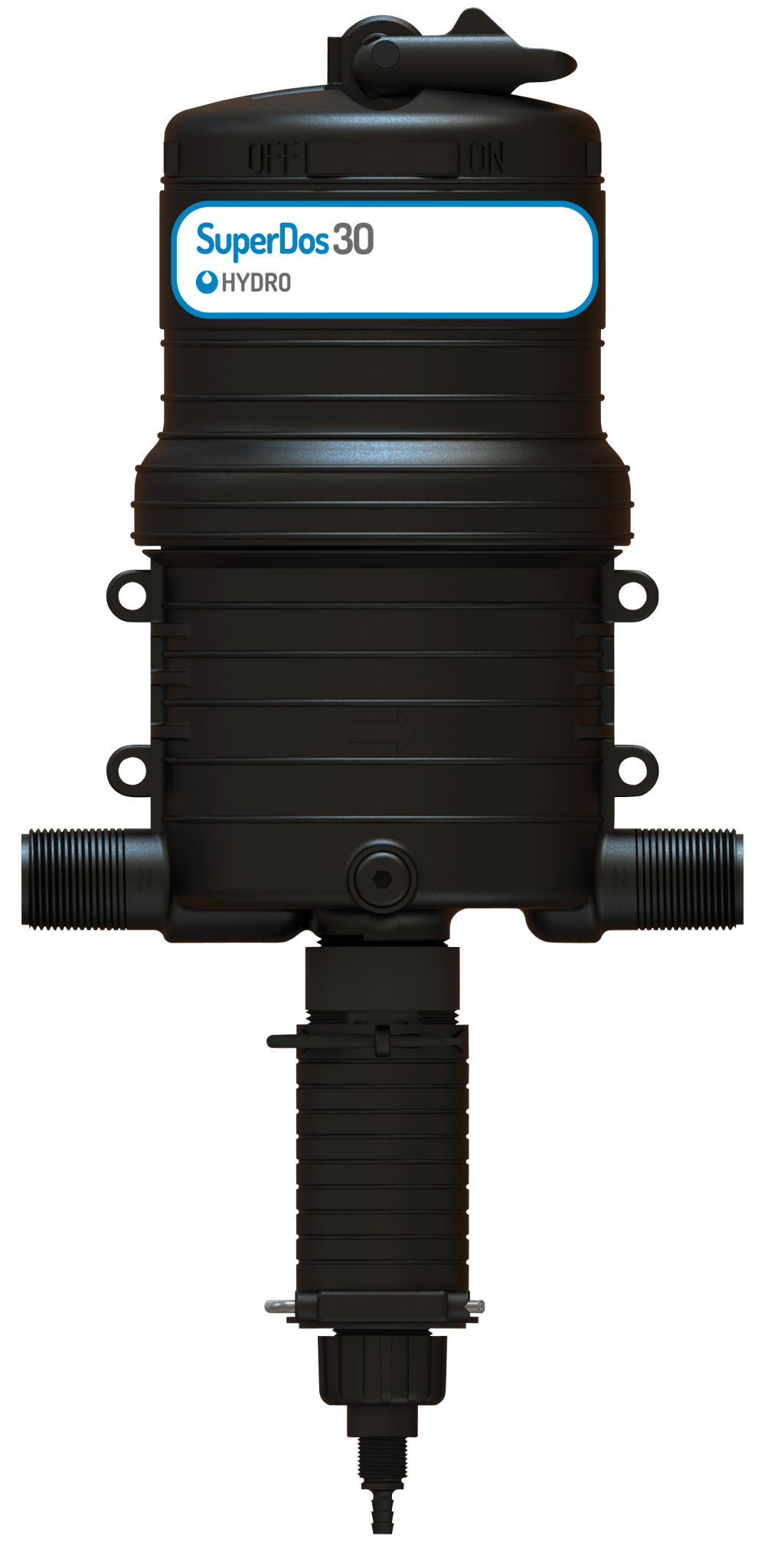

Dosmatic® SuperDos® 30

Dosmatic® SuperDos® mid-high flow, water-driven proportional injectors are a low-cost alternative to traditional electric technology. Unlike traditional electric pumps, the SuperDos® Injectors eliminate the need for electricity and can operate in remote areas.

They are easy to install and maintain, making them ideal for mid-high-flow injection applications.

Features/Advantages:

• Precisse additive injection — proportional positive displacement ensures that just the right amount of chemical is injected each and every time regardless of pressure and flow
• Safe and cost effective — patented one-way mixing chamber gasket prevents chemical contact with motor piston
• Durable body construction — the engineered proprietary composite material withstands severe weather, the chemicals used for injection, and higher operating pressures
• New mixing chamber design ensures a more complete mixing of water and injected chemicals before leaving the unit
• Existing connections for a remote discharge kit
• Standard NPT inlet and outlets eliminate the need for a separate connections kits
• Same three lower end service parts exchange between SuperDos® and Advantage models

#120446 — 0.3% Specifications:

• Flow Rate: 0.15 GPM to 30 GPM
• Feed Ratio: 0.025% to 0.30% (1:4000 - 1:333)
• Operating Pressure: 5–100 PSI
• Inlet/Outlet: 1” NPT
• Maximum Temp: 100° F
• Minimum Temp: 34° F
• Housing Material: Proprietary Engineered Composite
• Weight: 10 lbs.

#120447 — 2.5% Specifications:

• Flow Rate: 0.15 GPM to 30 GPM
• Feed Ratio: 0.02% to 2.5% (1:500 - 1:40)
• Operating Pressure: 5 - 100 PSI
• Inlet/Outlet: 1” NPT
• Maximum Temp: 100° F
• Minimum Temp: 34° F
• Housing Material: Proprietary Engineered Composite
• Weight: 10 lbs.

Injector Includes: Suction Hose & Filter, Mounting Bracket, Wear Parts Kit, Operating Manual

Recommended Accessories: 140 Mesh Filter, Check Valve, Pressure Regulator, Flow Restrictor

Applications:

• Food processing treatments where disinfecting and surface cleaning are needed
• Firefighting and prevention applications
• Horticulture treatments
• Metal processing and parts wash treatments
• Pest control applications
• Odor misting control
• Vehicle wash treatments
• Water treatment

Looking for parts? We carry most repair kits and parts for the MiniDos® and SuperDos® lines of Injectors. If you can't find what you need, ask our sales staff to find your part.
