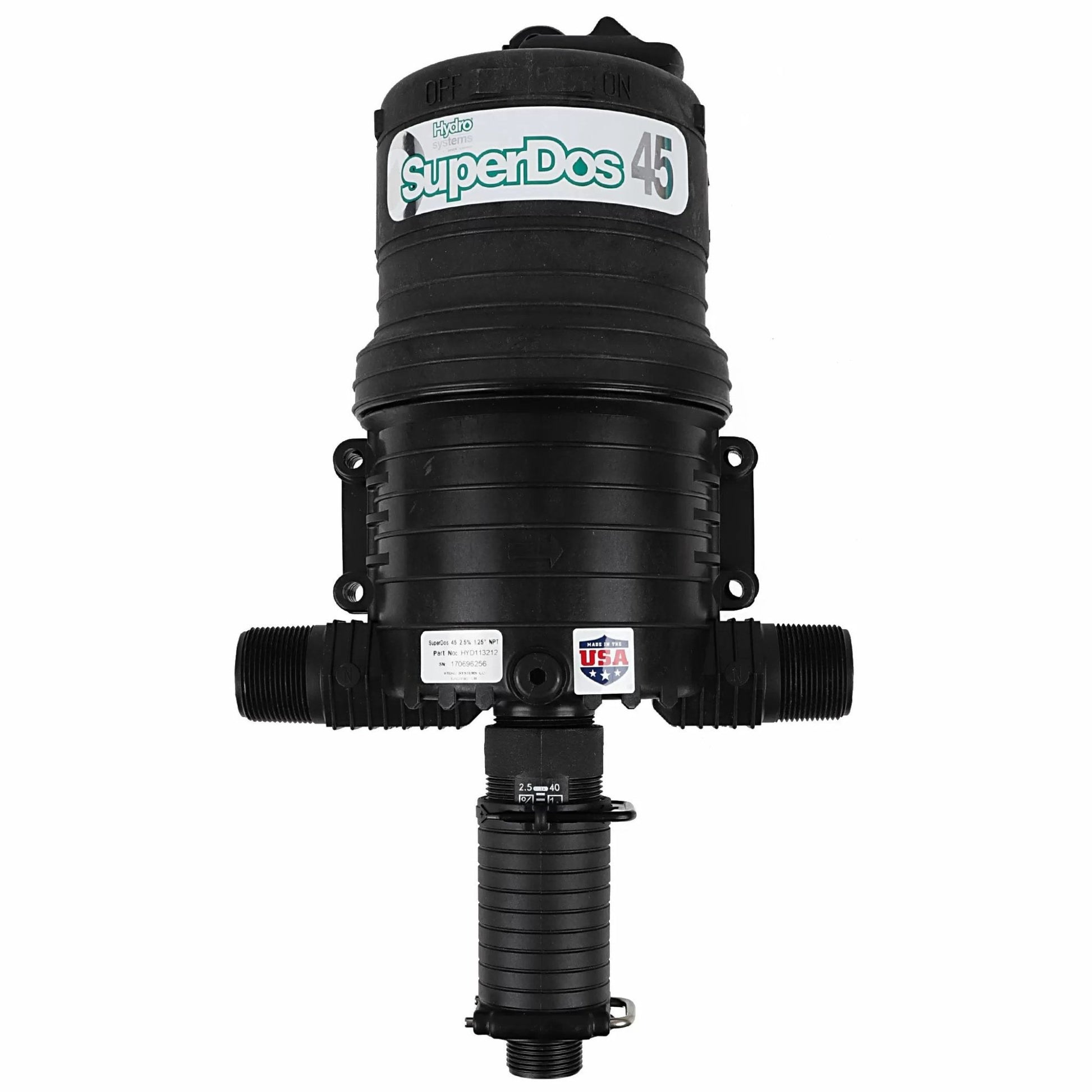

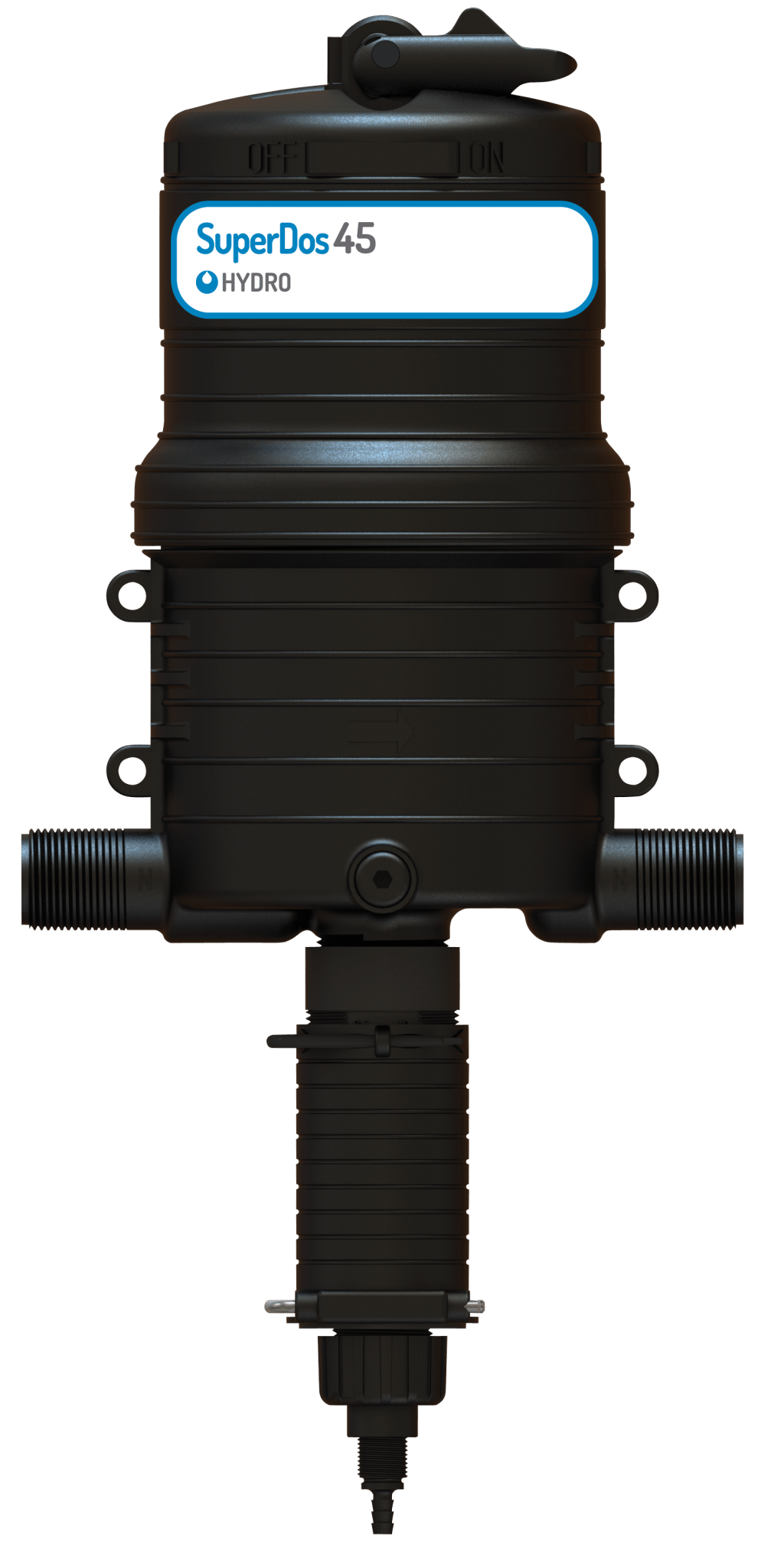

Dosmatic® SuperDos® 45 - 2.5%

DosmaticSuperDosmid-high flow, water-driven proportional injectors are a low-cost alternative to traditional electric technology. Unlike traditional electric pumps, the SuperDosInjectors eliminate the need for electricity and can operate in remote areas.

They are easy to install and maintain, making them ideal for mid-high-flow injection applications.

Features/Advantages:

• Precise additive injection proportional positive displacement ensures that just the right amount of chemical is injected each and every time regardless of pressure and flow
• Safe and cost effective patented one-way mixing chamber gasket prevents chemical contact with motor piston
• Promotes homogeneous mixing
• Durable body construction the engineered proprietary composite material withstands severe weather, the chemicals used for injection, and higher operating pressures
• New mixing chamber design ensures a more complete mixing of water and injected chemicals before leaving the unit
• Perfect for wettable powders and liquid chemicals
• Existing connections for a remote discharge kit
• Standard NPT inlet and outlets eliminate the need for a separate connections kits
• Same three lower end service parts exchange between SuperDos and Advantage models

Specifications:

• Flow Rate: 0.50 GPM to 45 GPM
• Feed Ratio: 0.2% to 2.5% (1:500 - 1:40)
• Operating Pressure: 5100 PSI
• Inlet/Outlet: 1 1/4" NPT
• Maximum Temp: 100 F
• Minimum Temp: 34 F
• Housing Material: Proprietary Engineered Composite
• Weight: 10 lbs.

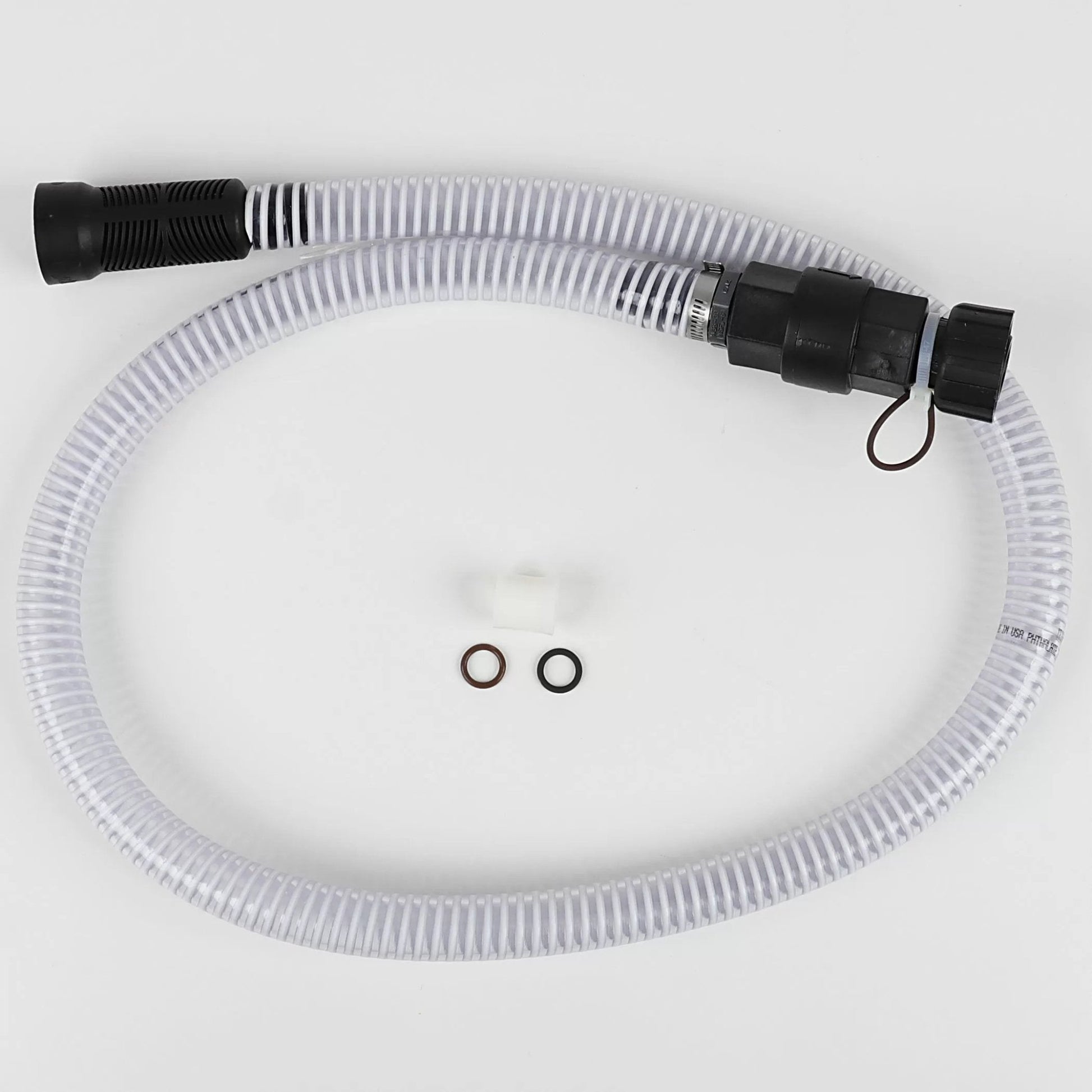

Injector Includes: Suction Hose & Filter, Mounting Bracket, Wear Parts Kit, Operating Manual

Recommended Accessories: 140 Mesh Filter, Check Valve, Pressure Regulator, Flow Restrictor

Applications:

• Food processing treatments where disinfecting and surface cleaning are needed
• Firefighting and prevention applications
• Horticulture treatments
• Metal processing and parts wash treatments
• Pest control applications
• Odor misting control
• Vehicle wash treatments
• Water treatment

Looking for parts? We carry most repair kits and parts for the MiniDos and SuperDos lines of Injectors. If you can't find what you need, ask our sales staff to find your part.
