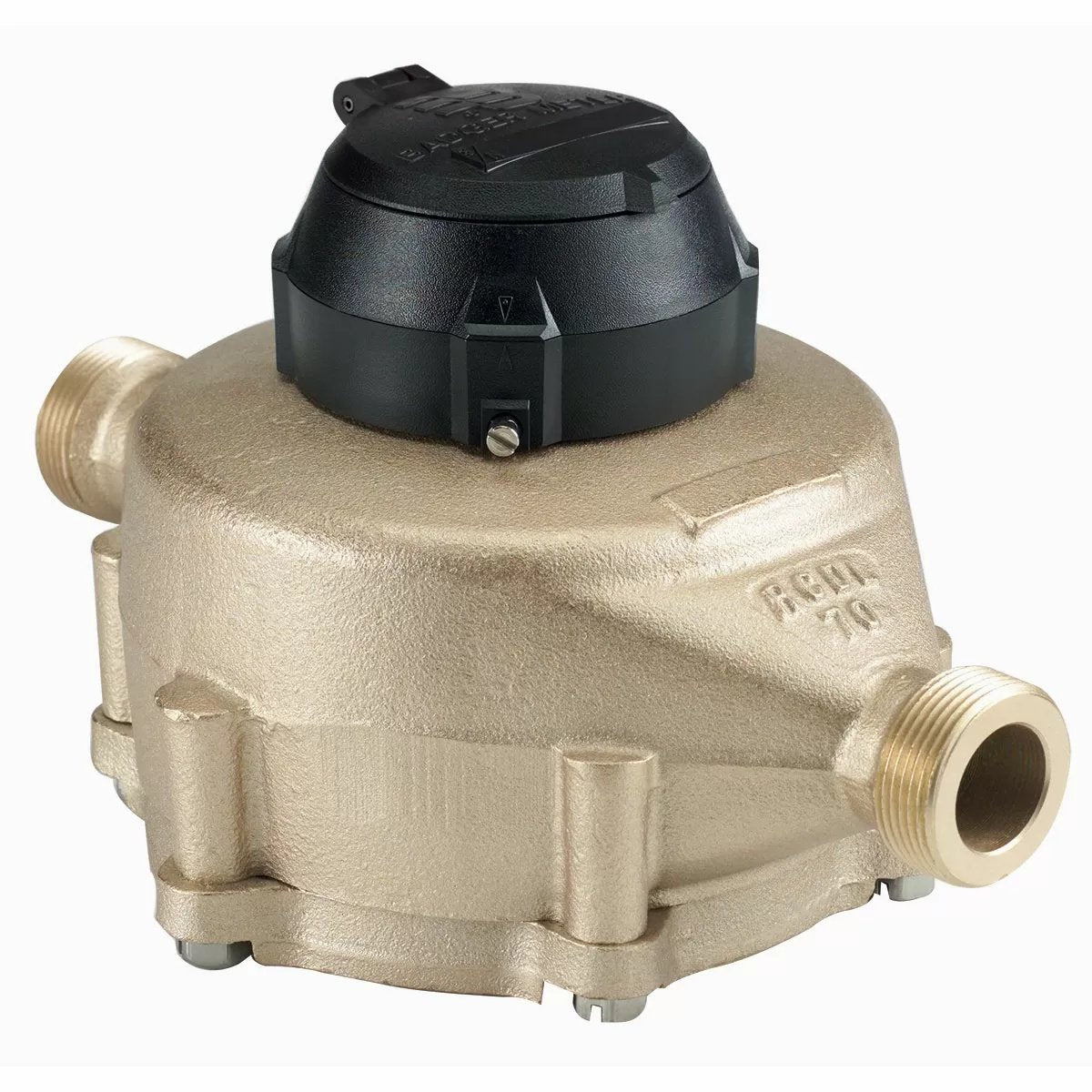

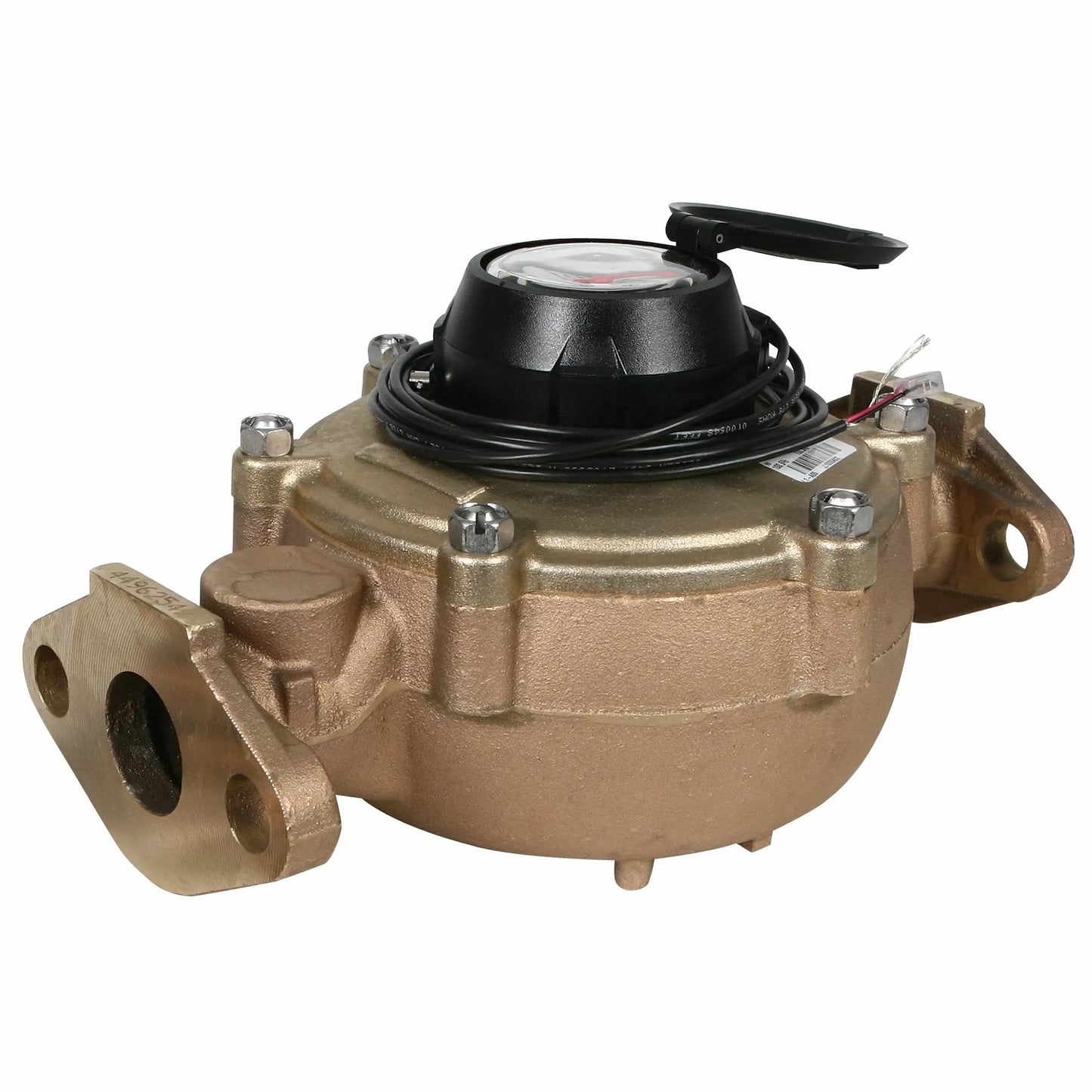

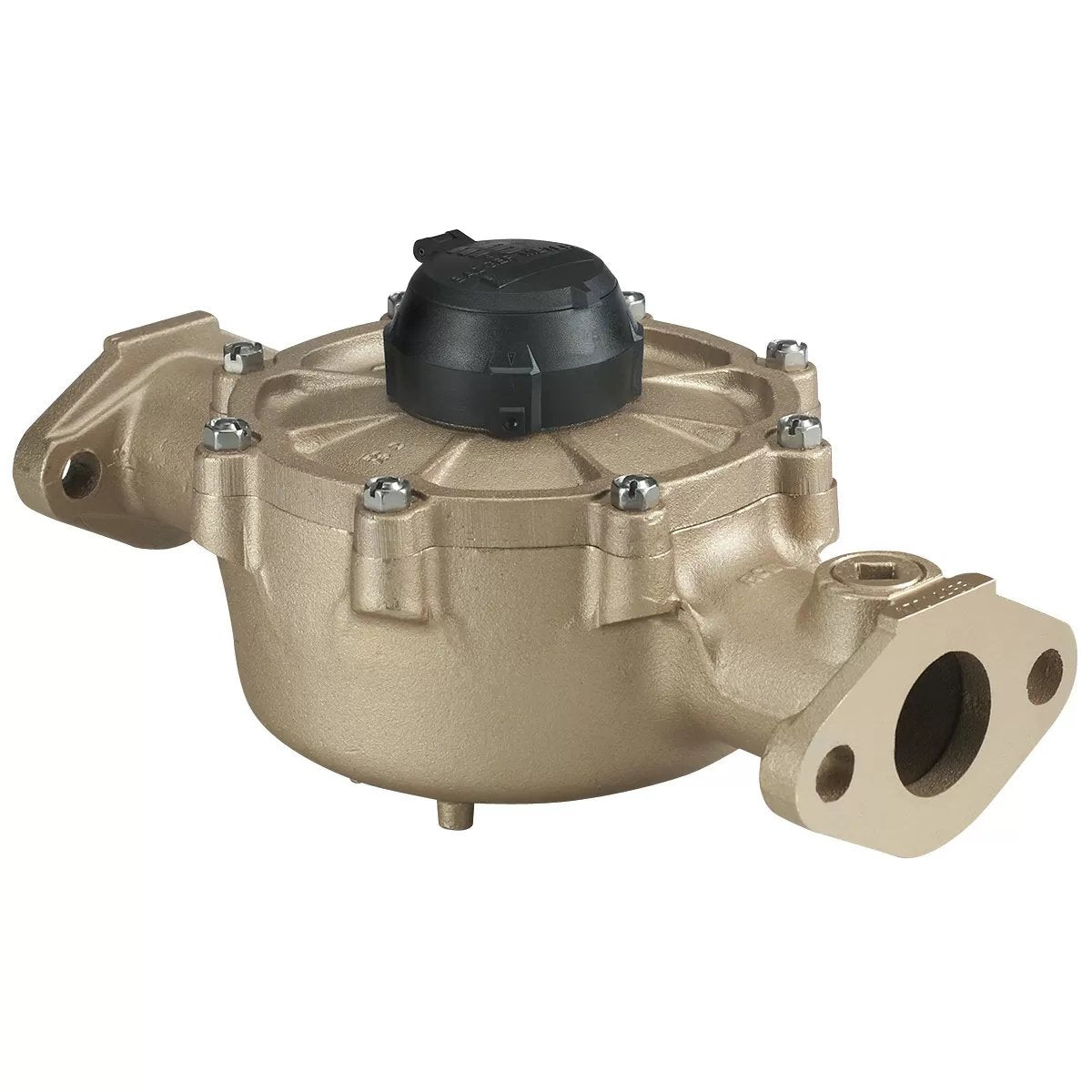

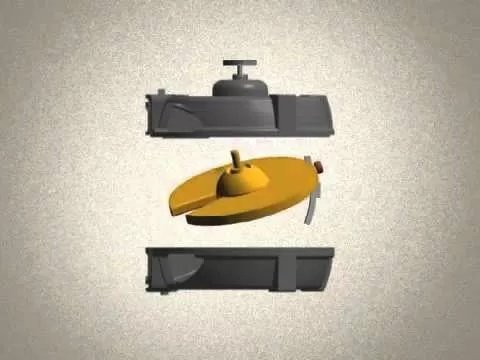

These Badger Meter® Positive Displacement Bronze Water Meters have digital pulsers and use a nutating disc.
Features/Specifications
- Meter complies with NSF/ANSI standard 61
- Sizes Available: 1", 1 1/2" & 2"
- Maximum Working Pressure: 150 PSI
- Maximum Water Temperature: 80° F
- Pulser unit features a normally open contact, which requires power from external source with a 3 amp max rating on limit switch contacts
- Meters with reset table counters also available
- Also available without a digital pulser
QC Supply Part # | Size | Max Flow |
---|---|---|
120492 | 1" NPT | 50 GPM |
120494 | 1 1/2" FPT | 80 GPM |
120495 | 2" FPT | 100 GPM |
120497 | 1 1/2" NPT with Digital Pulser | 50 GPM |
120493 | 1" FPT with Digital Pulser | 80 GPM |
120496 | 2" FPT with Digital Pulser | 160 GPM |
Available Adapters
QC Supply Part # | Item Name |
---|---|
130770-3G | 1 1/2" x 3" Pipe Nipple |
130771-3G | 2" x 3" Pipe Nipple |
130801 | 1 1/2" Union |
