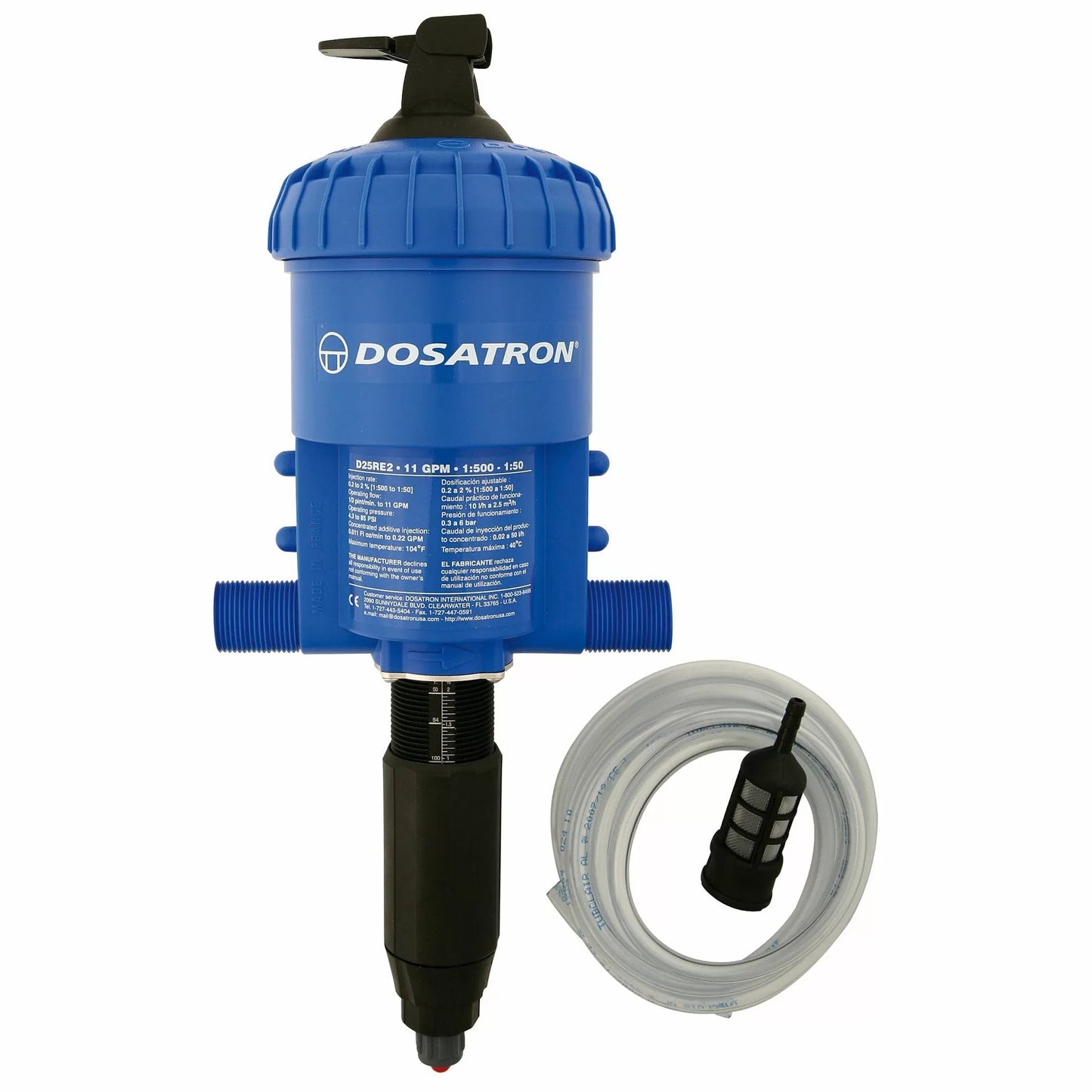

The original Dosatron® Medicator (D128R) has been enhanced with an adjustable sleeve and the capabilities of the 11 GPM unit to create the new Dosatron® D25RE2. The Medicator has an adjustable ratio sleeve for quick, easy change and a dramatic reduction of internal parts. The D25RE2 Medicator has a maximum flow rate of 11 gallons per minute and a by-pass for easy cleaning.
- Injection Percents: 0.2% - 2%
- Maximum Temp: 104° F
- Housing Material: Polyacetal (Standard Blue)
- Dimensions: 14" x 6 1/4"
- Weight: 4 lbs.
- Included Accessories: 6' Clear Suction Tube, Strainer, Weight, Mounting Bracket and Operating Manual
- Recommended Accessories: 200 Mesh Filter, Check Valve, Pressure Regulator, Flow Restrictor
Also available without bypass top (#120610, sold separately)
|Item #||Model||Flow Rate||Injection Ratio||Oper. Pressure||Inlet/Outlet|
|120606||D128R||.09-7 GPM||1:200,1:128,1:100||7-70 PSI||3/4" NPT|
|120607||D25RE2 W/Bypass Top||.05-11 GPM||1:500 to 1:50||4.3-85 PSI||3/4" NPT|
|120610||D25RE2 W/O Bypass Top||.05-11 GPM||1:500 to 1:50||4.3-85 PSI||3/4" NPT|
|120605||D8R||2.2-40 GPM||1:500 to 1:50||2-110 PSI||1 1/2" NPT|
|120608||D25F||.05-11 GPM||1:128||4.3-85 PSI||3/4" NPT|
|Manufacturer Part Number||D25RE2BPVFII|
Manuals & Resources
- 120607-D25RE2 Owner's Manual
- 120607-D25RE2 Schematic
- 120607-D25RE2 Spec Sheet
- 120607-D25RE2 TroubleShooting Guide
- 120607-D25RE2 Dilution Conversions Chart
these pumps are terrific
i've installed many of these. they are very easy to use. i like the flexibility they provide. Dosatron provides good support, great instructions and there is a useful smartphone app.
I trust in Dosatron products for perform
Dosatron we use in poultry farms as clorinator, very good product for our necesities.
