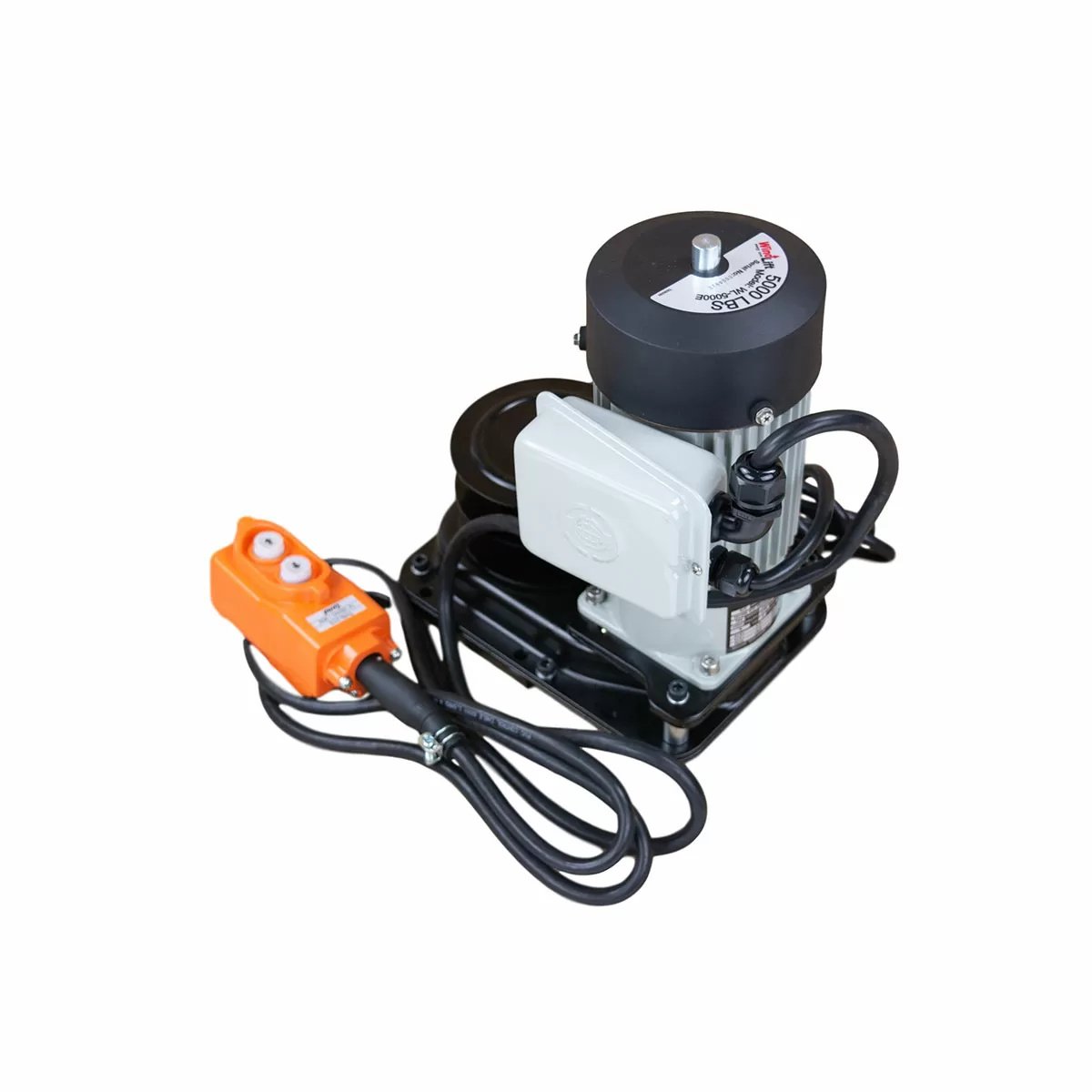

WindLift 5000 Electric Ceiling Winch

The WindLift 5000 Electric Ceiling Winch has a 5,000 pound rated capacity on the first layer of cable or strap around the drum. It comes pre-wired with a motor and controller for easy installation. This ceiling winch was built to withstand the harsh conditions in poultry, turkey, and swine buildings.

The brake motor allows for a sure and safe stop. No assembly required, to install the winch simply plug it in, and press up or down.

Specifications

• 5,000 lb. rated capacity based on the first layer of cable or strap around the drum. Additional layers reduce capacity
• New manual override option
• 3/4 HP motor
• 1,670 RPM motor with a 6/1 reduction for a net motor RPM of 278 and drum RPM of 3.09
• Lift speed approximately 2 feet per minute at the drum
• Voltage: 110-115
• Amperage: 7 at full load
• Weight: 42 lbs
• Drum ID: 2" - OD 5 1/2"
• 9' power cord & 9' controller cord
• Holds approximately 64' of 3/16" cable
• Recommended 2:1 double-back for loads exceeding 2,500 lbs
