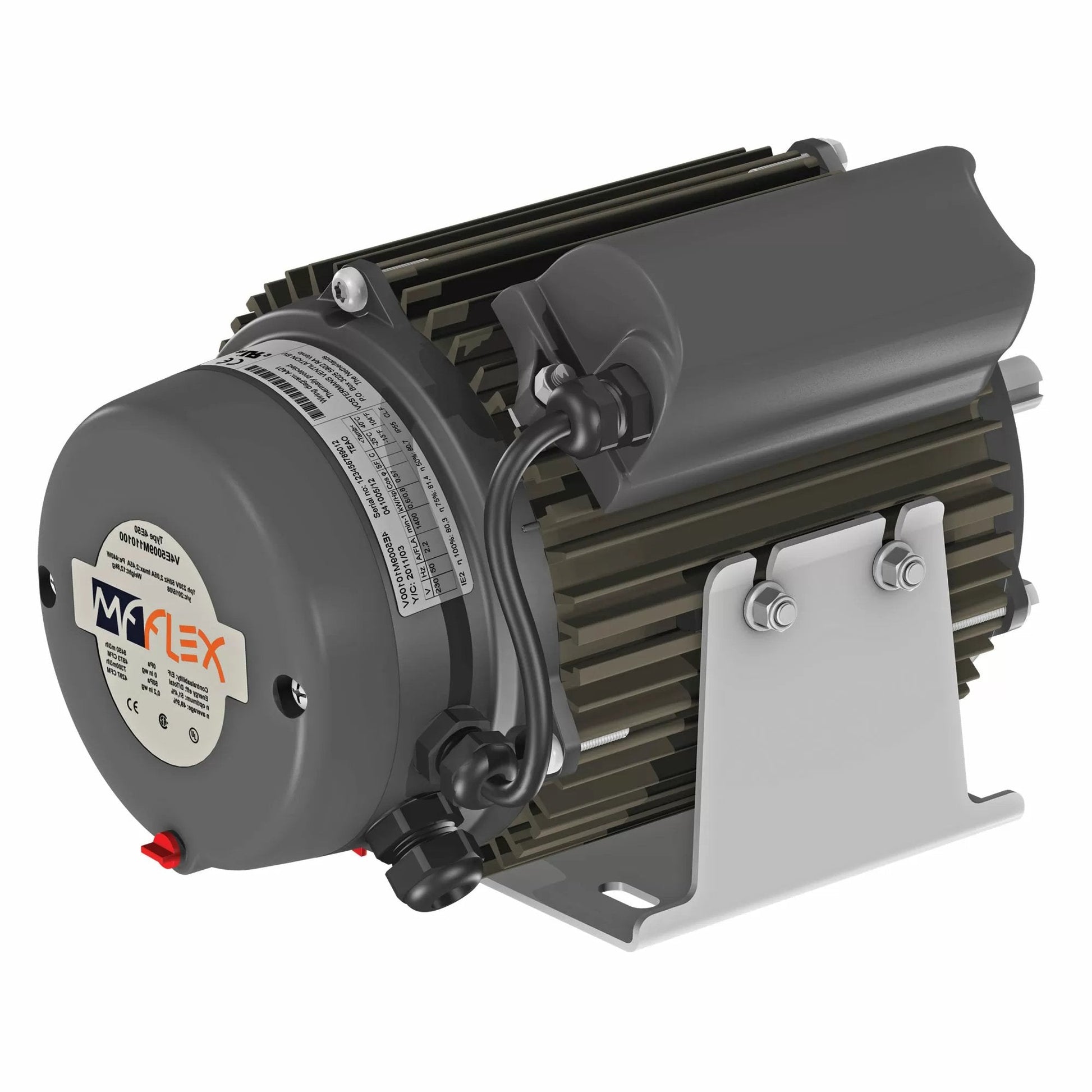

Vostermans Mf-Flex 1.5 HP Universal Fan Motor

Built to perform well in the harsh environment of livestock buildings, the Vostermans Mf-Flex 1.5 HP Universal Fan Motor is designed for belt-driven fans. Highly rated for its durability, efficiency and reliability, this totally enclosed air over motor is housed in corrosion-resistant anodized aluminum.

Facts & Advantages

• High-quality with proven reliability
• Extensive motor line with 3-year manufacturer warranty
• UL recognized
• Insulation Class F
• IP55
• Suitable for use in harsh environments
• Mounts horizontally or vertically
• Applicable for belt-driven fans
• Possibility to mount to NEMA 48/56 support

Features

• Durable, Reliable Motor
  • TEAO motor
  • Usage of high-quality materials
  • Automatic thermal protection and internal heat resistance up to 311° F (for single phase only, 3-phase optional)
  • Class F insulation
  • UL recognized (60 Hz only)
  • Built according to NEMA
• Long Lifetime
  • Proven reliability
  • Cooling ribs maximize the cooling surface area
  • Coated rotor & stator
• Motor Cover
  • Non-combustible man-made material
• Condensation Drain Plugs
  • Includes 3 condensation drain plugs (to be removed) depending on the position of the motor
• Applicable in Extreme Circumstances
  • Suitable for use in harsh environments
  • Wash-down motor (IP55)
  • Aluminum anodized surface motor housing
  • Aluminum, electro-coated motor shields
• Specially Sealed Bearings
  • High performance lubricant withstands internal temperatures up to 311° F
  • No re-greasing required
• Start-Up Capacitor w/Electronic Disjunction
  • Low failure rate in comparison to mechanical capacitors
• Splash Ring
  • Unique splash ring between motor housing and impeller against moisture entry
• Specially Designed T-Slots
  • In order to mount the motor in various positions & with various supports (e.g. NEMA frames)

*Motor rating valid for 230V. Applicable within voltage range of 208-230V.
Note: Motors can only be used for fan applications. Motors are TEAO and can only be applied in the airstream.

Note: This motor will not work with Portacool Evaporative Coolers, or other "swamp" coolers. Call us at 1-888-433-5275 for help choosing a motor for these coolers.
