Vinyl-Insulated Butted Seam Butt Connectors

Vinyl-Insulated Butted Seam Butt Connectors are terminals used to mate, connect, or terminate a single wire. The vinyl material acts as an economic insulation and the butted seam is the most common type of terminal barrel. Great for marine vehicles, or other applicatoins that utilize wire to transfer electrical current.

Features & Benefits

• This series is the most economical insulated terminal available
• PVC insulation sleeve is securely fastened to the butted seam barrel
• The insulation has a flared entry for easier wire insertion
• Rated 600 volts maximum for building wire; 1000 volts maximum for signs and fixtures
• Industry standard color-coding indicates wire range
• Temperature Rating: 105° C (221° F)

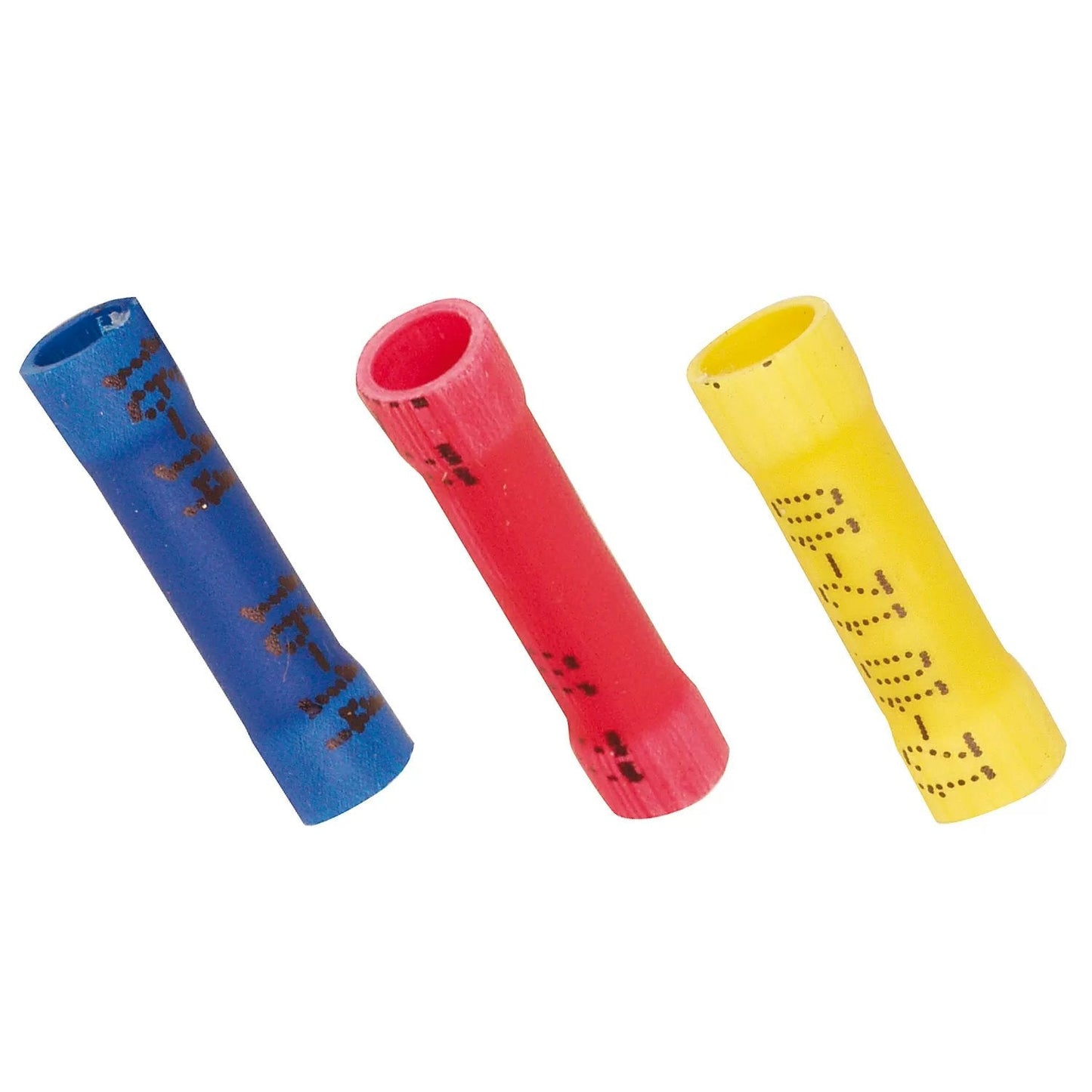

Available Sizes

• Blue: 16-14 Gauge
• Red: 22-18 Gauge

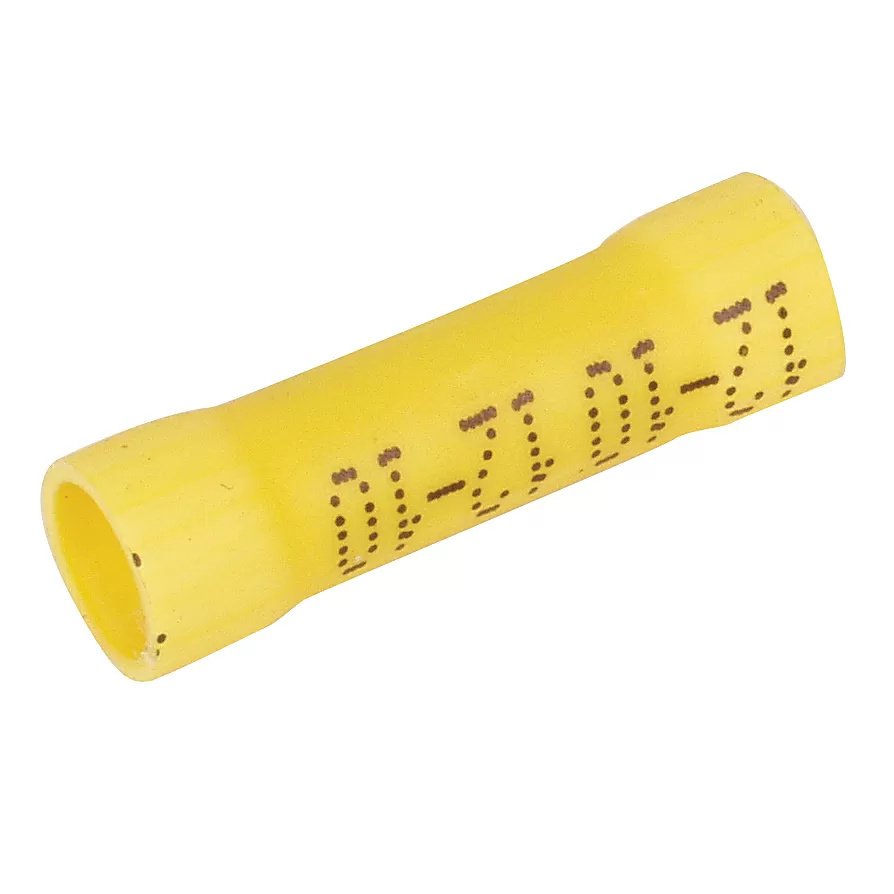

• Yellow: 12-10 Gauge
