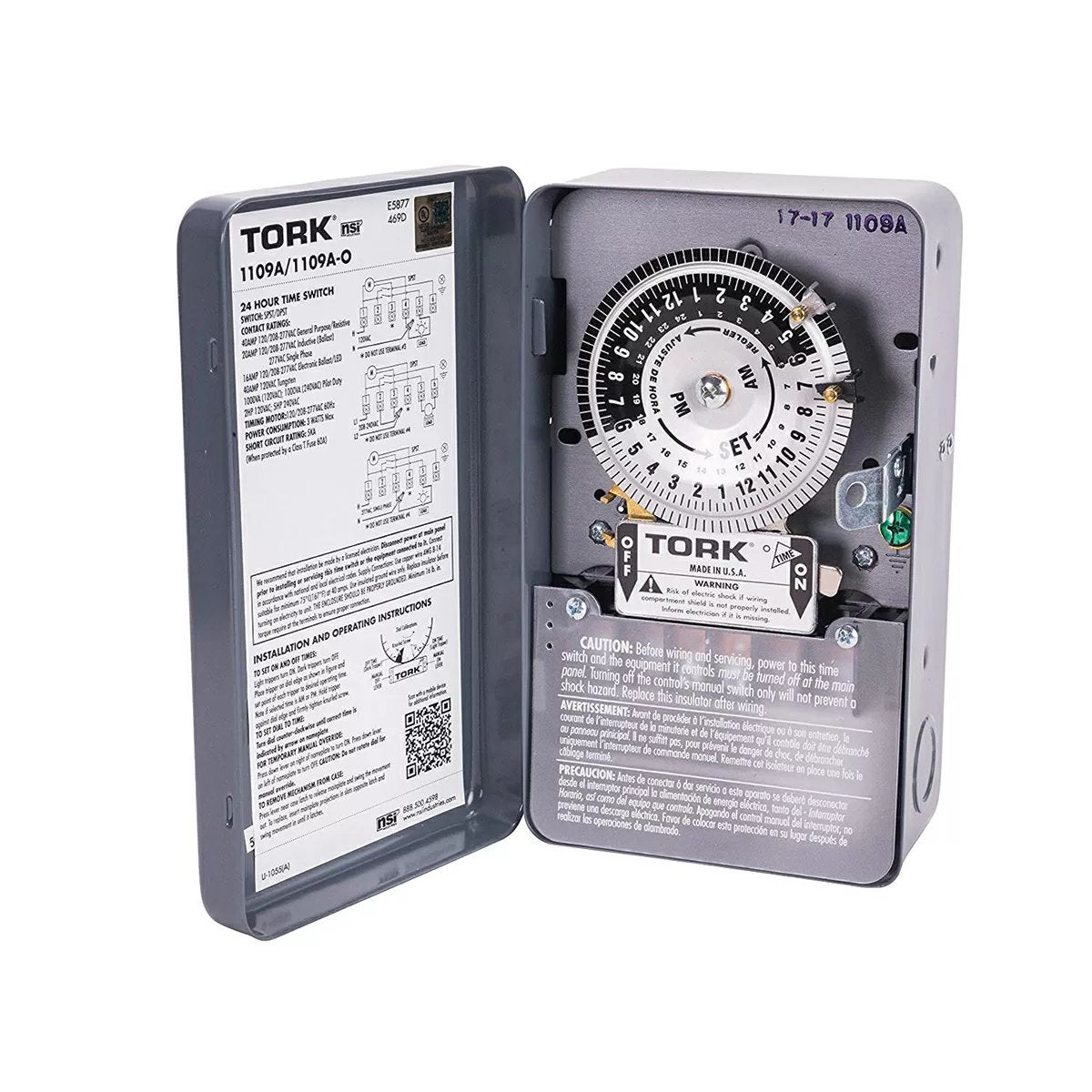

TORK® 24-Hour Mechanical Timer - 120/208-277 Volt

Great for lighting, pumps and signs, the TORK 24-Hour Mechanical Timer - 120/208-277 Volt includes a pair of trippers. The minimum ON setting is 20 minutes and the minimum OFF setting is 75 minutes.

Applications: Air conditioning, water heaters, fans, lighting, pumps & signs

Features

• Enclosed Motor: Protects gears for extended life
• Listed UL/CSA 60730
• Manual Override: Until the next regularly scheduled ON or OFF automatic operation then resumes
• Scheduling: Minimum ON setting is 20 minutes with a minimum OFF setting of 75 minutes
• Dial accommodates up to 12 pairs of trippers - 1 pair is included

Specifications

• Timing Accuracy: Line frequency
• Input Voltage: 120/208-277 VAC, 50/60 Hz
• Terminal Range: #8-#14 AWG
• Operating Temperature: -40° F to 149° F
• Power Consumption: 3 watts max
• Enclosure: Metal indor NEMA 1
• Lockable hasp

Contact Ratings

• General Purpose: 120/208-277 VAC; 40 A
• Resistive: 120/208-277 VAC; 40 A
• Tungsten: 120 VAC; 40 A
• Ballast: 120/208-277 VAC; 20 A
• Electronic Ballast (LED): 120/208-277 VAC; 16 A
• Pilot Duty: 120 VAC, 1,000 VA; 240 VAC, 2,000 VA
• Motor: 120 VAC, 2 HP; 240 VAC, 5 HP
• Short Circuit Rating: 5 KA when protected by a Class T fuse rated 60 A
