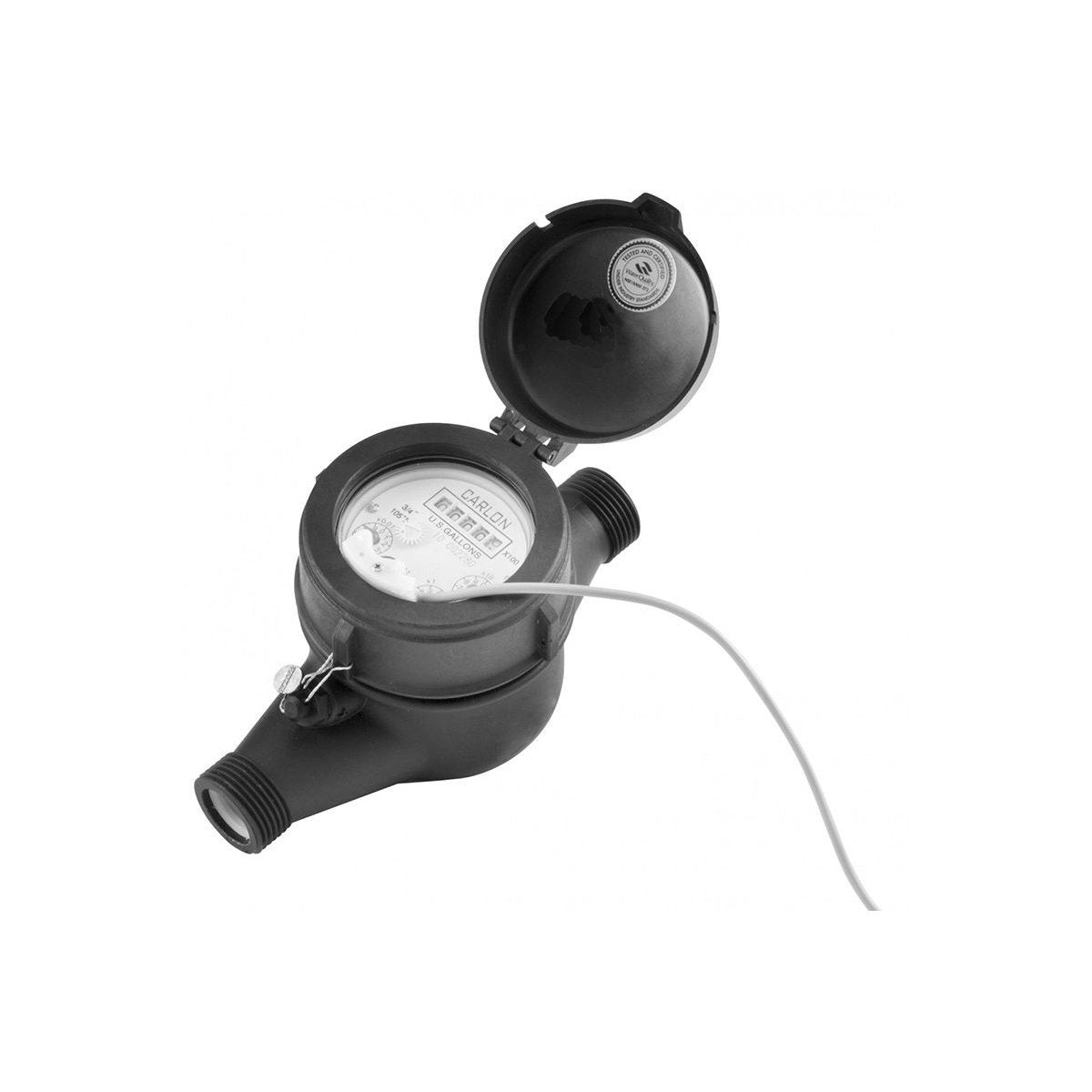

Stenner Plastic Water 3/\4" Meter, 2 Pulses/Gal.

The Stenner Plastic Water 3/\4" Meter produces 2 Pulses/Gallon for flow rates of higher than 5 GPM. It is a component of the proportional feed system, which delivers repeatable doses regardless of the system's flow rate. The system is used in applications requiring proportional chemical injection. The water meter sends a pulse signal to the PCM which activates the pump to deliver the desired dose based on water volume.

Specifications:

• Body: Engineered Reinforced Plastic (nylon)
• Internal: Engineered thermoplastic
• Magnet: Alnico
• Accuracy: 2% of reading
• Flow Rate: 0.25 - 22 GPM
• Maximum operating temperature: 105 F (40 C)
• Maximum operating pressure: 100 psi (6.9 bar)
• Cable length: 5 ft (1.5m) standard

Dimensions: 7.5"x11.5"x1"
