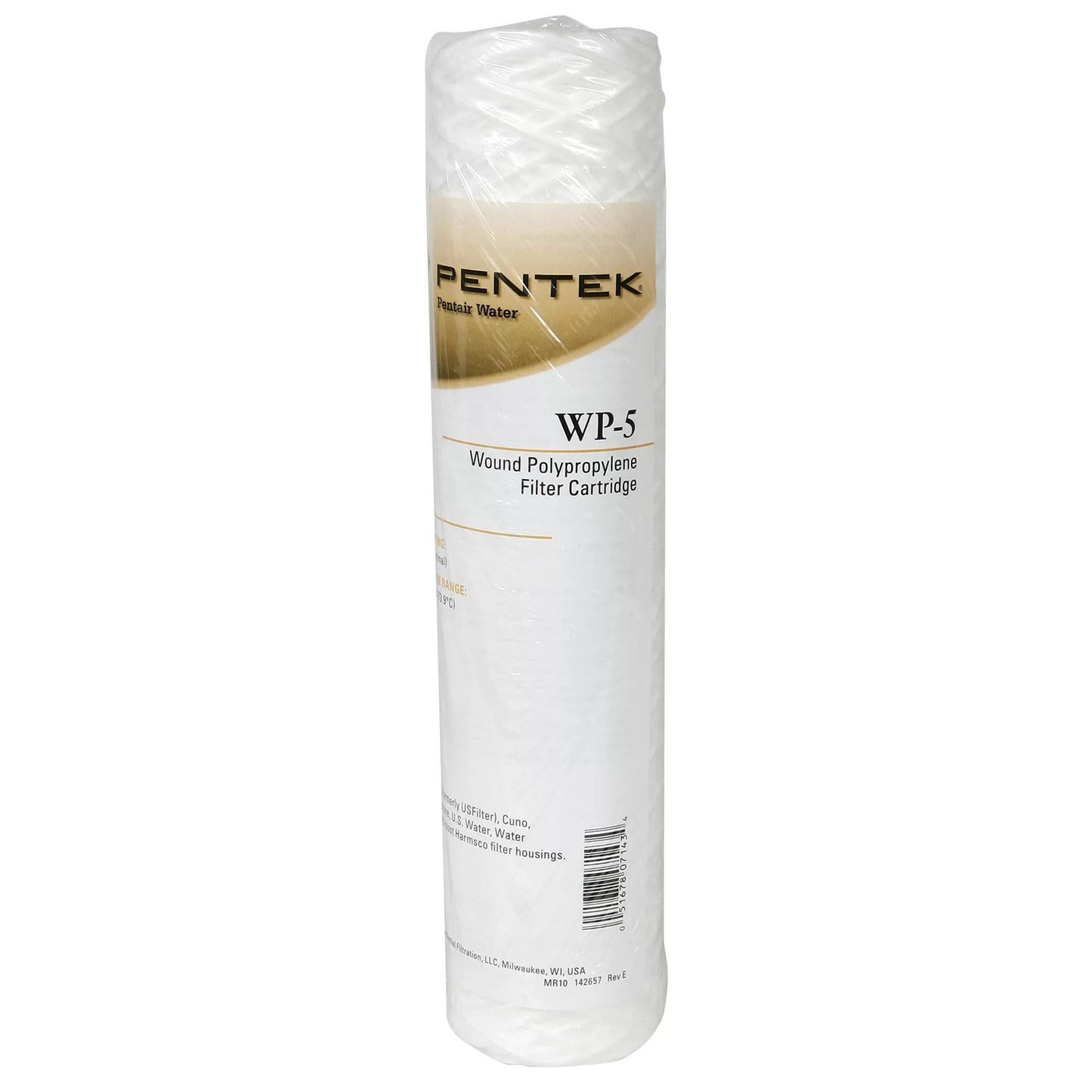

Poly Stringwound Filter for 10" Housing (5 Micron)

Poly Stringwound Filter for 10" Housing (#121300 or #121301). This 5 micron filter has a string-wound design to reduce fine sediment, including sand, silt, rust and scale particles. This WP Series Filter is wound in a precise pattern around the core, providing a greater surface area. The result is a higher dirt-load capacity and greater efficiency than standard wound filters. They are suitable for a wide variety of sediment filtration applications, including municipal and well water, as well as many industrial fluids. Economically priced, they withstand temperatures up to 165° F.

Model: WP-5

Max Dimensions: 2 1/4" x 9 7/8"

Micron Rating: 5

Initial PSI @ Flow Rate (gpm): <2.5 PSI @ 10 gpm (<0.17 bar @ 38 Lpm)

Filter Media: Polypropylene Fiber Cord

Core: Polypropylene

Temperature Rating: 40° F - 145° F

Other Filters Available:

• #121306 — Spun-Bonded Poly (1 Micron)
• #120132 — Wound Carbon Charcoal (5 Micron)
• #121215 — Spun Wound Poly (5 Micron)
• #121308 — Poly Stringwound (10 Micron)
• #120131 — Poly Stringwound (20 Micron)
• #120130 — Pleated Paper (20 Micron)
