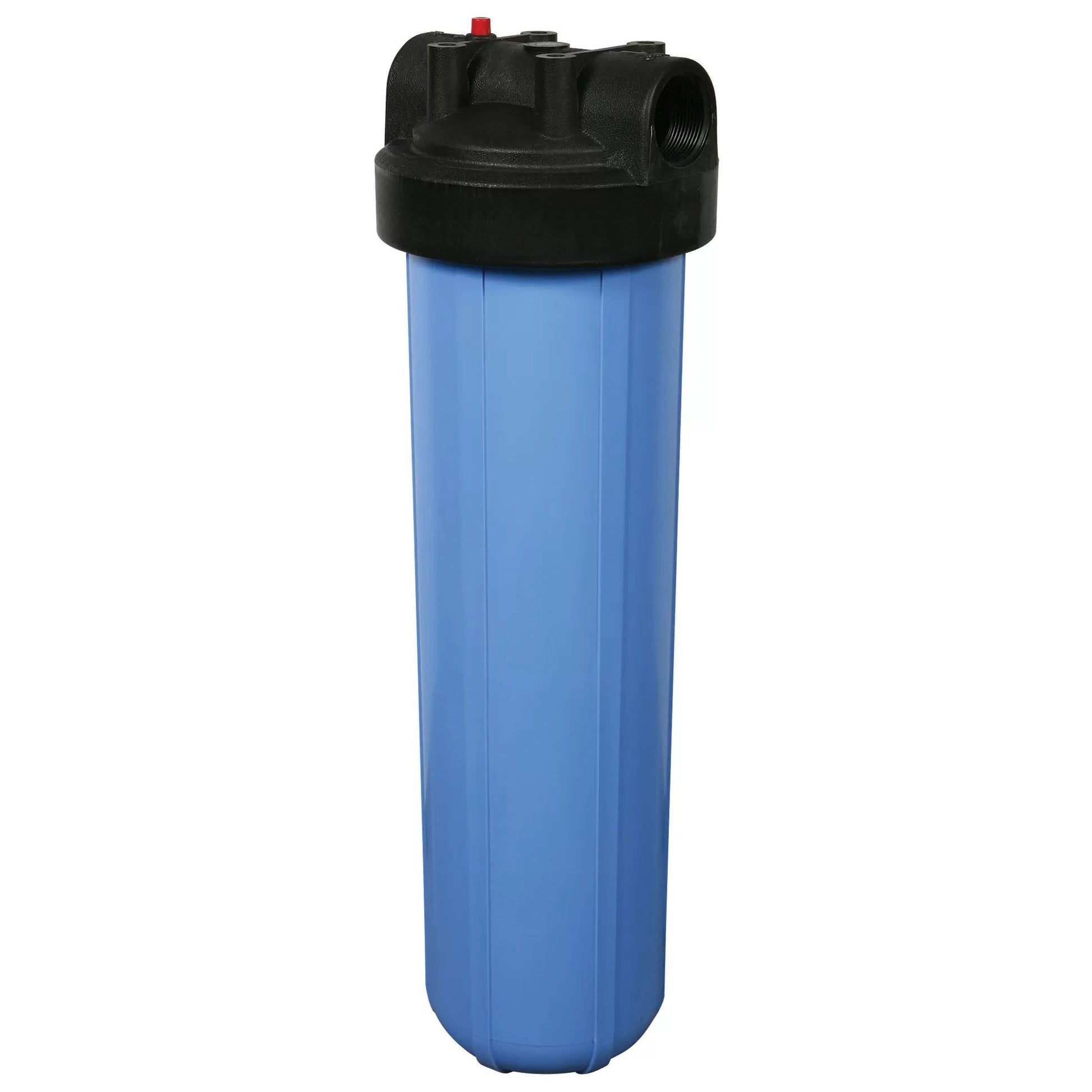

Pentair® Big Blue® Jumbo 20" Housing

Great for large-capacity, high-flow applications, this 20" Pentair® Big Blue® Jumbo Housing is compatible with a broad range of chemicals. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. The 1 1/2" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly.

Features/Advantages

• 1 1/2" NPT inlet & outlet can be reduced for smaller lines
• 20" housing accepts 4 1/2" diameter cartridges
• Large capacity housing suitable for high-flow applications
• Pressure relief/bleed on inlet side of cap

Specifications

• Weight: 7 lbs.
• 1 1/2" HFPP with pressure release
• Max Dimensions: 23.74" x 7.45"
• Initial PSI: 1 PSI @ 20 GPM
• Housing: Polypropylene
• Cap: Polypropylene (HFPP)
• O-Ring: EPDM
• Button Assembly: 300-Series stainless steel, EPDM, and polypropylene
• Temperature Rating: 40° F to 100° F
• Maximum Pressure: 90 PSI

Available Filters

• QC Supply Part #121332 - Pleated Cellulose Polyester, 5 Micron
• QC Supply Part #121333 - Pleated Polyester Reuseable, 30 Micron
• QC Supply Part #121336 - Carbon Activated, 5 Micron

Big Blue 10" Housings and filters are also available.
