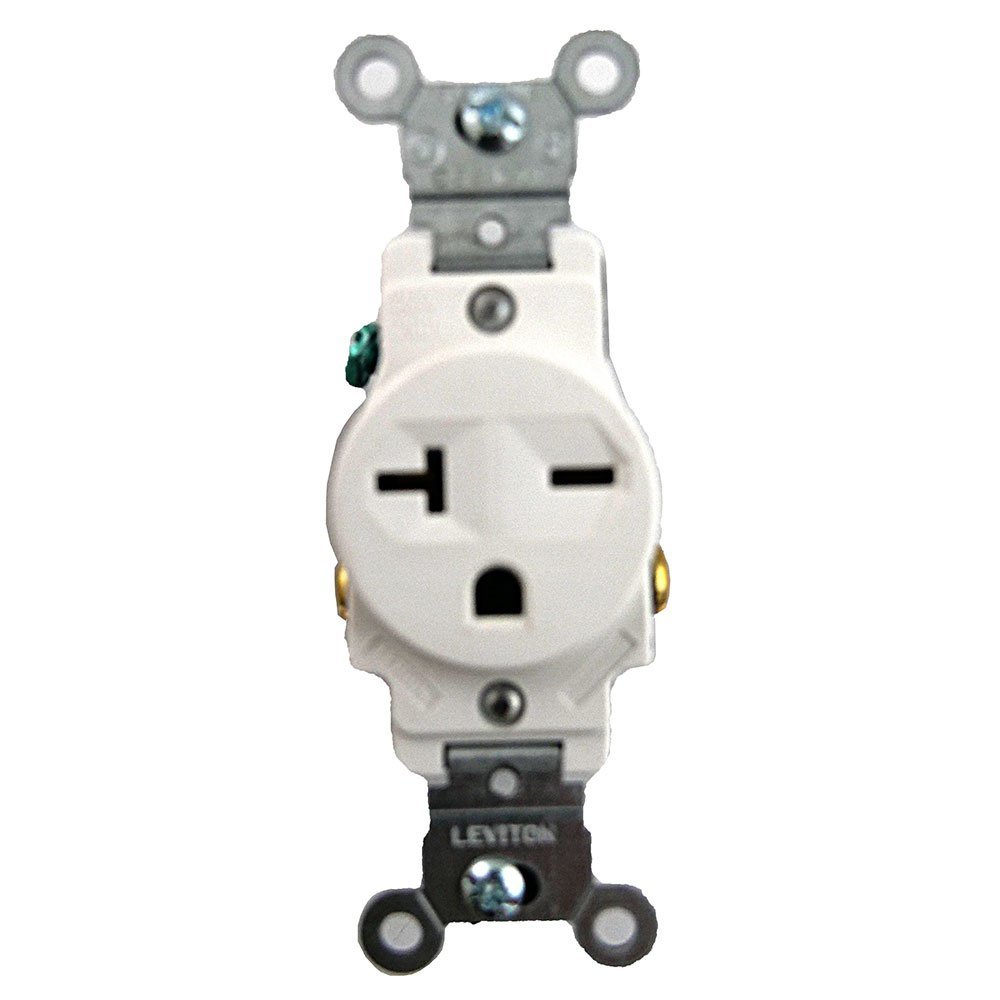

Leviton® Single Receptacle - 20 Amp, 250 Volt -

This Leviton Single Receptacle - 20 Amp, 250 Volt is Commercial Specification Grade with a smooth face. 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire. This outlet is white in color.

Electrical Specifications

• Amperage: 20A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Voltage: 250 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C

Material Specifications

• Body Material: Nylon
• Color: White
• Face Material: Nylon
• Grounding Screw: Brass 8-32
• Line Contacts: Brass Double Wipe .031 Thick
• Strap Material: Zinc-Plated Steel
• Terminal Screws: Brass 8-32

Material Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire

Product Features

• Device Type: Single Receptacle Outlet
• Grade: Commercial Specification Grade
• NEMA: 6-20R

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-1 and WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Manufacturer's Warranty: 10-Year Limited
