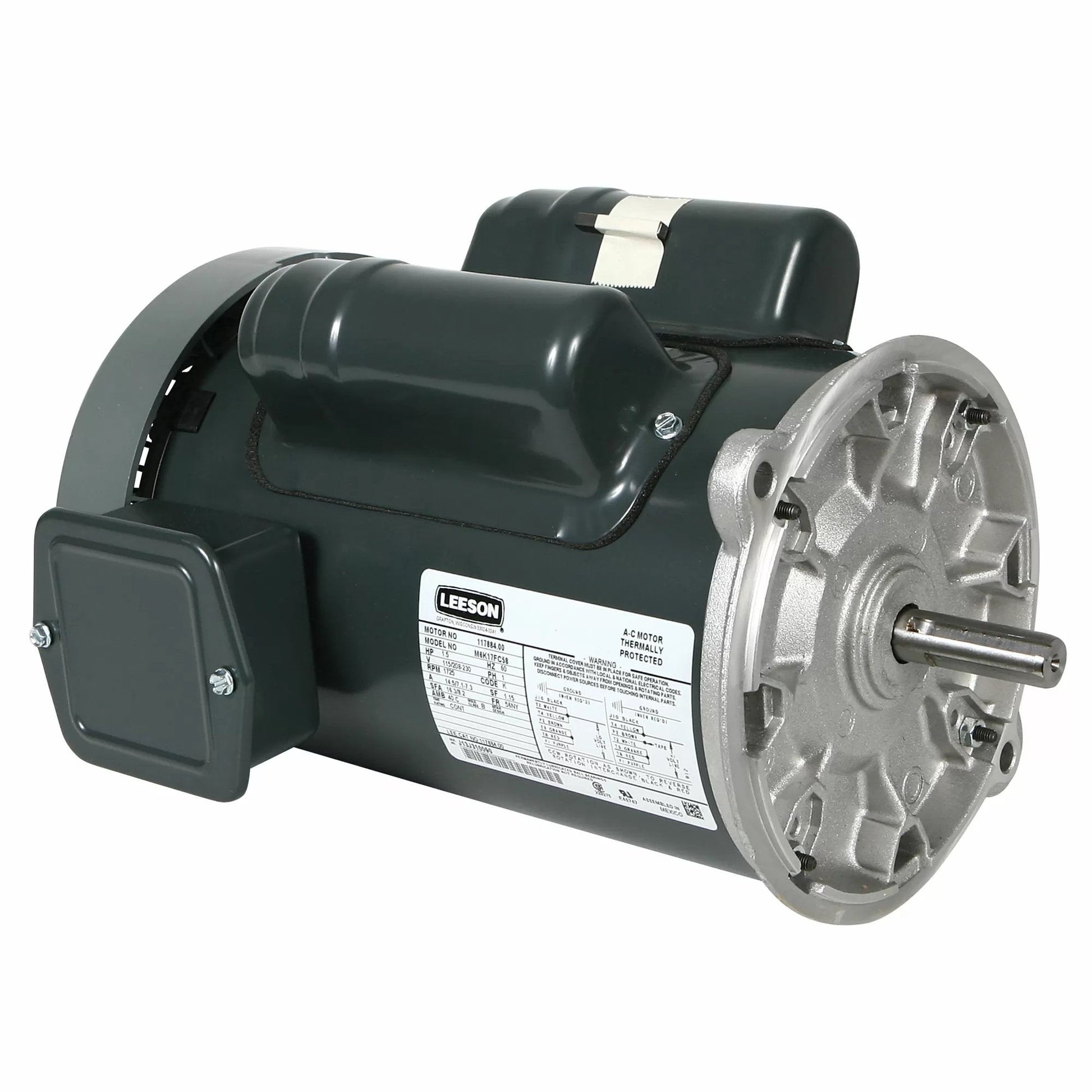

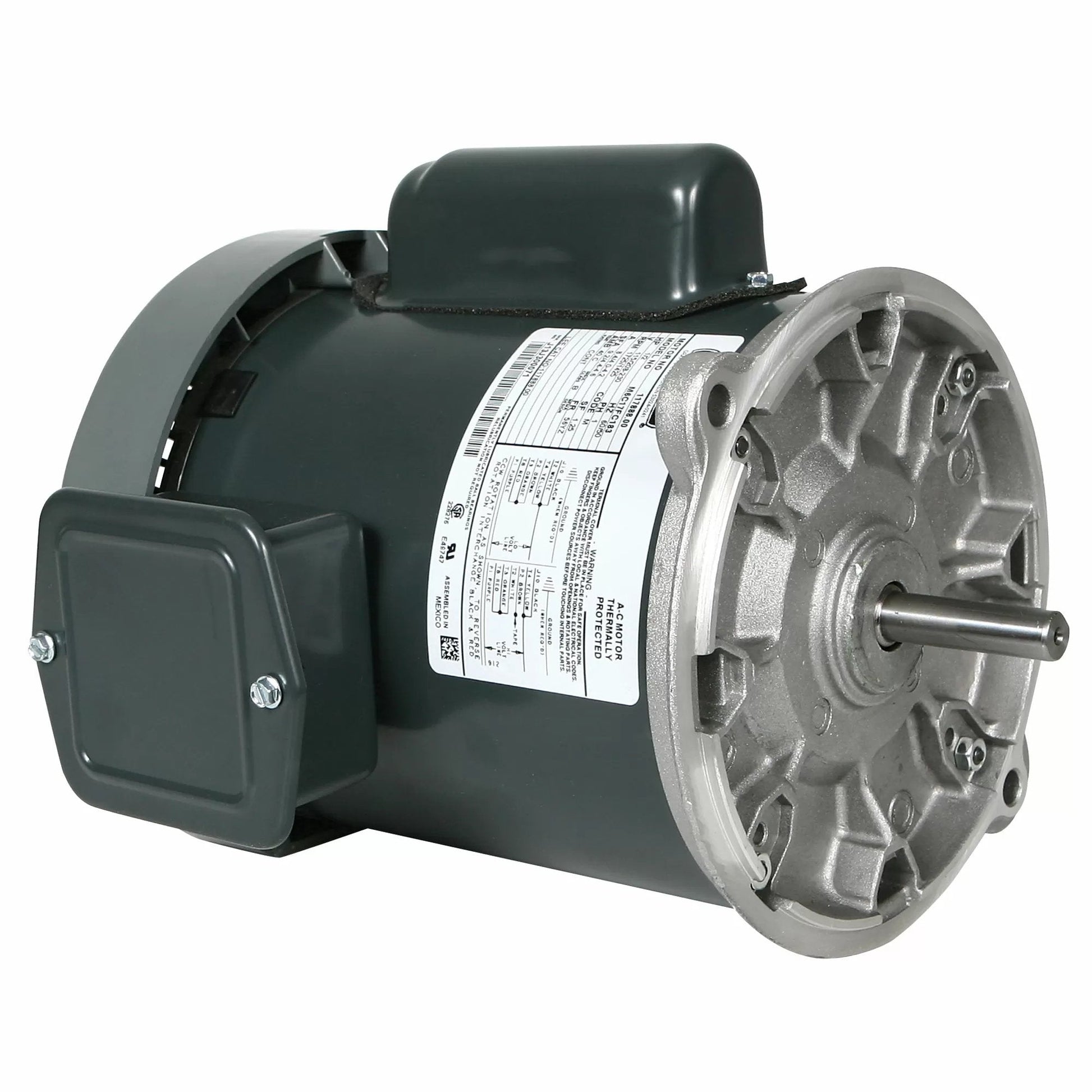

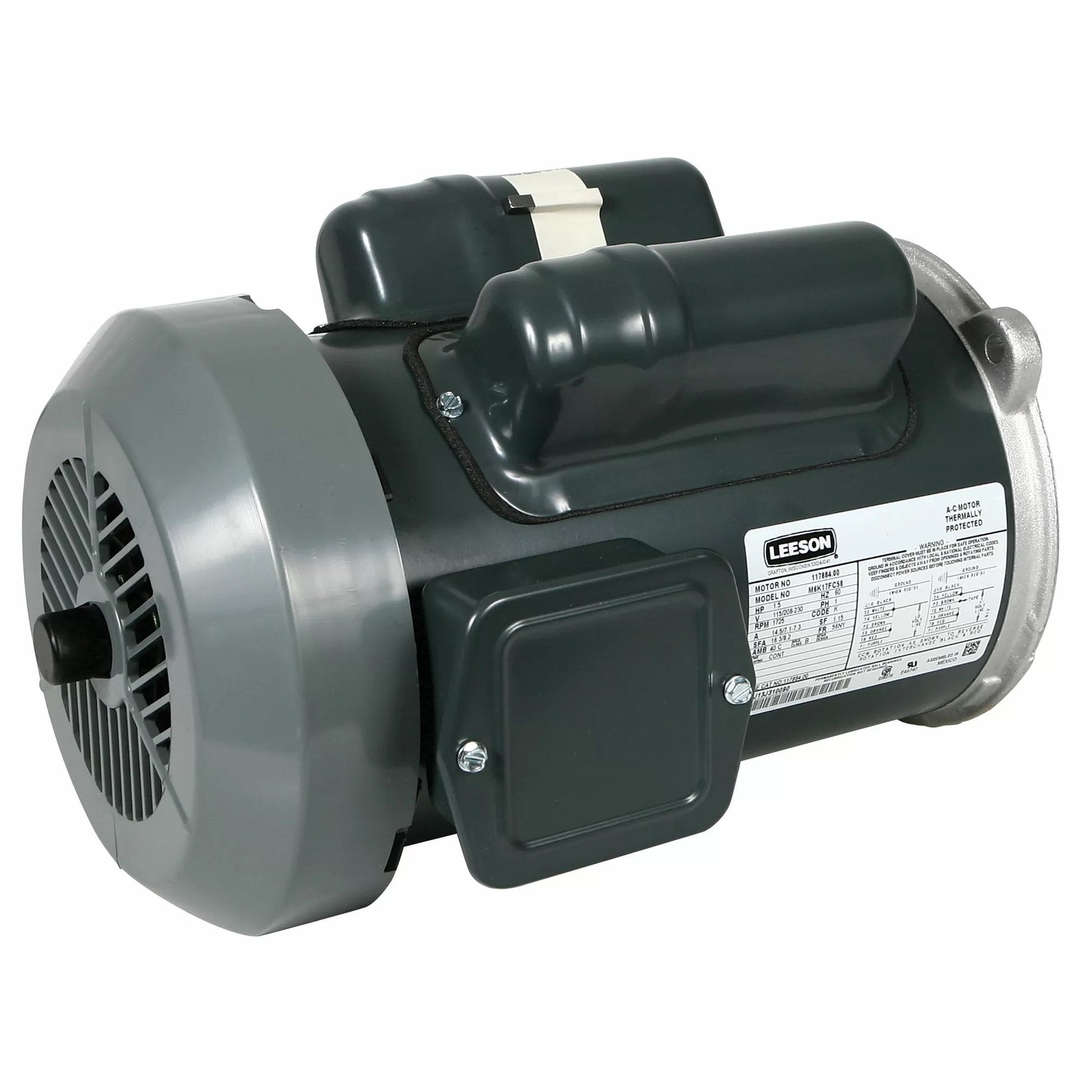

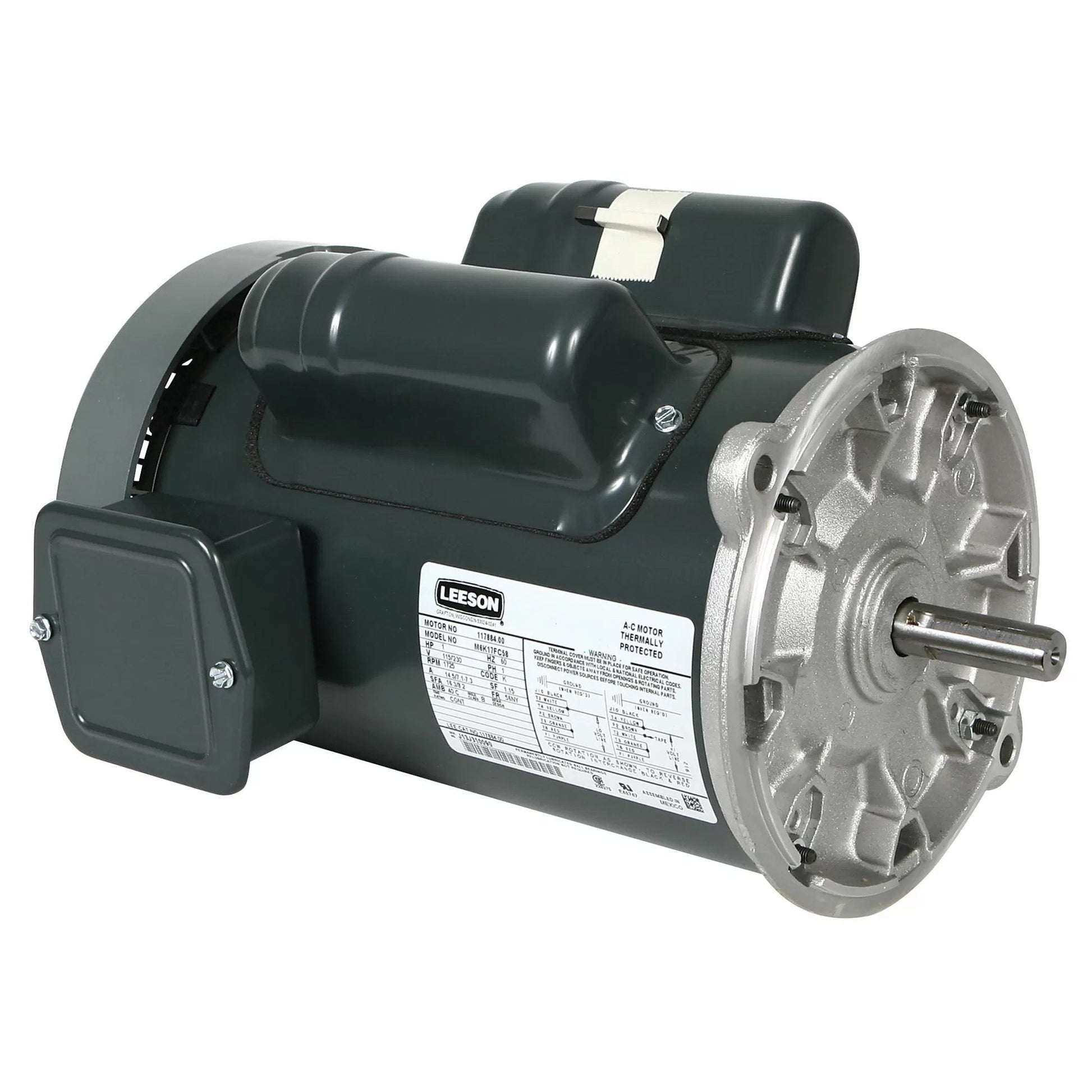

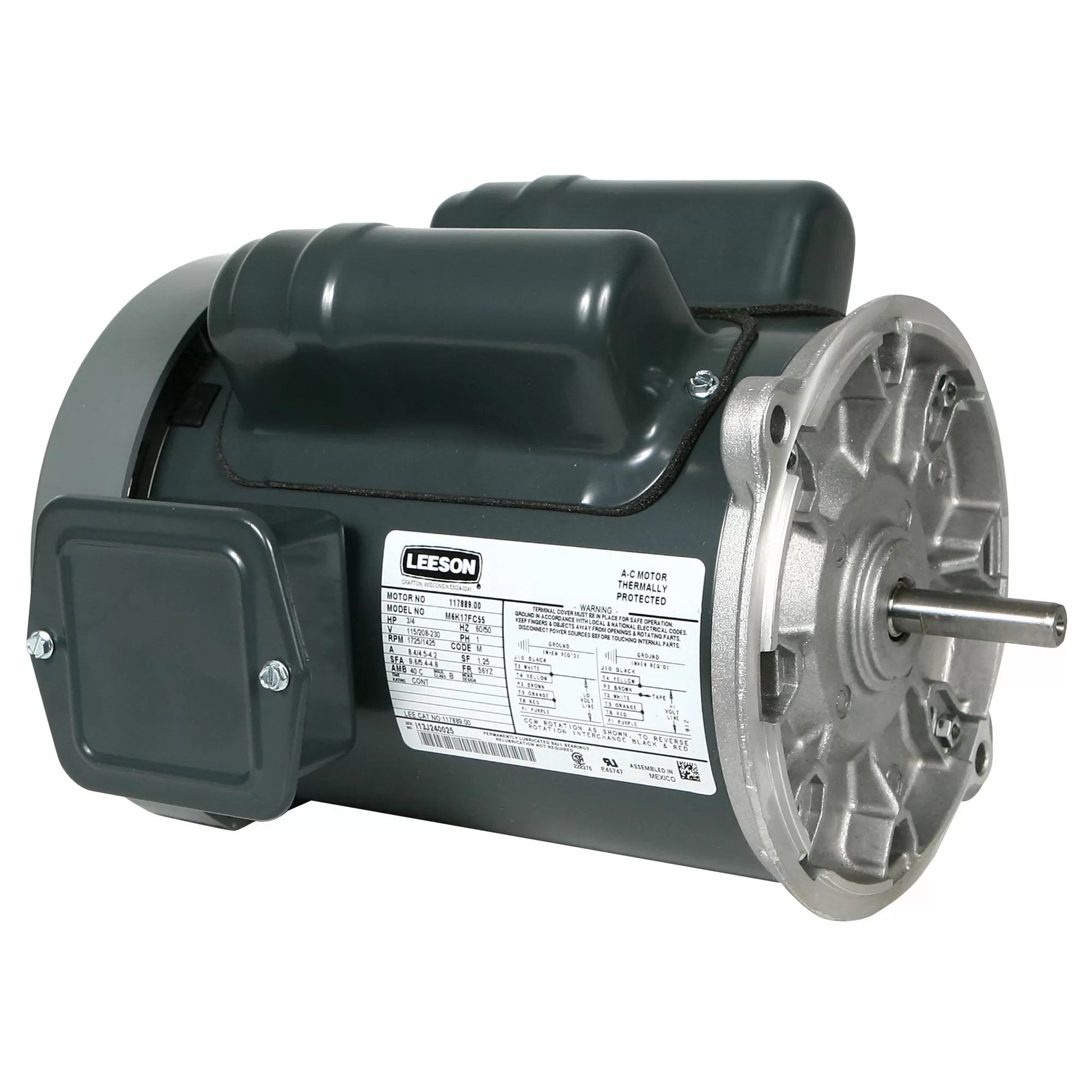

Leeson® Direct Drive Feed Auger Motors
SKU:
QC Part #190174 | MFR # 117884
Regular price
$479
99
Sale price
$479
99
Regular price
Unit price
per
Currently available on backorder
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
This item is temporarily out of stock, but you can still order it. We’ll ship your item as soon as it’s restocked. Contact us for estimated delivery timing.
Description
Reviews
Q&A
Documents
More about Leeson® Direct Drive Feed Auger Motors
Used for swine and poultry feed delivery systems, Leeson Direct Drive Feed Auger Motors are highly efficient. These dust-tight TEFC motors come with double sealed ball bearings. The extended shaft through the end of the motors allow for manual turning. Includes a manual override protection switch. Meets or exceeds NEMA service factors.
Features:
- Manual override protection
- Extended shaft through the end of the motor allows for manual turning
- 3/4, 1 and 1 1/2 HP motors are capacitor start/capacitor run
| QC Part # | MFG # | HP | RPM | Shaft | Frame | Voltage | Amps | Weight (lbs) | "C" Dims |
|---|---|---|---|---|---|---|---|---|---|
| 190170 | 117887 | 1/3 | 1,725 | 1/2" | 56YZ | 115/208-230 | 5.8/2.8-2.9 | 21 | 12 |
| 190171 | 117888 | 1/2 | 1,725 | 1/2" | 56YZ | 115/208-230 | 8.4/4.0-4.2 | 23 | 12 |
| 190172 | 117889 | 3/4 | 1,725 | 1/2" | 56YZ | 115/208-230 | 9.6/5.4-4.8 | 31 | 13.13 |
| 190173 | 117883 | 1 | 1,725 | 5/8" | 56YZ | 115/208-230 | 10.8/6.0-5.4 | 40 | 14.51 |
| 190174 | 117884 | 1 1/2 | 1,725 | 5/8" | 56YZ | 115/208-230 | 16.3/8.2 | 44 | 14.51 |
