J&D Manufacturing WhirlWind Box Fans
AMERICA AT WORK
When you see this American star badge, you can shop with confidence knowing the product is made, assembled, finished, or packaged in the USA. Choosing these products helps support American manufacturing and businesses.
-
Vendor:
SKU: 355042Regular price $149 99Sale price $149 99Unit price perIn stock -
Vendor:
SKU: 20967-TURBORegular price $419 75Sale price $419 75Unit price perIn stock -
Vendor:
SKU: 10678Regular price $22 99Sale price $22 99 Regular priceUnit price per$31.99While Supplies Last
In stock -
Vendor:
SKU: 10751Regular price $604 99Sale price $604 99Unit price perIn stock -
Vendor:
SKU: 12288Regular price $579 99Sale price $579 99Unit price perIn stock
More about J&D Manufacturing WhirlWind Box Fans

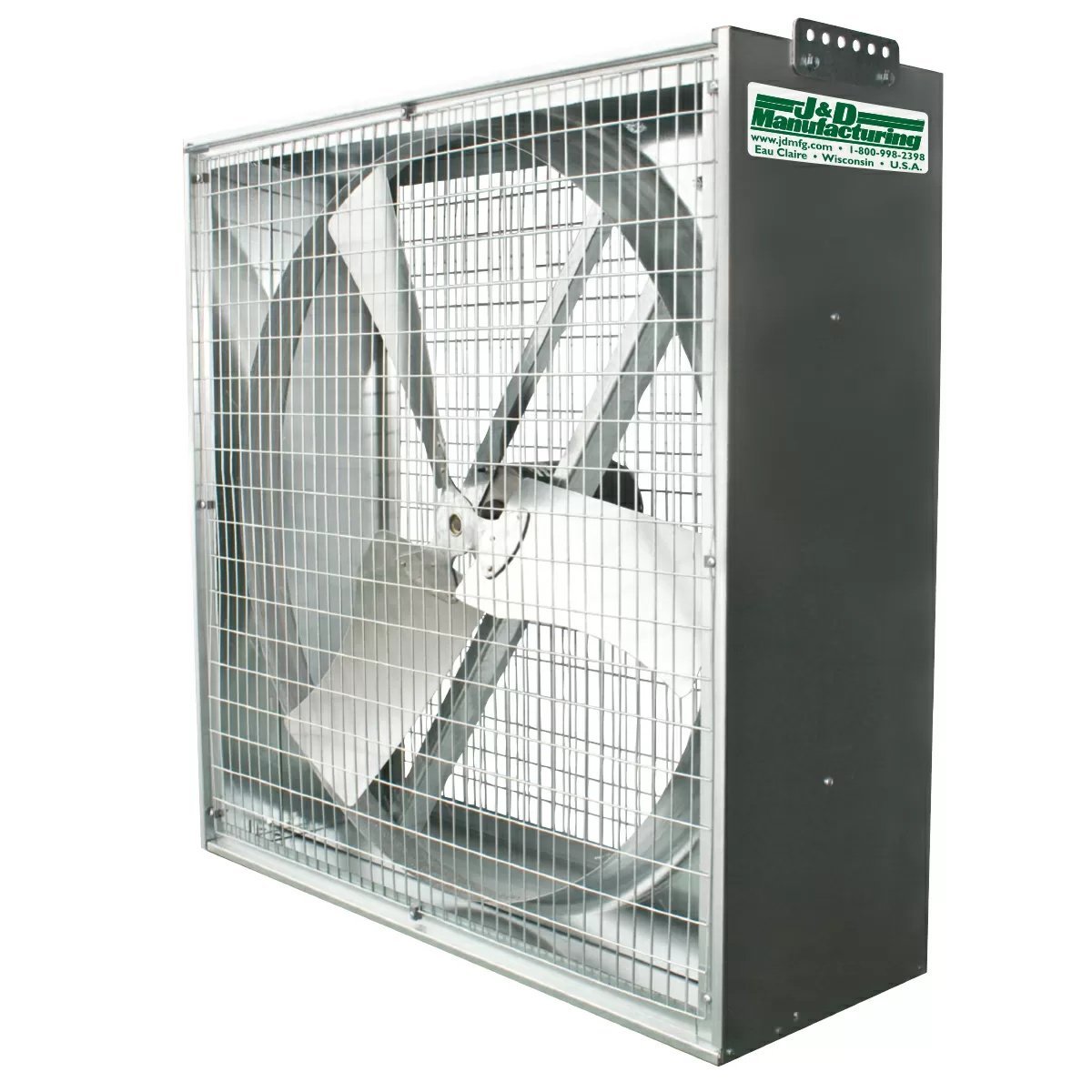

Easy to install, the durable Whirl-Wind Box Fans from J&D Manufacturing are excellent for use in poultry, dairy, agricultural and commercial buildings. Features include a strong galvanized housing and heavy-duty 12 gauge welded wire mesh guards that are hot-dip galvanized. Poly guard clips reduce noise and vibration between the housing and guard.
All Whirl-Wind fans include attached hanging brackets for quick and easy installation. The high-velocity air movement provides maximum airflow at a low electrical cost.
Features
- 18-gauge galvanized housing
- Balanced, high-output propeller
- Lifetime manufacturer warranty on 36" & 50" cast aluminum propellers
- Poly guard clips to reduce vibration for quiet performance
- Includes attached hanging brackets for easy installation
- 12-gauge wire mesh guards are hot-dip galvanized after welding for a long life
- 1" x 2" mesh guards standards on most models
- Belt drive models include a heavy-duty spring belt tensioner to reduce bounce at start-up & provide self-adjusting equal pressure throughout the life of the belt for high-efficiency
- Shaft bearings are eccentric locking, pre-lubricated, permanently sealed & rubber mounted for smooth operation & reduced blade fatigue. Covered by a 3-year manufacturer warranty
- Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings & are covered by a 2-year manufacturer warranty
- Cord not included
This item ships via motor freight. Once your order is processed, we will call you with the motor freight charges.
| QC Part # | Mfg Part # | Size | Drive | CFM | HP | RPM | Volts | Amps NP | Phase/Speed | Prop | kW |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12288 | VG24DM | 24" | DD | 5,000 | 1/2 | 847 | 115/230 | 4.8/2.4 | 1/1 | 3-Aluminum | 0.36 |
| 10751 | VG36DM | 36" | DD | 9,650 | 1/2 | 845 | 115/230 | 6.1/3.09 | 1/1 | 3-Galvanized | 0.51 |
| JDSVG50DM | VG50DM | 50" | DD | 17,000 | 1 | 842 | 230/220 | 5.0/4.7 | 1/1 | 3-Galvanized | 0.56 |
| 10758 | VG50 | 50" | BD | 21,200 | 1 | 585 | 115/208-230 | 9.0/4.5 | 1/1 | 3-Galvanized | 1.02 |
| 13437 | VG24DM3CF | 24" | DD | 5,220 | 1/2 | 856 | 230/460 | 2.6/1.3 | 3/1 | 3-Galvanized | 0.43 |
| 10752 | VG36DM3CF | 36" | DD | 9,840 | 1/2 | 832 | 230/460 | 2.6/1.3 | 3/1 | 3-Galvanized | 0.5 |
| 13438 | VG50DM3B | 50" | DD | 17,400 | 1 | 841 | 230/460 | 5.6/2.3 | 3/1 | 3-Galvanized | 0.91 |
| 10759 | VG503 | 50" | BD | 21,500 | 1 | 586 | 230/460 | 3.2/1.6 | 3/1 | 3-Galvanized | 1.06 |
