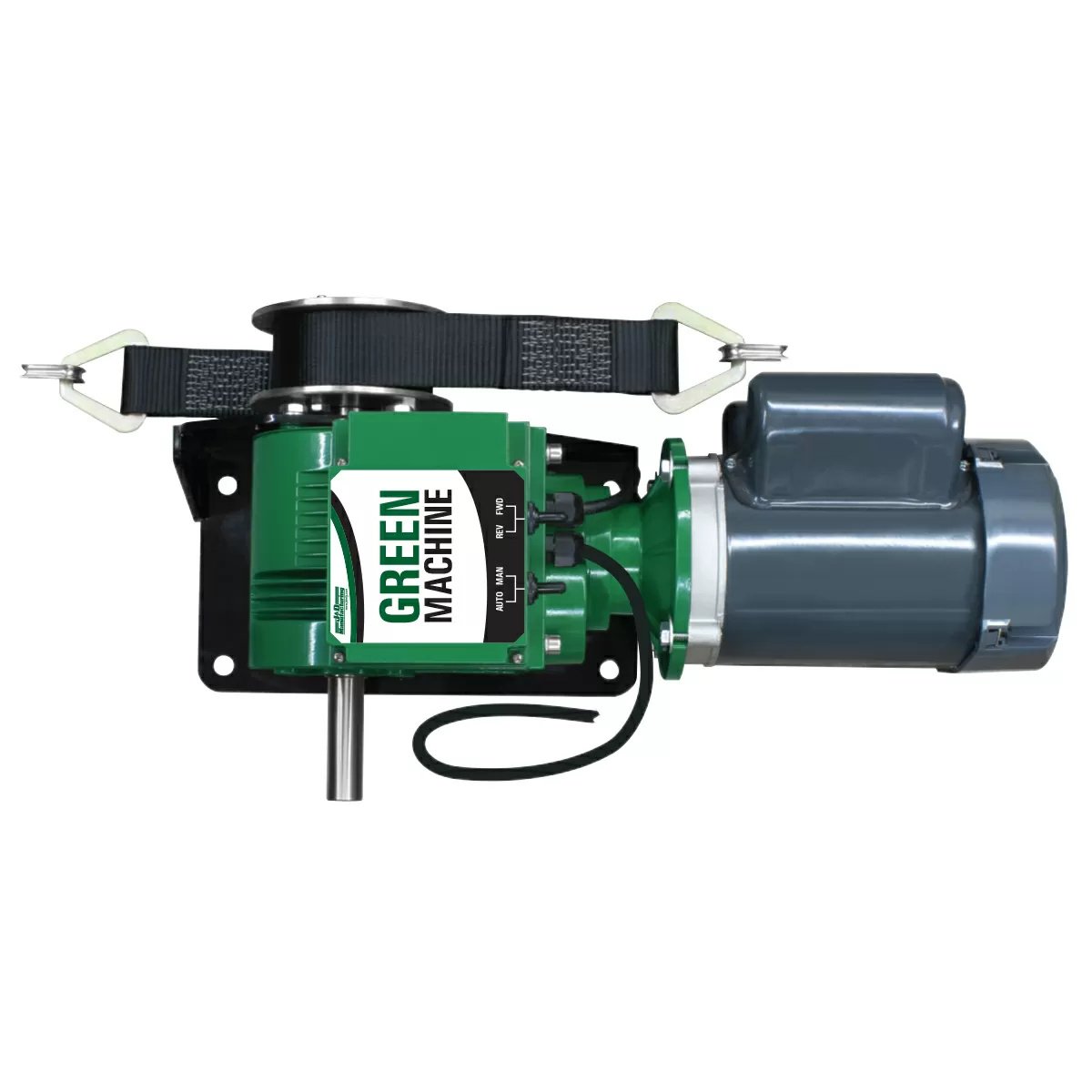

J&D Manufacturing Green Machine - Door, Curtain & Inlet

Get convenience and peace of mind from the Green Machine from J&D Manufacturing. This inlet, door, and curtain strap machine offers minimal maintenance, external switches, and pull strength.

Features

• Durable long life backed by a 2-year manufacturer's warranty on motor & gearbox
• Totally sealed & lubricated gearbox for minimal maintenance
• 2,500 lb pull strength
• Easy-set limit switches for fast & easy installation
• Added protection of neutral kill, a safety function to prevent limit switch override
• 2.1 shaft RPM
• Average 28" per minute travel
• Ships completely assembled
• Ideal for drop-down curtains, tunnel doors & other wall or ceiling inlets
• Strong, 14' nylon belt

Mounting

• Heavy-duty steel mounting plate for secure & versatile mounting options

Gearbox

• 2,500 lb pull capacity
• Totally sealed IP66; no vent plug needed & factory-filled with permanent synthetic lubricant
• Built-in travel limit system; independently adjustable & easy to change switches, neutral kill prevents limit switch override
• If unit loses power, it will continue to hold the load
• Consistent performance down to 5° F

External Switches

• Manual operating; forward & reverse
• Auto/manual

Motor

• Instant reverse motor
• Reliable thermal overload protection
• 10-min continuous duty
• Manual/emergency override shaft

Application Specifications

• Lifts Curtains: 500' long
• Inlet Vents: 100 (Cabled 2:1 to slow)
• Tunnel Doors: 240' long
