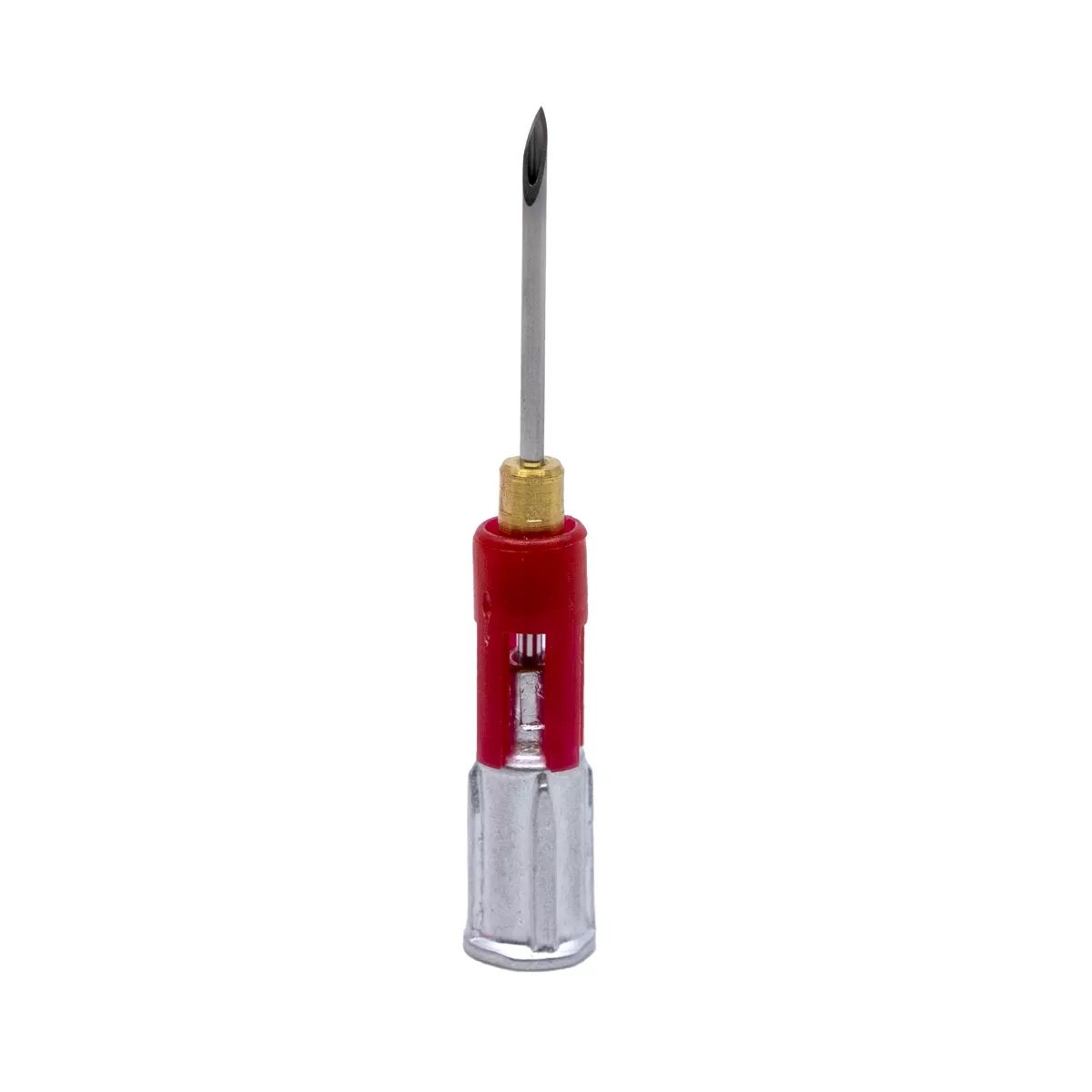

Ideal D3X Detectable 16 Gauge Needles 100/Box

Ideal D3X 16 gauge needles are patent pending dual-detection needles featuring a trusted detectable metal alloy and a highly visible extraction collar. Up to 6 times more detectable than regular stainless steel needles and allow needle fragments to be detected at line speed using X-ray or magnetic technology.

The extraction collar is designed to prevent a broken needle from submerging into the skin of the animal. The easy-to-grip extraction collar is adhered to the needle, allowing needle removal to happen immediately following a broken needle. The extraction collar is highly visible and recognizable so it can be seen in all lighting conditions. The collar is embossed with an X to further identify the product as a D3X needle.

D3X needles have thick-walled cannulas, which are crimped and pressed into sturdy, aluminum hubs. These stronger sidewalls increase load strength and decrease bending and breaking more than 6-fold over some conventional needles. The needle tips stay sharper for longer and make D3X needles the superior option for production needle selection.

D3X needles have ultra-sharp, tri-beveled tips that allow for easier penetration into the animal. The sharpness of the needle increases the possible number of injections per needle and reduces the risk of injection site abscesses while decreasing stress on the animal while working.

D3X needles are packed in trademarked red, color-coded cartridges for safety and convenience while transporting. Cartridges are tamper-evident and ISO color coded for easy gauge and length recognition. D3X needles have thick-walled detectable cannulas and hubs. D3X needles are packaged 100 per box.

Specifications

• Species: Beef, Dairy, Sheep, Goat & Swine
• Aluminum hub
• 216 gauge
• Package Weight: 0.65 lbs
• Packaged 100 needles/box

Available 16 Gauge Lengths

• QC Part #141549, 16 Gauge x 1/2"
• QC Part #141536, 16 Gauge x 5/8"
• QC Part #141537, 16 Gauge x 3/4"
• QC Part #141547, 16 Gauge x 1"
• QC Part #141538, 16 Gauge x 1 1/2"
