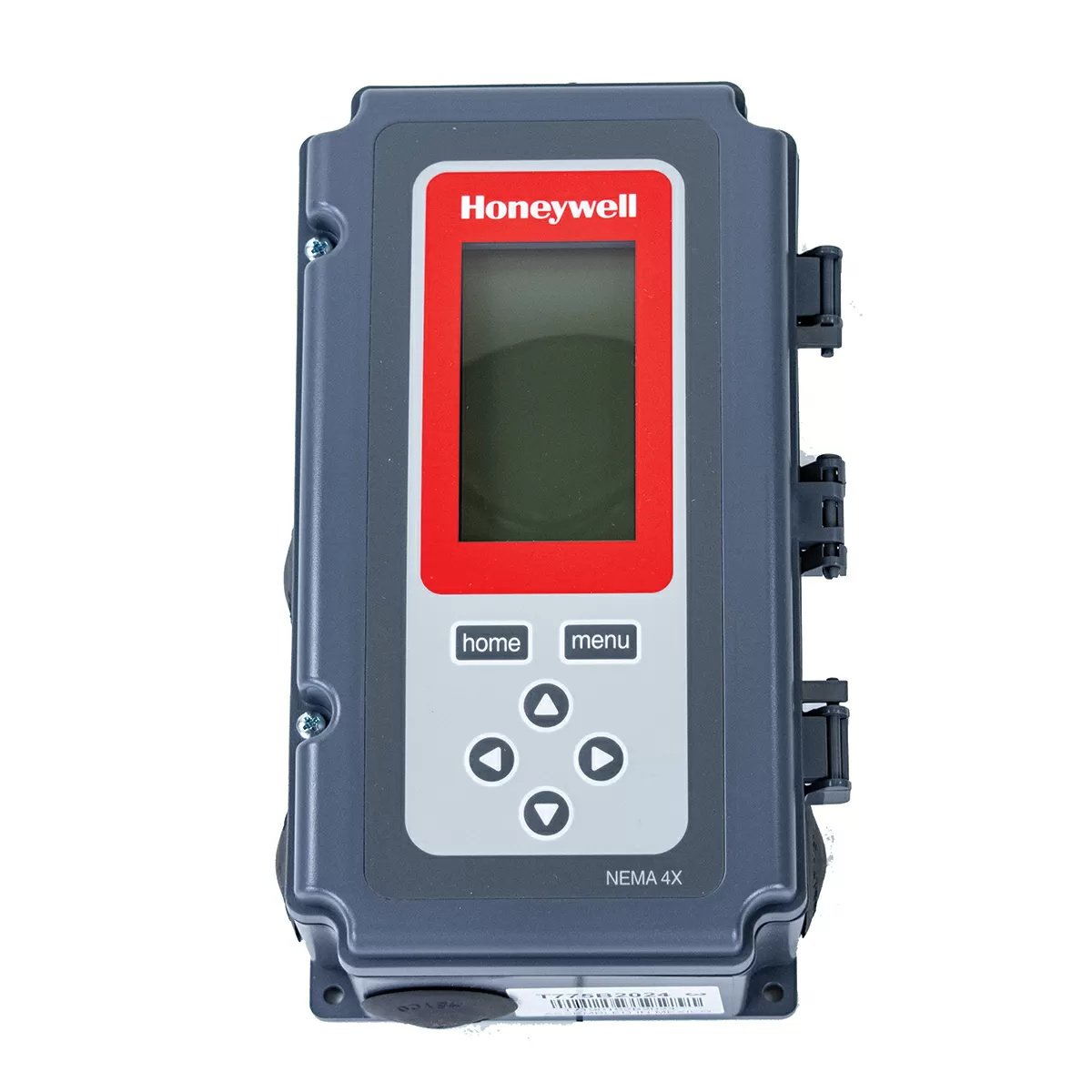

Honeywell® 4-Stage Thermostat

Capable of remote sensing temperature, this 4-State Electronic Controller can also provide switched and/or proportional outputs to various types of loads. Easy-to-use graphical interface saves you installation time.

Features

• Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming
• Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
• Protect equipment from freezing or overheating on models with the modulating high or low limit control option
• Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
• Configure models with reset in a few easy steps
• Sensor T775-SENS-WR included with NEMA-4X models

Specifications

• Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required
• Dimensions: 8 5/32" H x 4 13/32" W x 2 15/16" D
• Frequency: 50 Hz; 60 Hz
• Voltage: 24 Vac or 120/240 Vac
• Setpoint Temperature Range: -40° F to 248° F
• Operating Temperature Range:
• Ambient: -40° F to 125 F @ 50 Hz
• Ambient: -40° F to 140 F @ 60 Hz
• Approvals: CE, Underwriters Labratories Inc., Canadian Underwriters Laboratories Inc., IP65
• Relay Outputs: 4 SPDT
• Relay Contact Ratings:
• 24 Vac: 10.0A resistive
• 120 Vac: 1/2 HP; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
• 240 Vac: 1/2 HP; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
• Sensor Inputs: 2
• Sensor Element: 1097 ohms PTC at 77° F
• Sensors Included: [1] T775-SENS-WR
• Maximum Distance to Sensor: Up to 1,000'
• Bulb Size: 1/4" diameter x 2" L
• Accuracy: ±1° F at 77° F
• Throttling Range: 1° F to 150° F
• Differential Temperature: 1° F to 150° F
