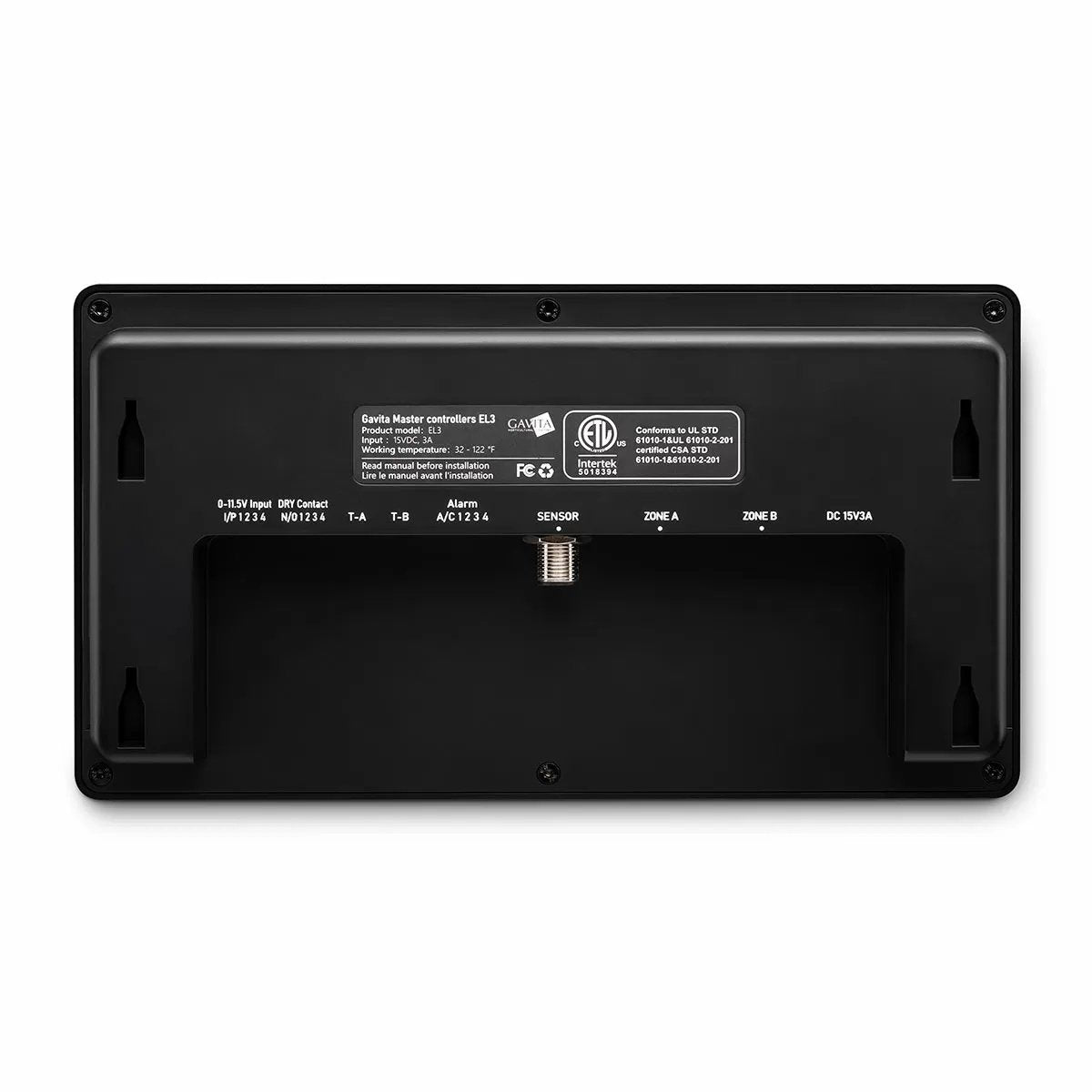

Gavita® Master Controler EL3

The Gavita Master Controler EL3 enables you to set sunrise/sunset dimming, high-temperature dimming, and high-temperature shut-off for all connected fixtures. The EL3 lets you build and program entire schedules for your growing cycles. When using a compatible Gavita or Sun System LED fixture, you will be able to view at the individual fixture level and see how each one is performing.

An 8-inch touchscreen interface provides a clear and colorful display. This unit can control up to 512 fixtures across two zones, making it possible to customize settings for different rooms or growth phases.

Features

• 8-inch touchscreen interface
• Controls up to 512 fixtures
• Updatable via USB
• Spray feature dims lights to help protect against crop burn during spray applications
• Data logging saves setting history for trend and performance data
• High-temperature dimming and safety feature shut-off
• Track information on past and present light and alarm conditions
• Independent sunrise and sunset settings
• Simple plug-and-play installation
• Download and install new software updates from the Gavita website
• Set overlapping cycles. For example, a 12/12 on channel one and 18/6 on channel two.
• Three-year limited manufacturer's warranty

Power Specifications

• Voltage: 100-240V
• Current: 3.0A
• Frequency: 50/60 Hz
• Control Output: 0-10V and digital
• Third-Party Control Input: 0.11.5V

Included with the Controler:

• Gavita EL3 Controller
• Mounting plate and hardware
• Power adapter
• Equipment wires
• USB dongle

Compatible with:

• Gavita 1930e
• Gavita 1700e
• Gavita 900e
• Sun System 1850
