Fenner Drives

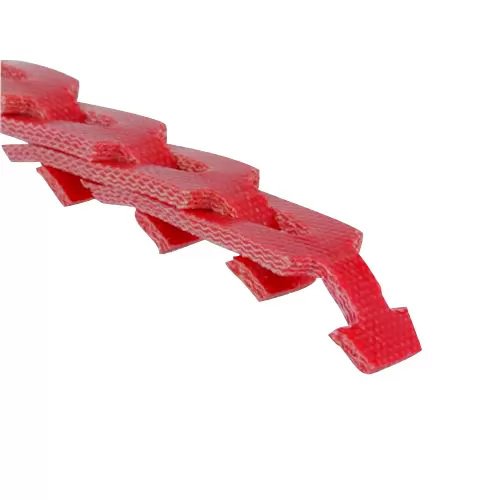

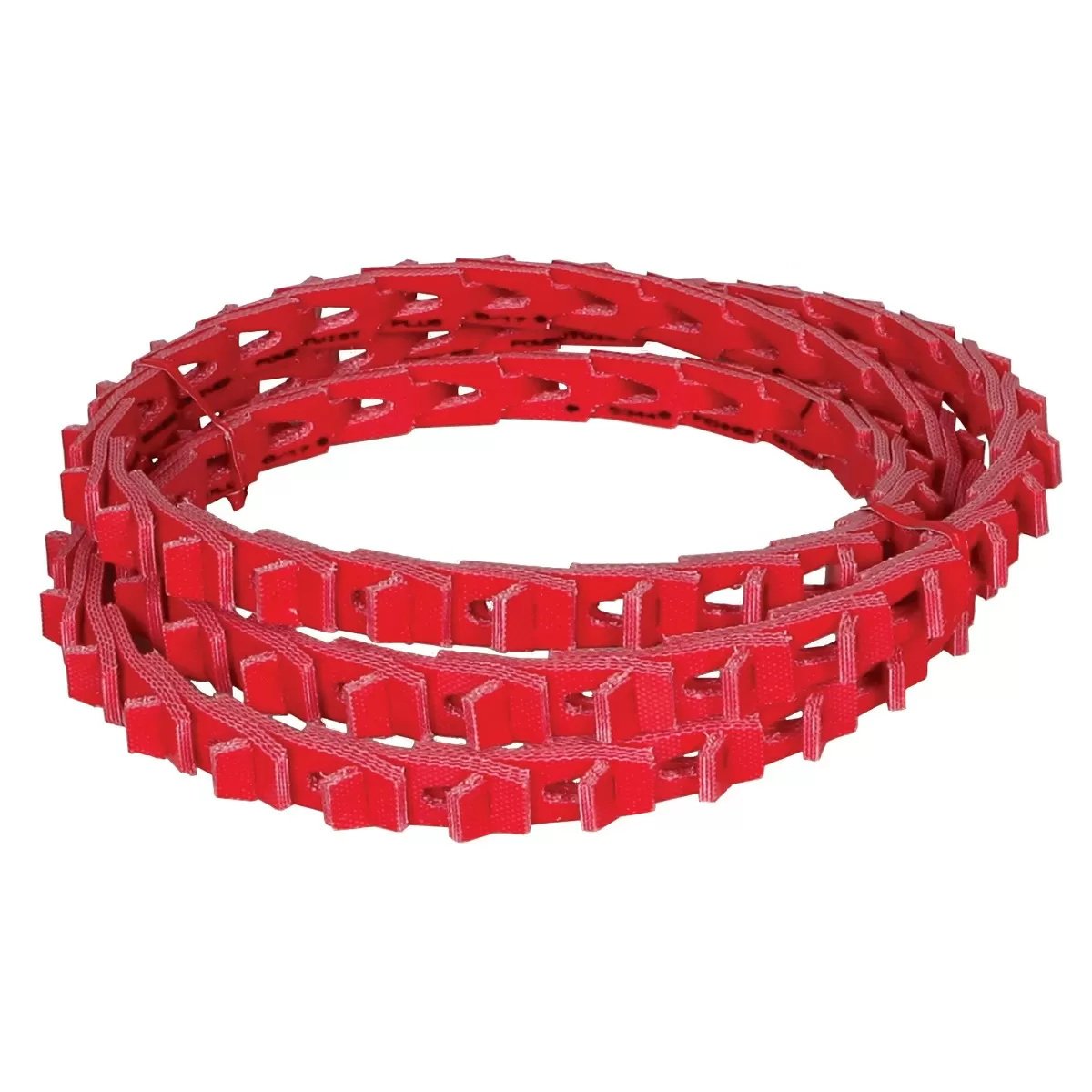

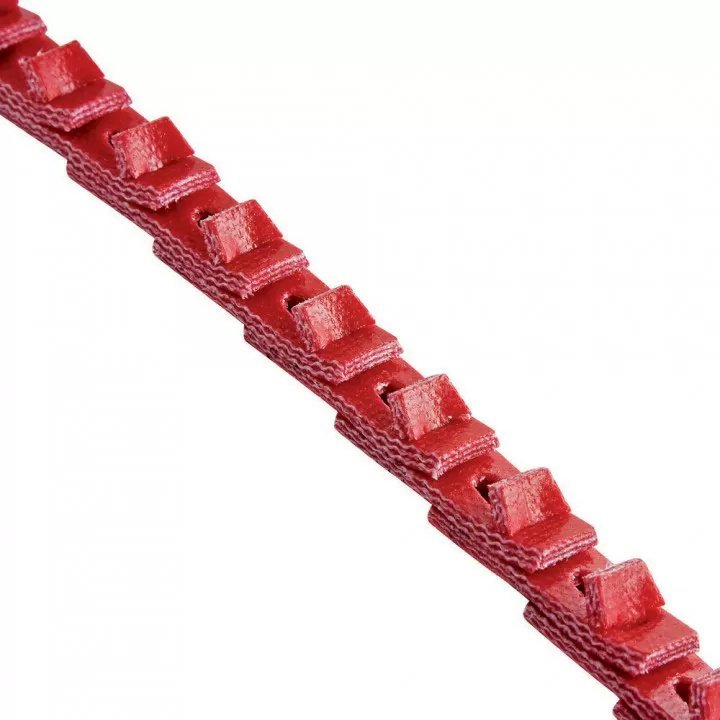

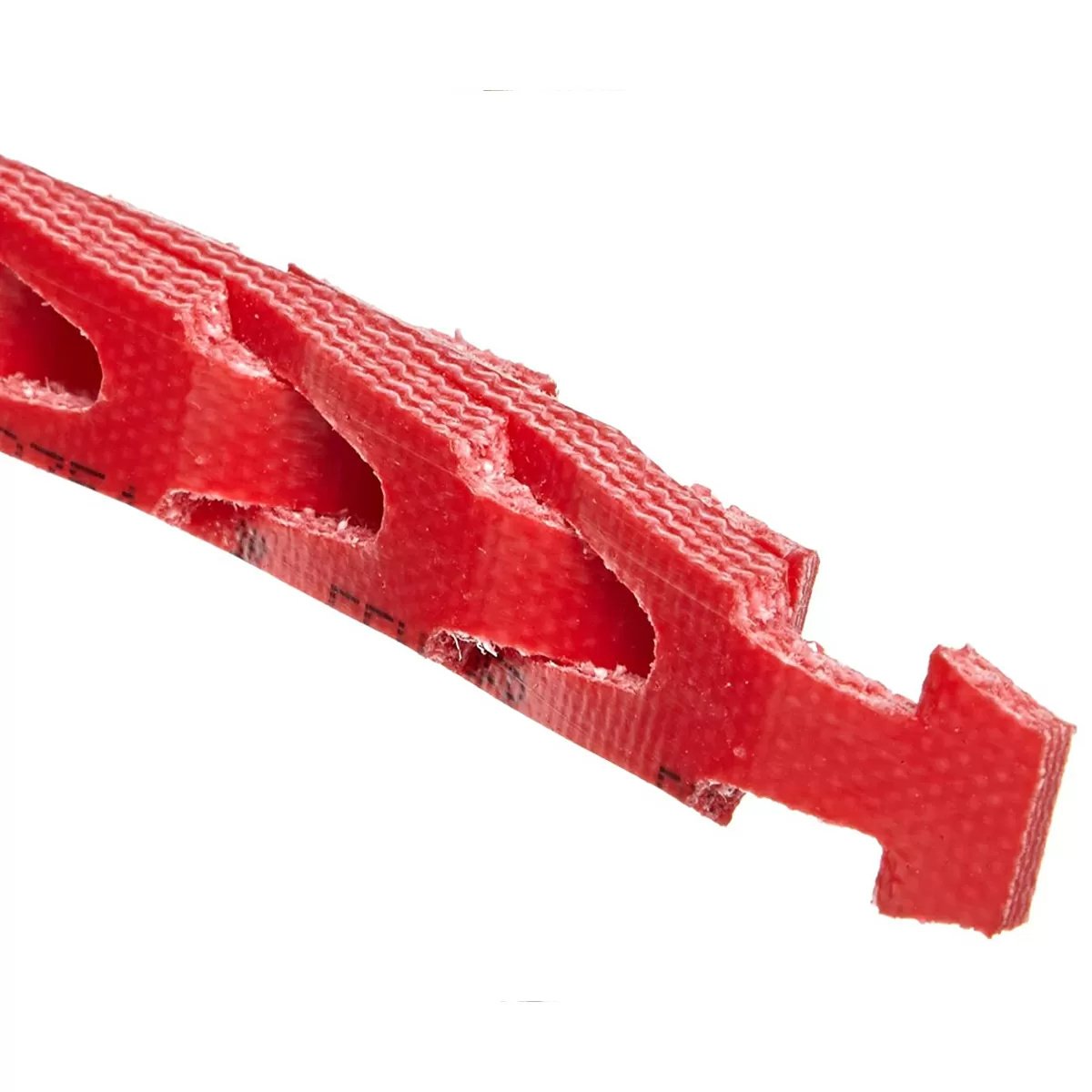

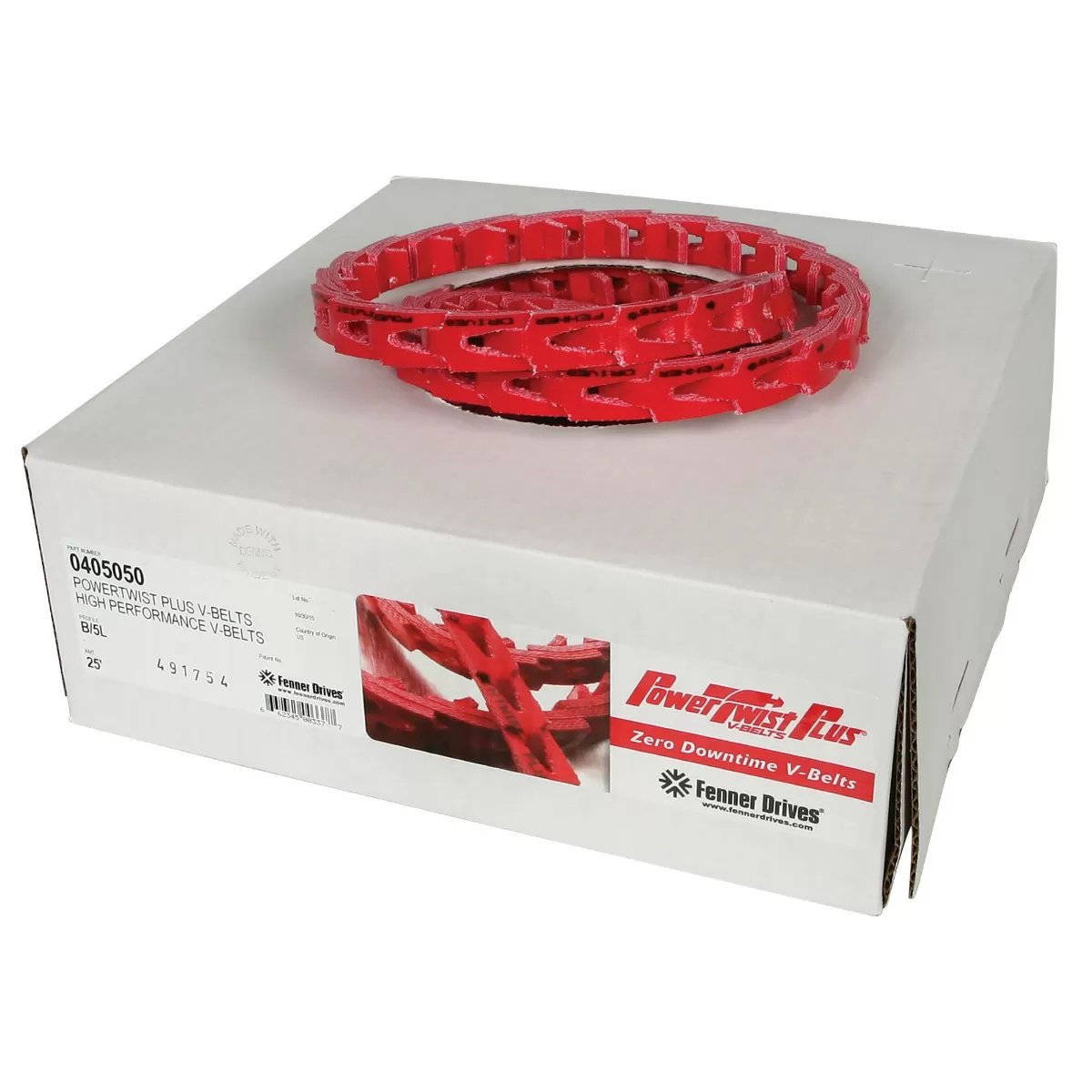

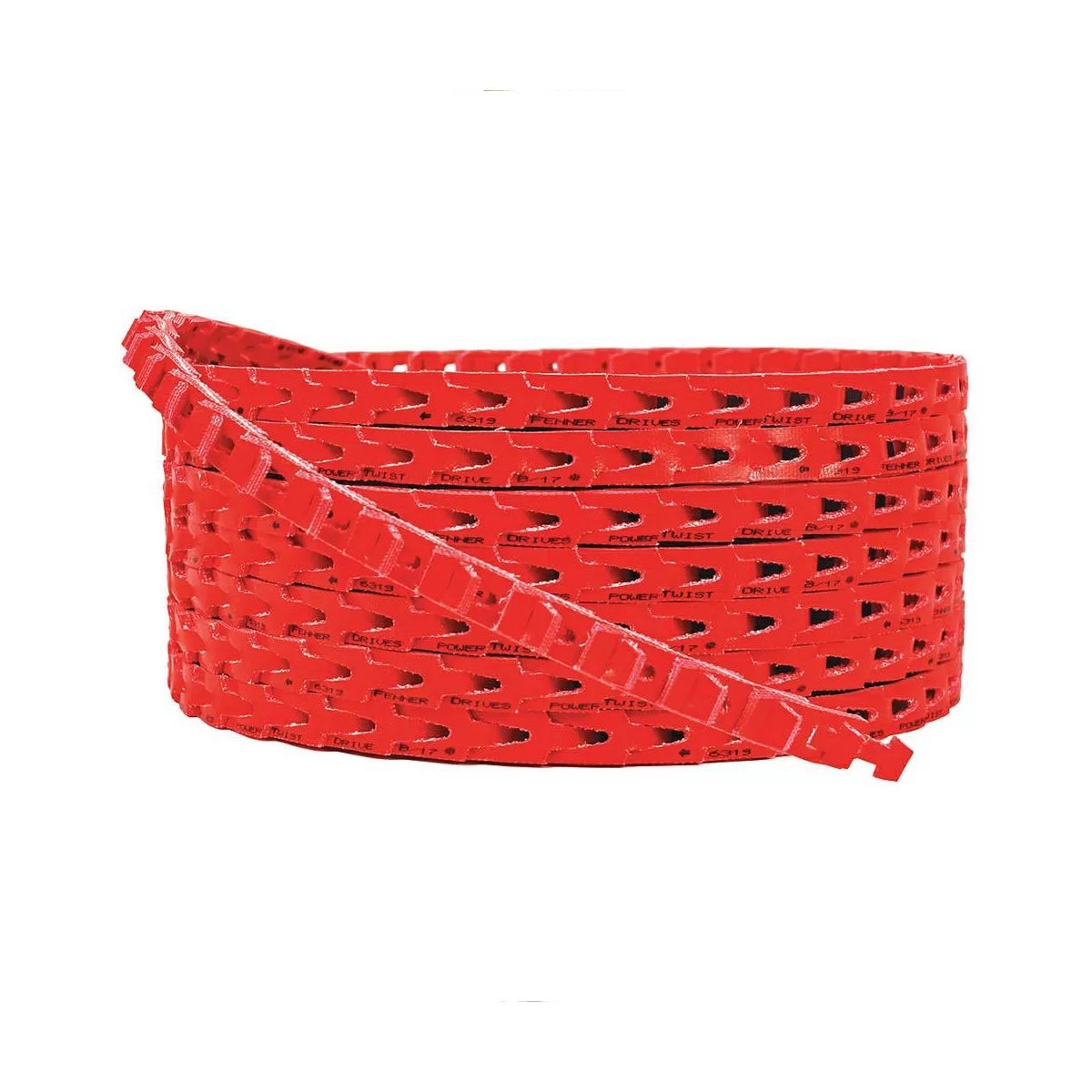

Fenner Power Twist Vbelt 5L 5/8in

QC Part #190371 | MFR # 0405050
$309 99
$309 99
Sale Sold out
Size

View full details
View Related Items
Description
Reviews
Q&A
Documents

More about Fenner Power Twist Vbelt 5L 5/8in

Extend the life of your fan with the PowerTwist Plus V-Belt. Fenner Power Twist V-Belt - 5L 5/8" is a long-lasting, permanent upgrade from traditional rubber V-belts. Made of high-performance polyurethane elastomer reinforced with multiple plies of polyester fabric, it offers high strength and low elongation under load.  With the Fenner PowerTwist Plus V-Belt, you get industry-standard horsepower ratings, superior performance in challenging operating environments and easy installation. PowerTwist Plus V-Belts have the same cross-section dimensions as conventional endless V-belts and can be installed on existing pulleys with no changes in set-up. This means this belt can be used for power transmission or conveying application utilizing B/17/5L section industrial rubber V-belts.

Features

  • High-performance polyester/polyurethane composite technology with the same horsepower ratings as conventional rubber V-belts
  • Oil, chemical and temperature resistant
  • Unique twist-lock design
  • High horsepower
  • May be cut-to-size without any tools
  • Lasts 15 times longer than all other belts
  • Can be twisted at a 90° angle
  • High strength and low elongation under load
  • High resistance to abrasion and shock loads
  • Drop-in permanent upgrade for conventional endless rubber V-belts
  • Easily installed without dismantling drive components
  • Reduced transmitted vibration
  • Withstands extreme temperatures, water, steam, oil, grease & common industrial chemicals & solvents
  • Unique belt construction dampens transmitted motor vibrations, extending the bearing life and reducing noise levels
  • High resistance to abrasion & shock loads

Specifications

  • Suited to Z/10, 3L, A/13, B/17, C/22 & D/32 drives
  • REACH & RoHS compliant
  • Temperature range of -40° F to 200° F
Filter by rating

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
20%
(1)
0%
(0)
0%
(0)
G
Gary
Excellent Innovation

This product allows easy repair of worn fan/alternator belts on tractors with the hydraulic pump connected directly to the front of the engine crankshaft. Turns a messy job into clip, snap, tighten and go! Thank You!

G
Gene
fair

It would have been appreciated if an installation methods advisory had been included with the belts as I have not installed them yet, not understanding how to do it with the limited slack room available on this lathe. I can give the existing belts perhaps 1/2" of slack, beyond that I will have to remove the upper shaft in the transmission, yhe bearing caps of the spindle and lift the whole thing out of the top of the headstock, about half a days work coming out and possibly more going back in. Your web site is also suffering from a total lack of information on the subject.

R
Ruger
So much superior than standard "V" belts

Every machine in my shop has these belts. So easy to work with. I ordered the 5/8" x 72" size for my Canedy Otto flat belt drill press (the driven pulley is 16" "B") & had to take out only 1 link. Vibration was drastically reduced. The QC Supply prices for these belts are the best on the market. Other suppliers are asking $10+ per foot. QC Supply's price is about $8 per foot. Thanks guys...

C
Chuck
Super Easy

I switched to these belts several years ago. No need to keep several diferent sizes on hand, cuts vibration and there is no need to take the machine apart if there is a bunch of obstructions and brackets in the way (thread the belt through and connect it on the pulley).

R
Ray
Great Product

This reduced the vibration in my mill/drill dramatically. Helped improve the surface finish.

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
20%
(1)
0%
(0)
0%
(0)
G
Gary
Excellent Innovation

This product allows easy repair of worn fan/alternator belts on tractors with the hydraulic pump connected directly to the front of the engine crankshaft. Turns a messy job into clip, snap, tighten and go! Thank You!

G
Gene
fair

It would have been appreciated if an installation methods advisory had been included with the belts as I have not installed them yet, not understanding how to do it with the limited slack room available on this lathe. I can give the existing belts perhaps 1/2" of slack, beyond that I will have to remove the upper shaft in the transmission, yhe bearing caps of the spindle and lift the whole thing out of the top of the headstock, about half a days work coming out and possibly more going back in. Your web site is also suffering from a total lack of information on the subject.

R
Ruger
So much superior than standard "V" belts

Every machine in my shop has these belts. So easy to work with. I ordered the 5/8" x 72" size for my Canedy Otto flat belt drill press (the driven pulley is 16" "B") & had to take out only 1 link. Vibration was drastically reduced. The QC Supply prices for these belts are the best on the market. Other suppliers are asking $10+ per foot. QC Supply's price is about $8 per foot. Thanks guys...

C
Chuck
Super Easy

I switched to these belts several years ago. No need to keep several diferent sizes on hand, cuts vibration and there is no need to take the machine apart if there is a bunch of obstructions and brackets in the way (thread the belt through and connect it on the pulley).

R
Ray
Great Product

This reduced the vibration in my mill/drill dramatically. Helped improve the surface finish.
