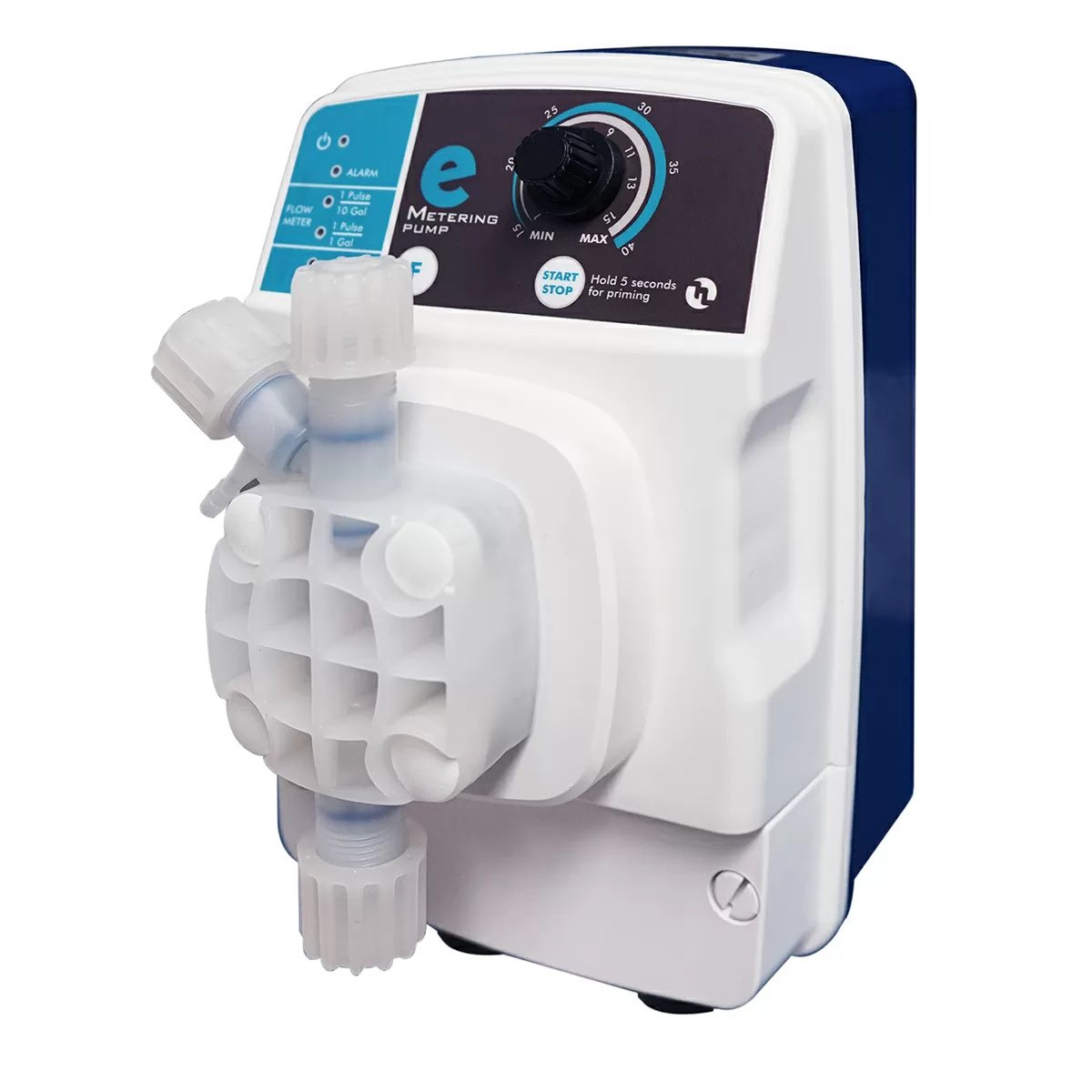

More about Etatron eMP Livestock Water Treatment Metering Pump
The perfect answer for your water treatment needs, the eMP Livestock Water Treatment Metering Pump is simple to use, highly reliable and compact in size.
Features
- Automatically adjusts injection speed to the water flow for proportional delivery
- Dual scale dial for easy stroke adjustment
- Operates with 1 pulse per 1 gallon or 1 pulse per 10 gallon water meter
- Superior diaphragm technology
- No squeeze tubes that can break
- PVDF solenoid head for enhanced chemical resistance
- IP65 acid resistance housing
- Self priming, the pump head is equipped with a manual air bleed for fast priming
- Turns off automatically when the chemical container is empty
- Pump will turn OFF if pressure exceeds 145 PSI
Specifications
- Flow: 0.26 GPH
- Max Pressure: 145 PSI
- Weight: 6.7 lbs
- Stroke Output (ML): 0.09 @ 145 PSI (10 Bar)
- Max Pulses Per Min: 180
- Mount Type: Wall mount
- Voltage: 120V
Wetted Parts
- PVDF pump head
- Teflon® (PTFE) diaphragm
- Aflas® (TFE/P) seals
- Polyethylene (PE) discharge tubing
- PVC suction tubing
- Ceramic Ball valves
There are no reviews for this product.
- eMP Water Treatement Pump Manual
- eMP Water Treatment Pump Flyer
- eMP Water Treatment Pump Installation Instructions
- eMP Water Treatment Pump Quick Start Guide
- eMP Water Treatment Pump Spec Sheet
- eMP Water Treatment Pump Troubleshooting Section A
- eMP Water Treatment Pump Rebuild Instructions
- eMP Water Treatment Pump Troubleshooting Section B
- eMP Water Treatment Pump Troubleshooting Section C
