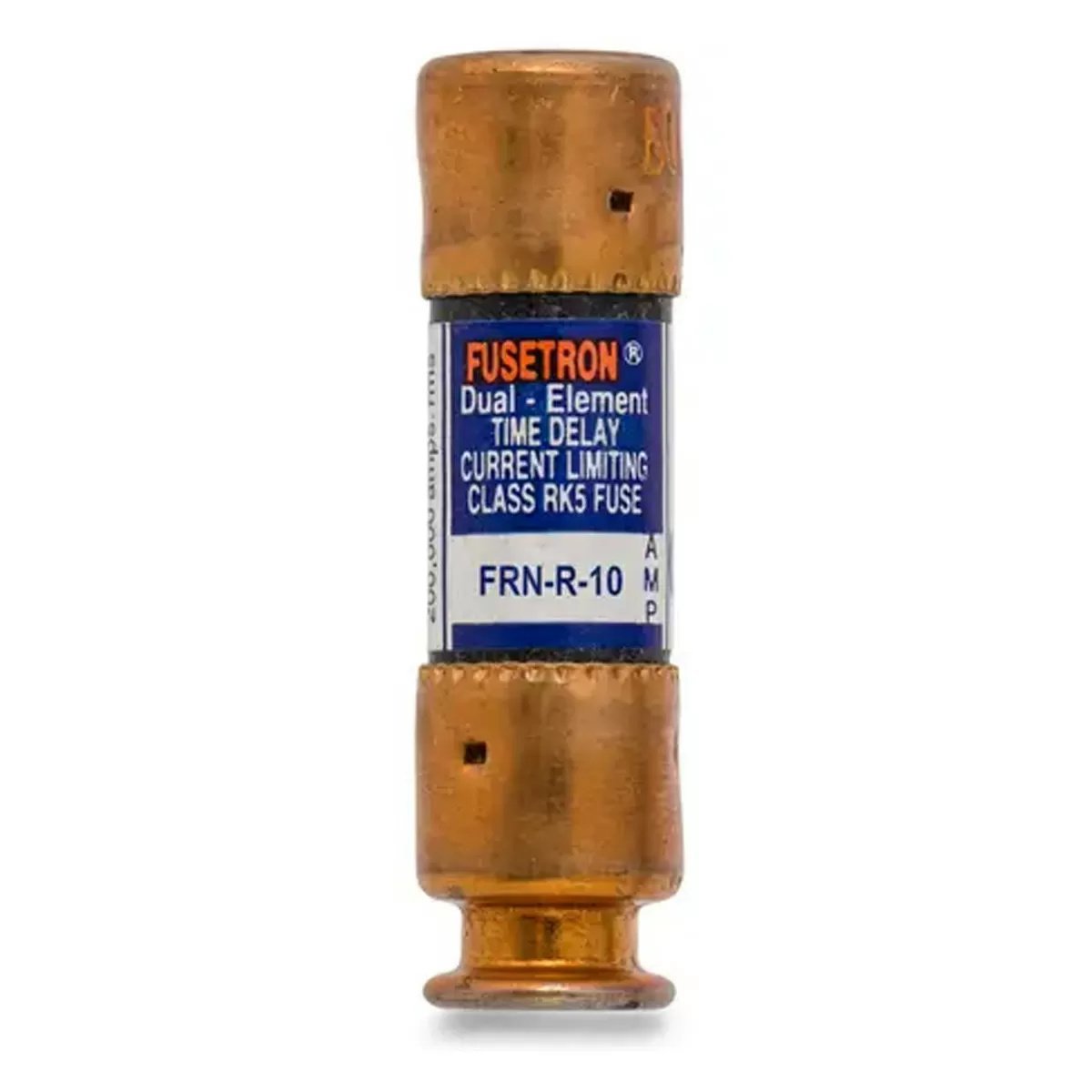

Eaton/Bussmann Heavy-Duty Time Delay Fuse - 10 Amp

The FRN-R-10 - Eaton/Bussmann Heavy-Duty Time Delay Fuse - 10 Amp is an RK5 fuse that protects against motor overload, ground faults, and short circuits. When sized correctly it helps protect motors from burnout caused by overloads and single-phasing.

Reduces the risk of motor burnout resulting from single-phasing in three-phase systems. Simplifies and improves blackout prevention (selective coordination). Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance short-circuit and overload protection.

Overload protection is provided by the overload element, which holds an overload five times greater than the ampere rating of the fuse for a minimum of ten seconds.

Features

• Provides motor overload, ground fault & short-circuit protection
• Helps protect motors against burnout from overloads
• Helps protect motors against burnout from single-phasing on 3-phase systems
• Simplifies & improves blackout prevention (selective coordination)
• Dual-element fuses can be applied in circuits subject to temporary motor overloads & surge currents to provide both high performances short-circuit & overload protection
• The overload element provides protection against low-level overcurrent of overloads & will hold an overload that is 5 times greater than the ampere rating of the fuse for a minimum of 10 seconds

Specifications

• FRN-R-10
• Authentic Cooper/Bussmann Product
• Class Rk5
• 10 Sec Time Delay (At 500% Rated Load) Dual Element Characteristics
• 250 VAC/125 VDC
• 10 Amps
• Interrupting Rating 200,000 Amps (Symmetrical) 20,000 Amps (DC)
• Ferrule Terminal
• Diameter: 0.56"
• Length: 2"
• Approval UL 248-12 CSA CE
• Fusetron® brand
• Frn-R Model
• Current Limiting
• Bussmann series solutions comply with major industrial standards and agency requirements such as BS, IEC, DIN, UL, NEMA, SAE, CSA, CE, C-UL, etc
• Manufactured at facilities that are ISO 9000 certified
• Type FRN-R Cartridge Fuse
• Fusetron Time Delay
