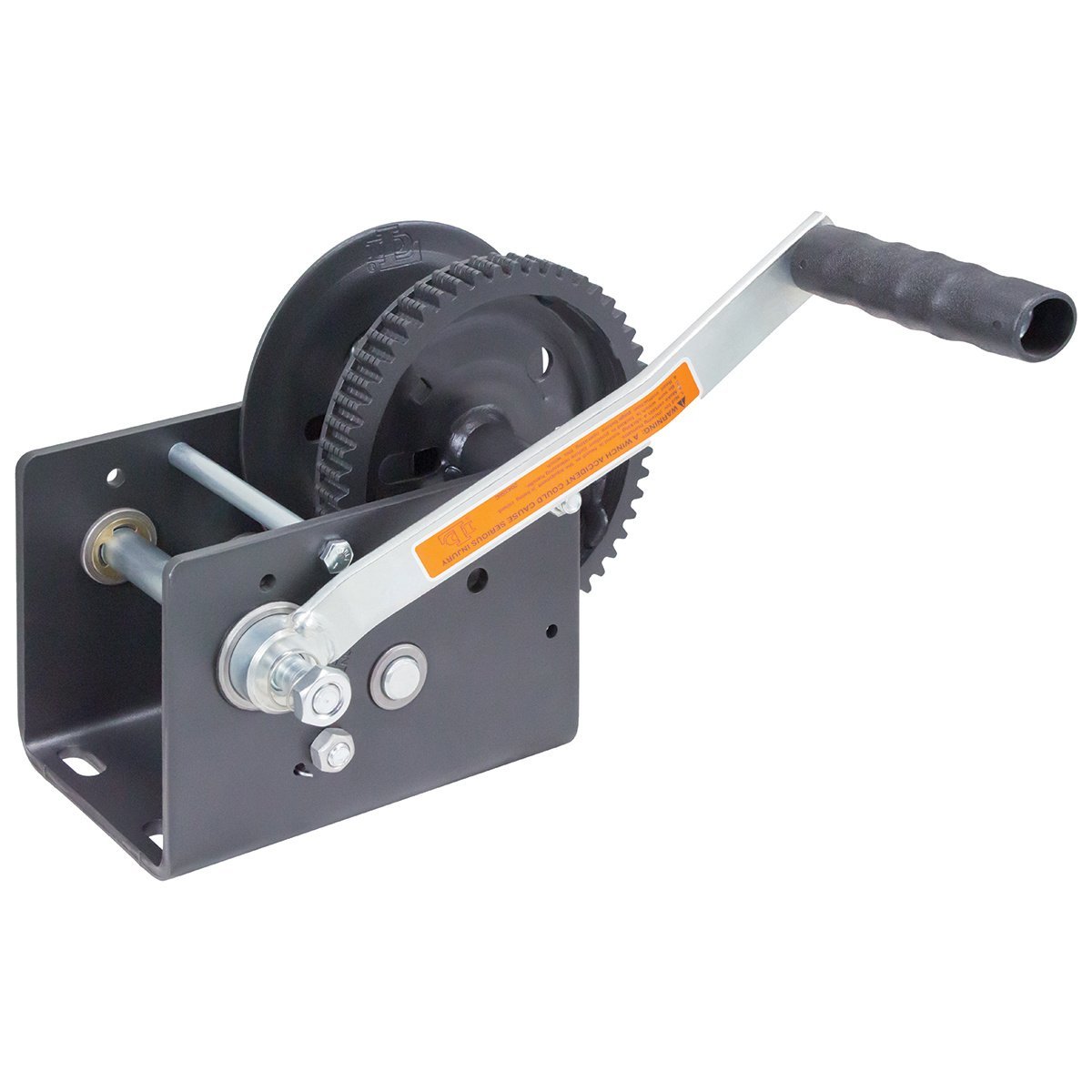

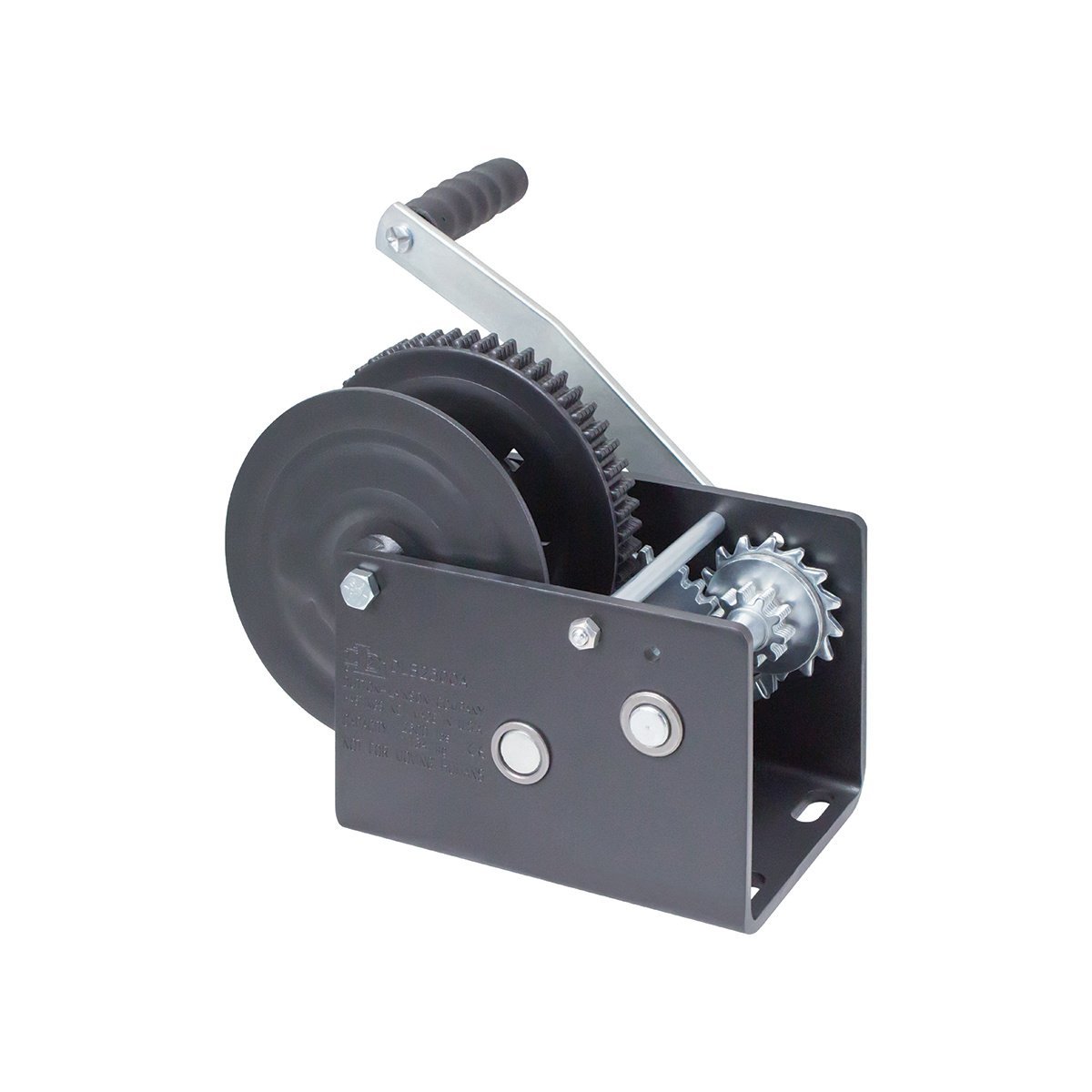

Dutton Lainson® Brake Winch - 2,500 lb. Load Capacity

QC Part #91144 | MFR # 15722
$149 99
$149 99
Sale Sold out

View full details
View Related Items
Why QC Supply?
Description
Q&A
Documents

More about Dutton Lainson® Brake Winch - 2,500 lb. Load Capacity

This Dutton-Lainson brake winch is designed for horizontal pulling and vertical lifting and has a 2,500 lb. capacity. The built in fully automatic friction brake holds the load exactly in position when raising and lowering. The hardware has a powder-coated, zinc plated TUFFPLATE® finish. A 9-3/8" handle with ergonomic handle grip is included. Color may vary. Made in the U.S.A. This winch requires a 175 lb. minimum operating load to function properly.

Features/Benefits

  • 2,500 lb. capacity
  • 175 lb. minimum load required for winch to operate properly
  • Laminated, high-carbon steel gears for longer life
  • All gears in models DLB800A through B3503 are heat treated for increased strength
  • Permanently lubricated bearings on drive shafts are maintenance-free
  • Heavy-duty steel handles with ergonomic molded grips
  • Drive shaft gears are copper brazed for durability
  • Rigid, welded reel construction for added strength
  • Load matched gear ratios for easier cranking
  • All plated parts are zinc-plated TUFFPLATE® finish
  • Slotted mounting holes for easy installation
  • Heavy gauge embossed and reinforced steel bases for extra strength
  • Meets ASAE Safety Standard S361.3
  • Made in the USA
    • QC Part # Load
    Capacity    		 Min
    Load    		 Hub
    Diameter    		 Gear
    Ratio    		 Handle
    Length    		 Reel
    Capacity    		 Weight
    91140 350 lbs 50 1 3.2:1 7" 5/32" x 58' 7 lbs
    91141 800 lbs 50 1 7/8 4.4:1 7" 3/16" x 68' 8 lbs
    91142 1,200 lbs 50 2 1/2 5.4:1 7" 7/32" x 73' 10 lbs
    91109 1,200 lbs 75 2 1/2 4:1 12-1/4" 7/32" x 57' 10 lbs
    91143 1,500 lbs 75 2 1/2 5.4:1 9 3/8" 1/4" x 63' 12 lbs
    91144 2,500 lbs. 175 2 1/2 17.3:1 9 3/8" 9/32" x 44' 16 lbs
