DURAMotor

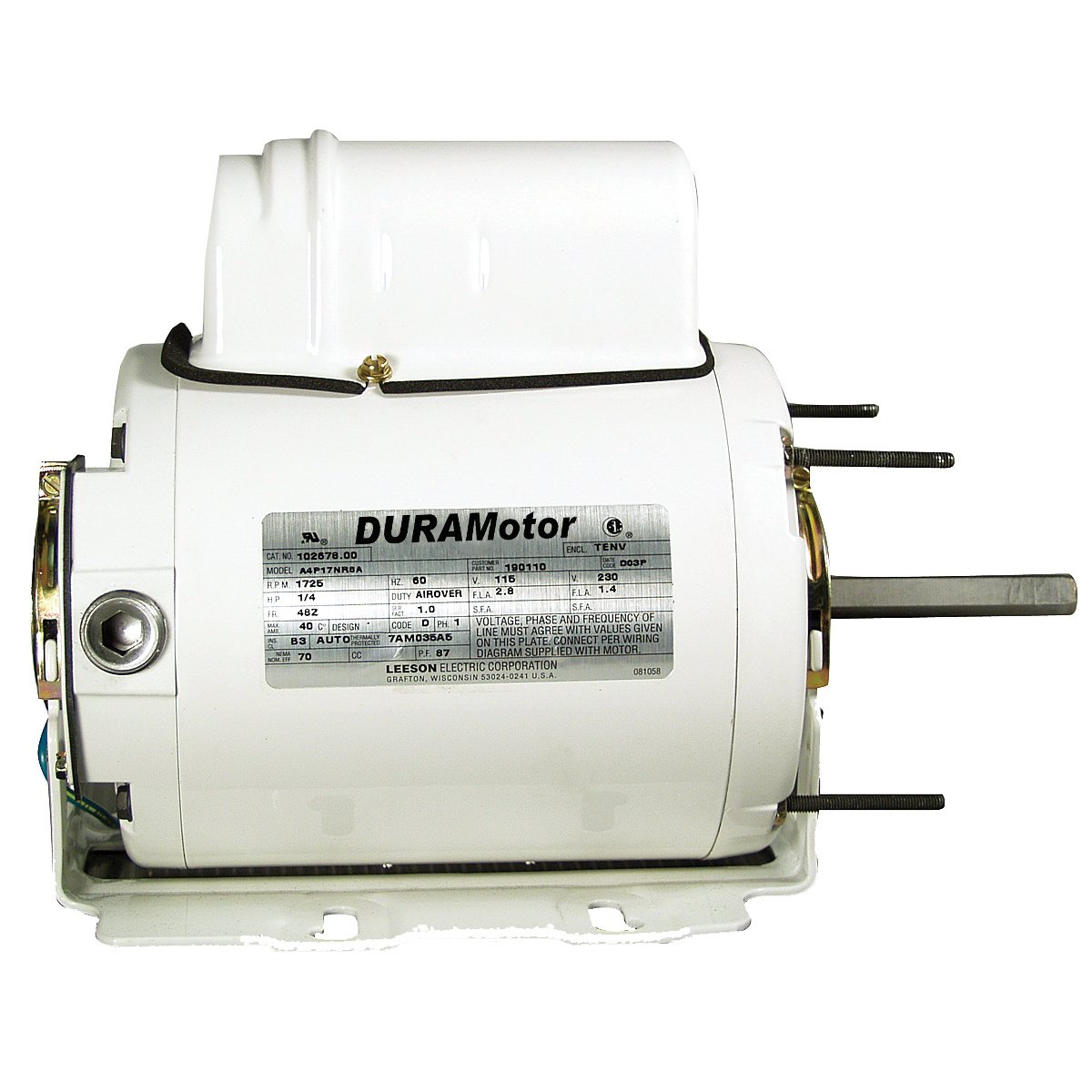

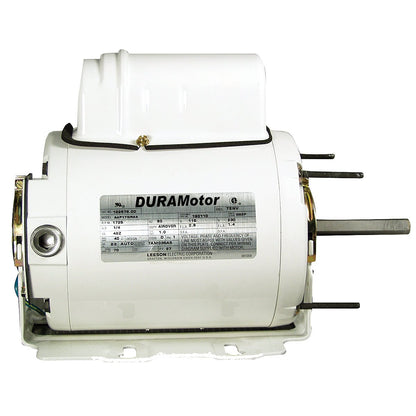

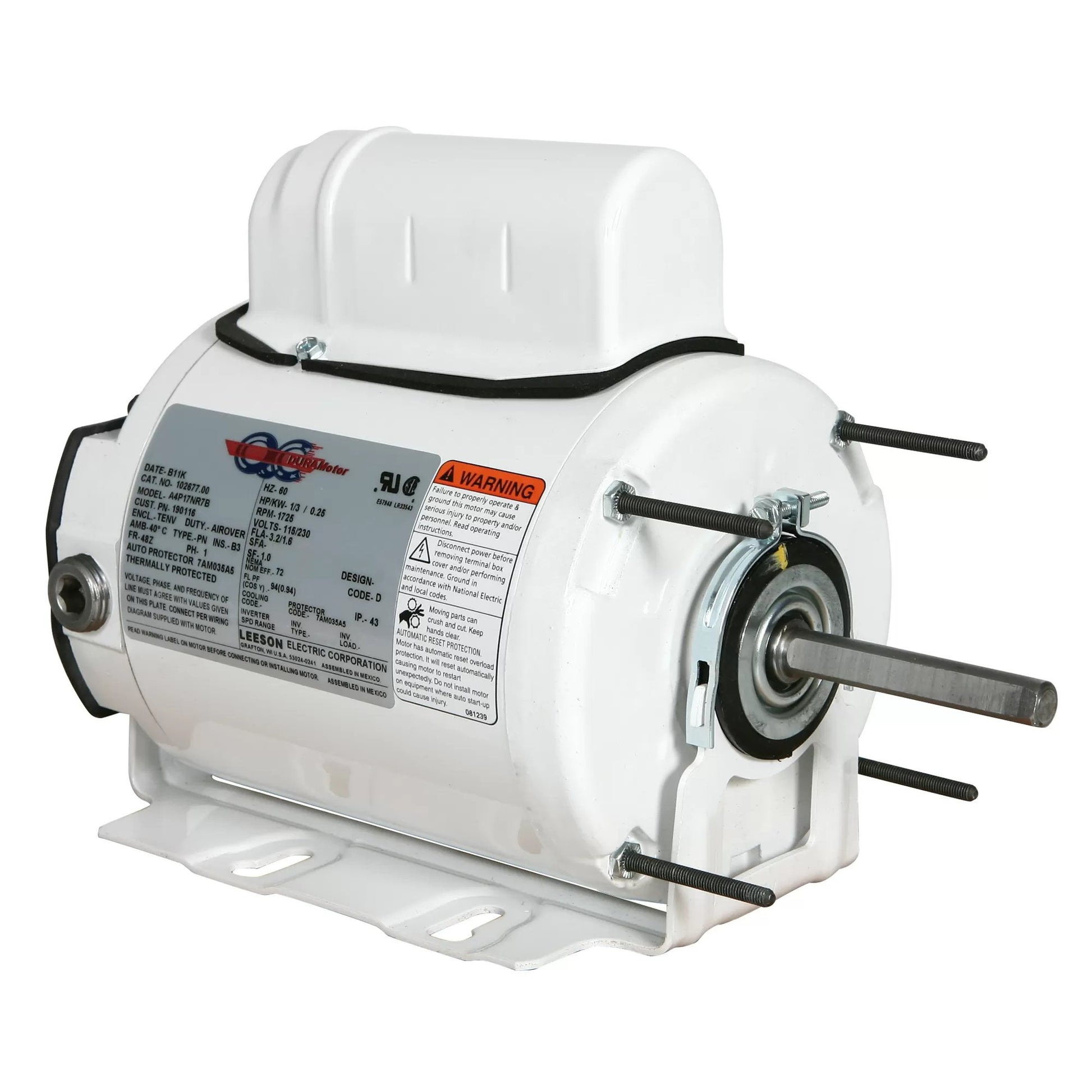

DURAMotor Variable or Single Speed Ventilation Fan Motors

QC Part #190116
$276 99
$276 99 $299.99
Sale Sold out
Horsepower
RPM
Frame

View full details
View Related Items
Description
Reviews
Q&A
Documents

More about DURAMotor Variable or Single Speed Ventilation Fan Motors

Made exclusively for QC Supply by Leeson, these versatile fan DURAMotors can be used in fans in cattle, swine, or poultry barns. Energy efficient, these direct drive motors include a corrosion-resistant finish for high-moisture applications. Inexpensive to operate, they are lubricated with high-temperature lubricant.

Features/Specifications

  • Totally enclosed air over
  • 2.875" length shaft with 2 flats
  • Variable speed, except forQC Part #190145, which is single speed
  • Auto overload
  • Direct drive
  • Sealed ball bearing
  • Cushion base, except forQC Part #190145, which has a rigid base
  • Quiet-running, high-temperature lubricant
  • Corrosion-resistant finish for tough applications
QC Part # Model # HP RPM Shaft Volts Frame Amps Approx.
Weight
190110 PR010400 1/4 1,725 1/2" or 5/8" 115/230 K48Z 2.8/1.4 21 lbs.
190115 PR010399 1/3 1,125 1/2" or 5/8" 115/230 K48Z 3.6/1.8 27 lbs.
190116 PR010401 1/3 1,725 1/2" or 5/8" 115/230 K48Z 3.2/1.6 23 lbs.
190121 PR010398 1/2 1,125 1/2" or 5/8" 115/230 K48Z 5.6/2.8 29 lbs.
190122 PR010397 1/2 1,725 1/2" or 5/8" 115/230 L48Z 4.4/2.2 27 lbs.
190123 PR010397 1/2 1,725 1/2" or 5/8" 115/230 K56Z 4.4/2.2 27 lbs.
190145* 104022 1/2 850 5/8" 115/230 K56Z 6.6/3.3 32 lbs.

*Single speed only with a rigid base. Speed control NOT included.
