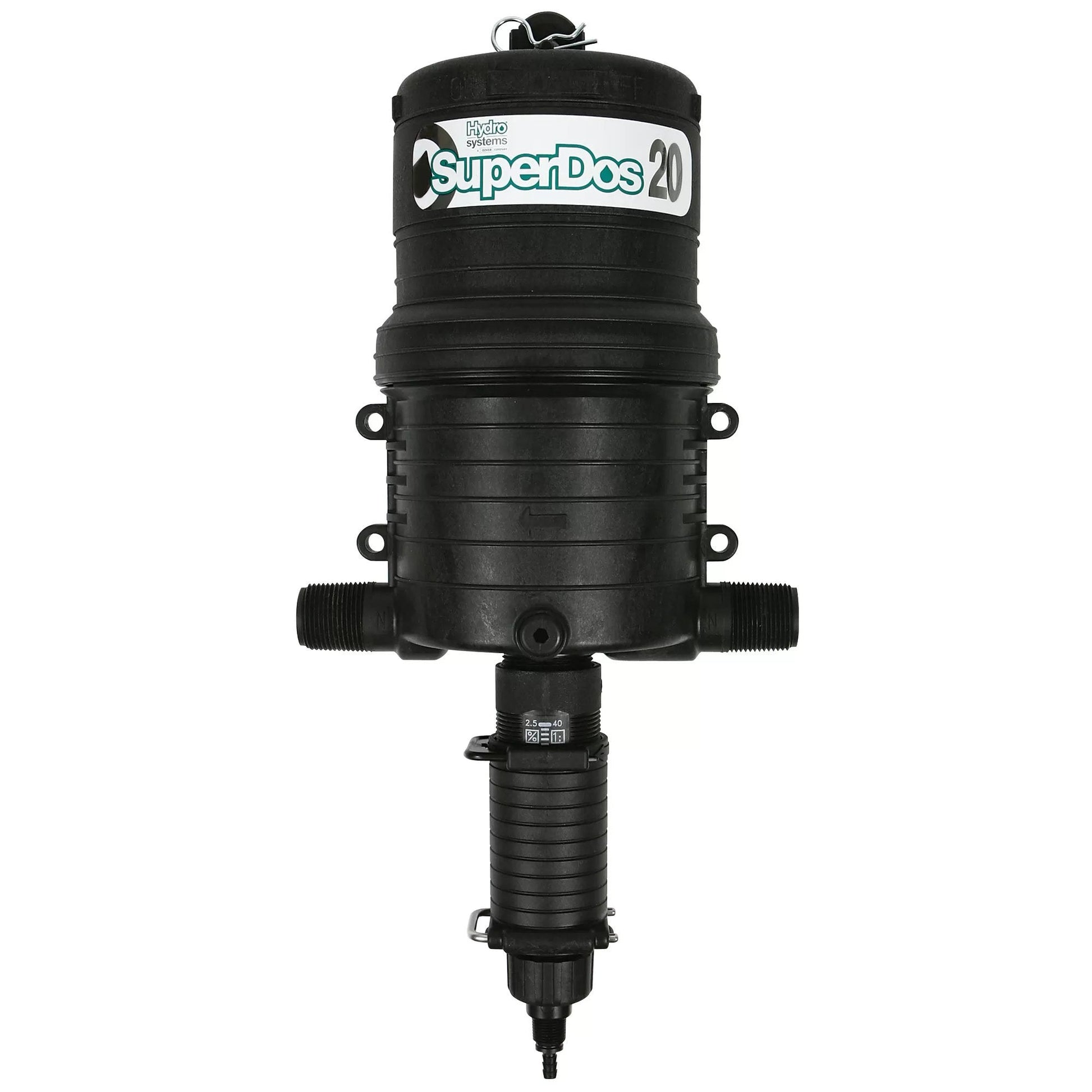

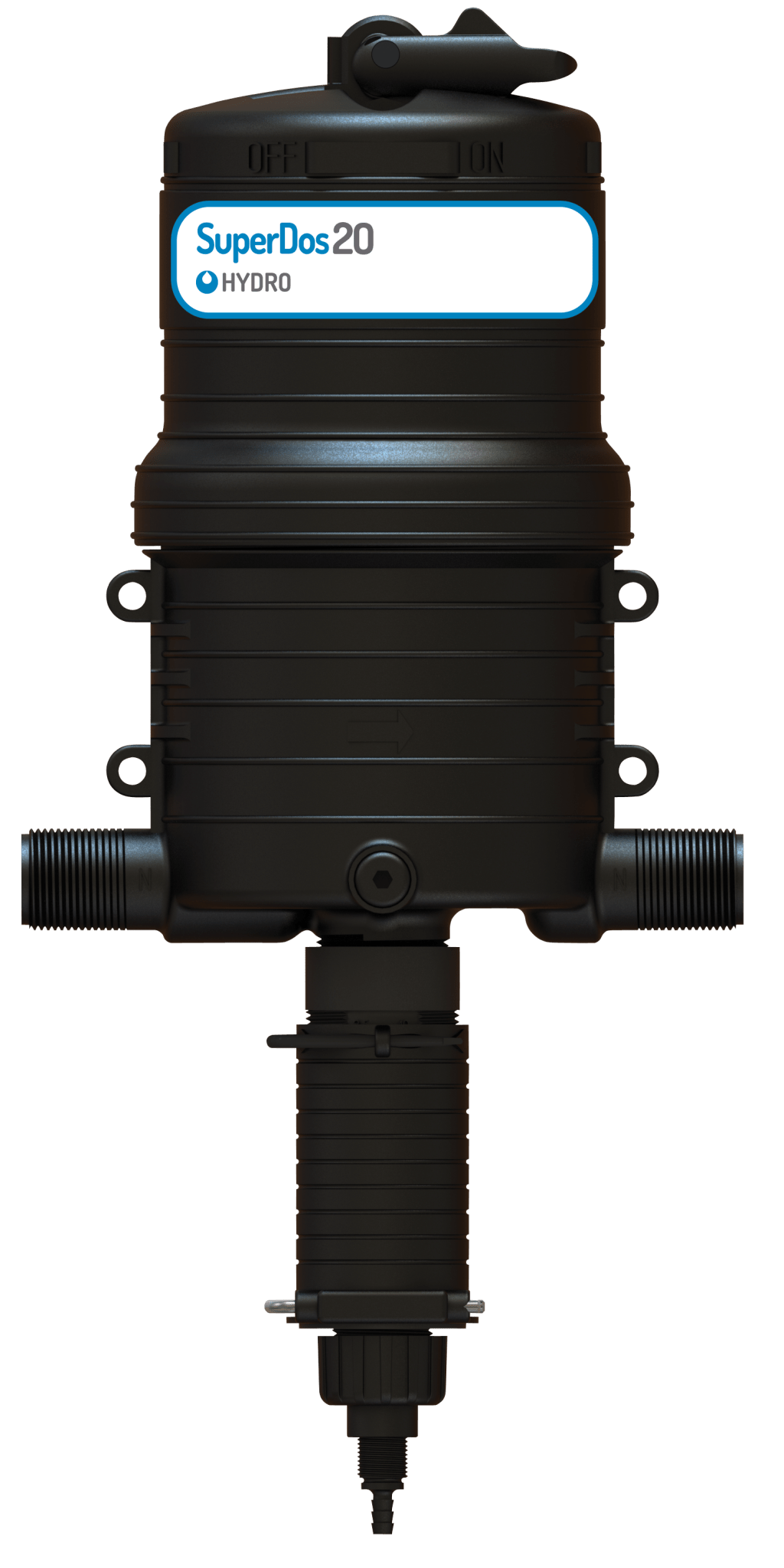

Dosmatic® SuperDos® 20 - 2.5%

Dosmatic SuperDos mid-high flow, water-driven proportional injectors are a low-cost alternative to traditional electric technology. Unlike traditional electric pumps, the SuperDos Injectors eliminate the need for electricity and can operate in remote areas.

They are easy to install and maintain, making them ideal for mid-high-flow injection applications.

Features/Advantages

• Precise additive injection; proportional positive displacement ensures that just the right amount of chemical is injected each and every time regardless of pressure & flow
• Safe and cost-effective; patented one-way mixing chamber gasket prevents chemical contact with the motor piston
• Durable body construction; the engineered proprietary composite material withstands severe weather, the chemicals used for injection & higher operating pressures

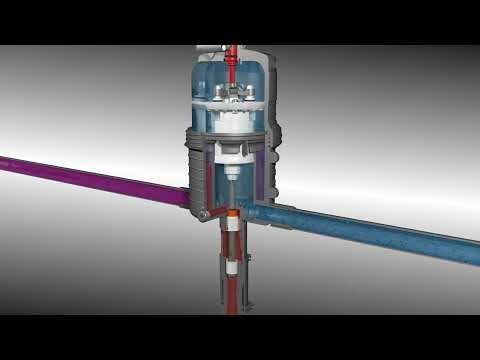

• New mixing chamber design ensures more complete mixing of water & injected chemicals before leaving the unit
• Existing connections for a remote discharge kit
• Standard NPT inlet & outlets eliminate the need for separate connections kits
• Same 3 lower-end service parts exchange between SuperDos and Advantage models

Specifications

• Flow Rate: 0.04 GPM to 20 GPM
• Feed Ratio: 0.20% to 2.5% (1:500 - 1:40)
• Operating Pressure: 5100 PSI
• Inlet/Outlet: 1" NPT
• Maximum Temp: 100 F
• Minimum Temp: 34 F
• Housing Material: Proprietary Engineered Composite
• Weight: 11 lbs.

Injector Includes: Suction Hose & Filter, Mounting Bracket, Wear Parts Kit, Operating Manual

Recommended Accessories: 140 Mesh Filter, Check Valve, Pressure Regulator, Flow Restrictor

Applications

• Food processing treatments where disinfecting and surface cleaning are needed
• Perfect for wettable powders and liquid chemicals
• Firefighting & prevention applications
• Horticulture treatments
• Metal processing & parts wash treatments
• Pest control applications
• Odor misting control
• Vehicle wash treatments
• Water treatment

Looking for parts? We carry most repair kits and parts for the MiniDos and SuperDos lines of Injectors. If you can't find what you need, ask our sales staff to find your part.
