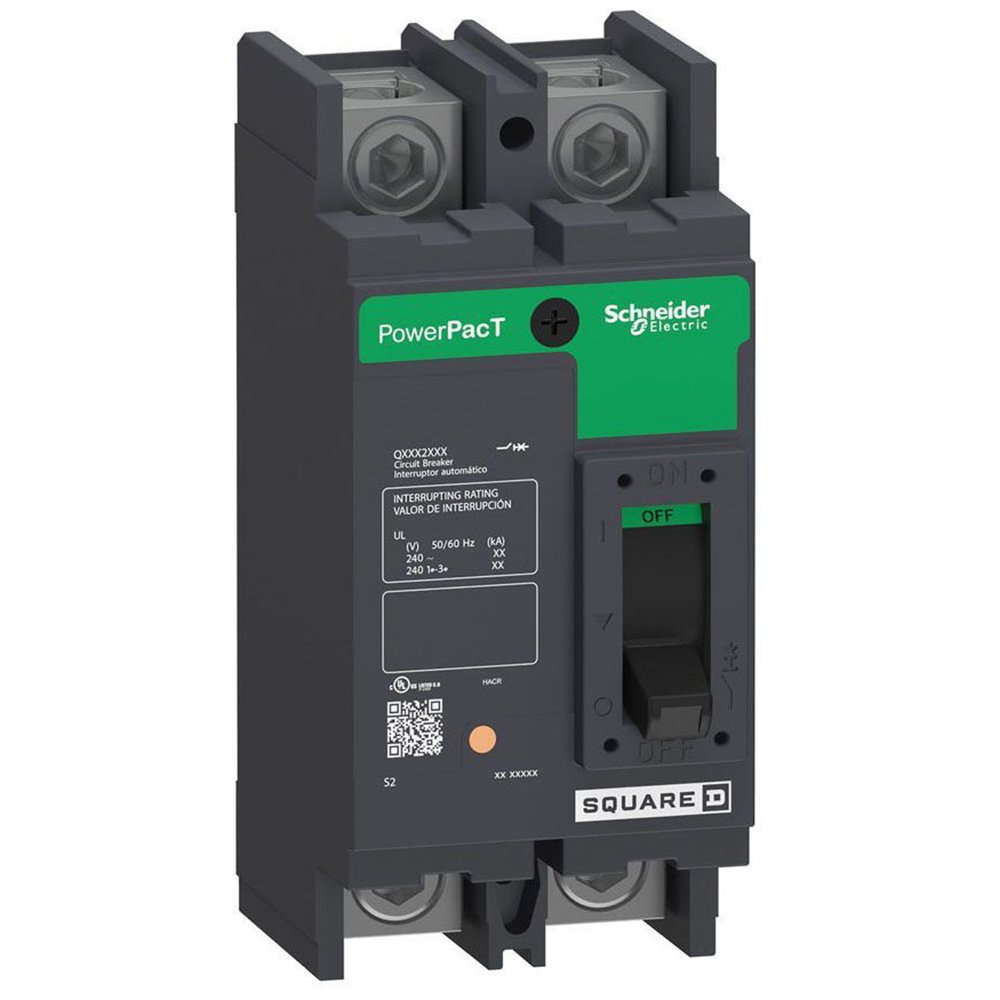

Circuit Breaker - 2 Pole, 240VAC

This PowerPacT 2 Pole 240 VAC Circuit Breaker was designed for overcurrent protection. PowerPacT Q circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal-magnetic trip protection.

All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Features

• PowerPacT Q 200A, 240VAC 2 poles unit mount molded case circuit breaker
• Designed for overcurrent protection & switching on AC systems
• PowerPacT Q circuit breakers contain thermal (overload) & magnetic (short circuit) sensing elements in each pole
• Breaker has interrupting ratings (AIR) of 10kA 240 VAC & has an 80% rating
• Main applications are Industrial markets & OEM Commercial

Specifications

• Line Rated Current: 200 A
• Number of Poles: 2
• Breaking Capacity: 10 kA 120/208 V AC 50/60 Hz UL; 10 kA 240 V AC 50/60 Hz UL
• Trip Unit Technology: Thermal Magnetic
• Mechanical Durability: 1,000 cycles loaded; 5,000 cycles no load
• Dimensions: 6.47" H x 3" W x 3.93" D
• Product Certifications: UL, CSA & NOM
• 18-month manufacturer warranty
