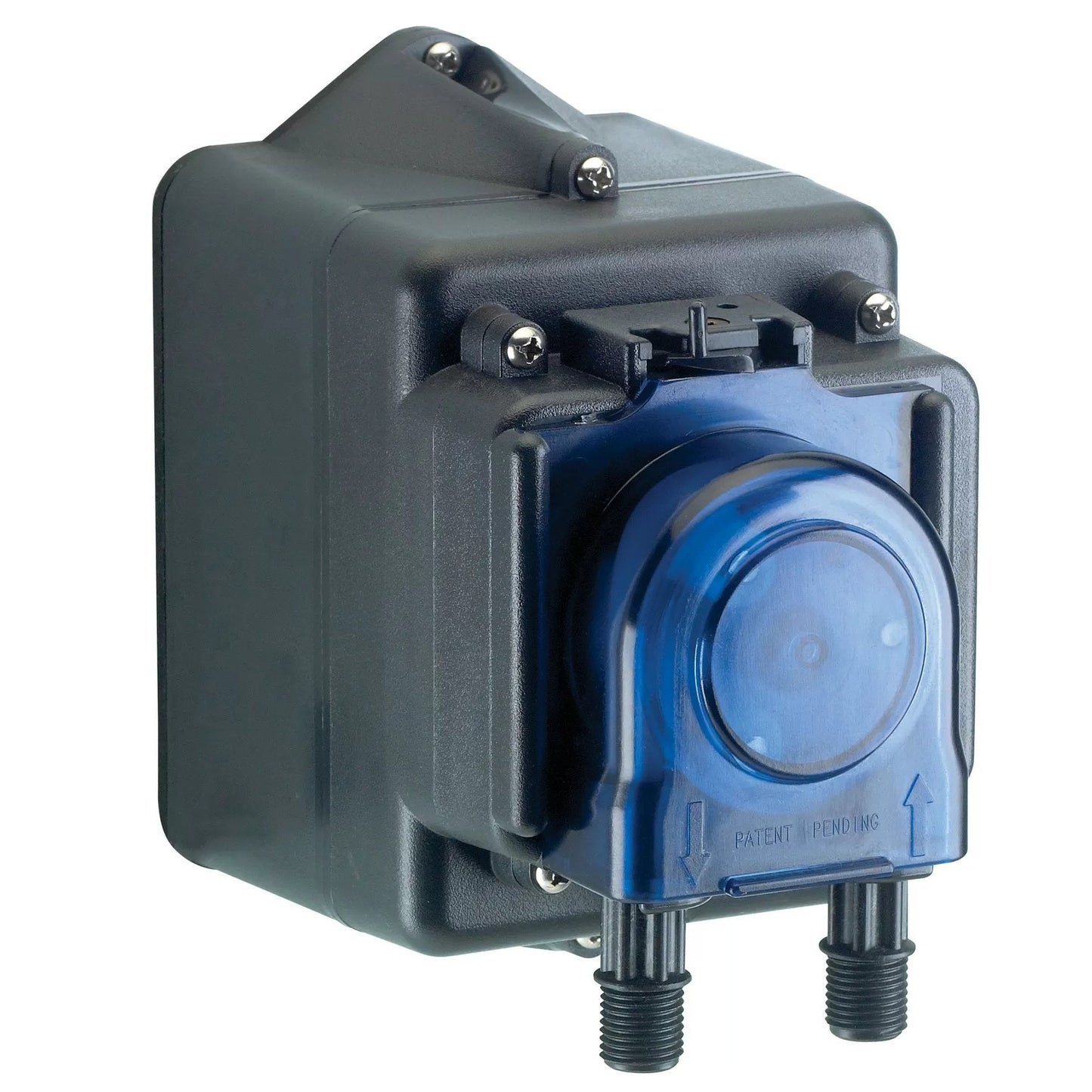

Stennicator 1:128 Injector - 2.7 GPM

The Stennicator Pump is used primarily to treat water with sanitizers, disinfectants, nutrients and medications. The pump injects at a fixed rate of 1 oz/gal for water flow rates up to 2.7 GPM (162 gal/hr) at pressures up to 80 PSI. It is actuated wit ha signal sent from a dry contact water meter (not included).

Water meters wired to a house controller to tally water consumption are suited activate the Stennicator, which has an internal signal splitter. There are 3 settings to be used with water meters - a 1 pulse/gal (ppg), 10 ppg and 1 ppl (Liter). The pump also has a prime mode and a stand-by mode. A second pump can be added to accommodate flows up to 5.4 GPM (325 gal/hr).

Benefits

• Injects directly into line, eliminating water flow restriction
• Easily serviced with effortless tube replacement
• Stock solution does not contact any moving parts
• Unaffected by water quality, scale or solids
• Solid, one-piece tube construction
• UL and cUL listed

Specifications

• Voltage: 120V/60Hz
• Maximum Operating Temp: 104° F
• Amp Draw: 1.7 @120V
• Pump Dimensions: 5.3" L x 3.6" W x 5.8" H
• Shipping Weight: 4 lbs.

Each Stennicator Includes

• [3] 1/4" Connecting Nuts
• [3] 1/4" Ferrules
• [1] Injection Check Valve
• [1] Weighted Strainer
• [1] 20' Roll of 1/4" White Stanoprene Suction/Discharge Tubing
• [1] Additional Pump Tube
• [1] Installation Manual

Digital Pulse Meters Available.
