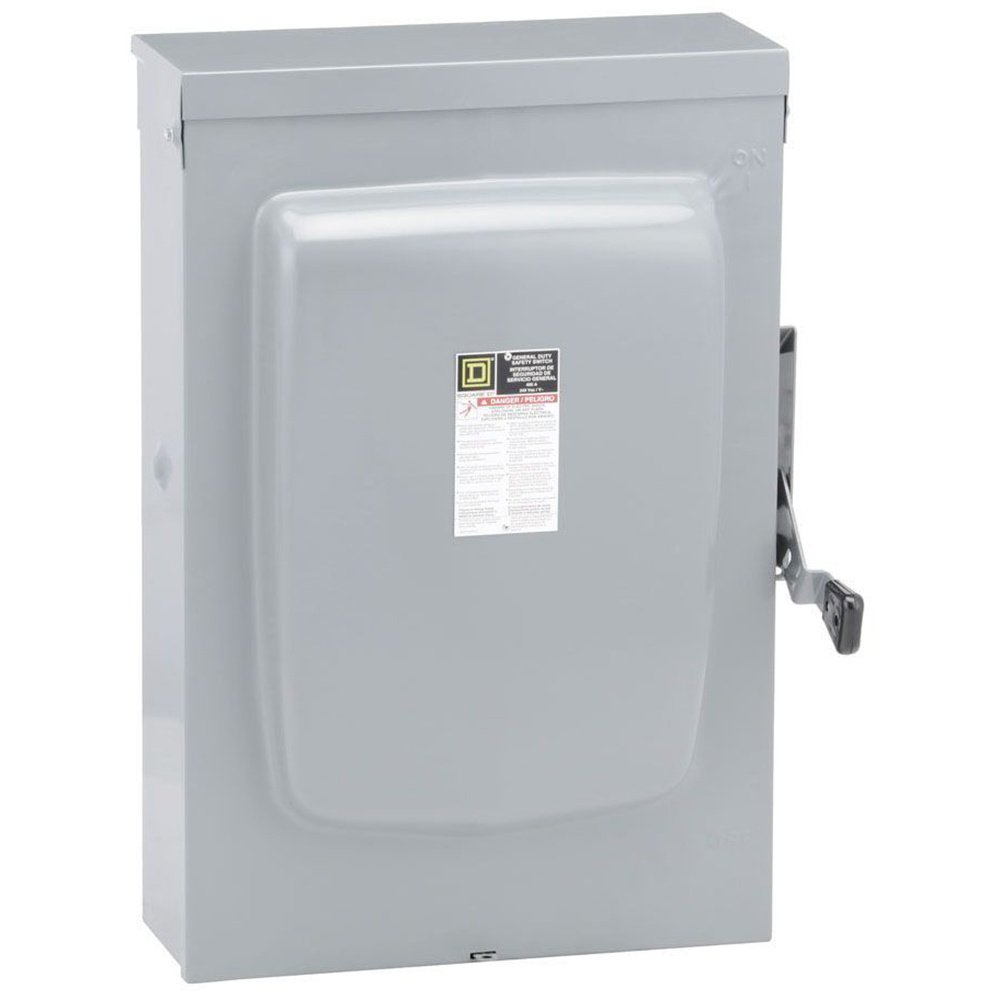

This 240V Rain-Tight General-Duty Safety Switch was designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable.

General duty safety switches are UL-Listed and meet or exceed the NEMA Standard KS1. This Single Throw Safety Switch has a rated current of 400A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short circuit rating of 100kA, and is surface mounted.

This switch has lugs for an electrical connection which will accept AWG 10 AWG 6, aluminum/copper. This switch is certified to UL standards. General Duty safety switches come with an 18-month manufacturer warranty.

Specifications

• Phase: 3-phase
• Current Rating: 400 A
• Voltage Rating: 240 VAC
• Enclosure Rating: NEMA 3R
• Fuse Type: H, K, J or R
• Mounting Type: Surface
• Wiring Configuration: 3-wire
• Dimensions: 10.13" D x 22.25" W x 30.63" H
• 2 poles
• 18-month manufacturer warranty
